Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMS320F28069UPNTIC MCU 32BIT 256KB FLASH 80LQFP |
319 |
|
Datasheet |
80-LQFP | C2000™ C28x Piccolo™ | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 90MHz | CANbus, I2C, McBSP, SCI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 40 | 256KB (128K x 16) | FLASH | - | 50K x 16 | 1.71V ~ 1.995V | A/D 12x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
SPC563M64L5COARIC MCU 32BIT 1.5MB FLASH 144LQFP |
1,496 |
|
Datasheet |
144-LQFP | SPC56 | Tape & Reel (TR) | Active | Not Verified | e200z3 | 32-Bit Single-Core | 80MHz | CANbus, EBI/EMI, LINbus, SCI, SPI, UART/USART | DMA, POR, PWM, WDT | 80 | 1.5MB (1.5M x 8) | FLASH | - | 94K x 8 | 1.14V ~ 1.32V | A/D 32x12b | Internal | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
CY8C5666AXI-LP004IC MCU 32BIT 64KB FLASH 100TQFP |
702 |
|
Datasheet |
100-LQFP | PSOC™ 5 CY8C56LP | Tray | Active | Not Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 67MHz | I2C, LINbus, SPI, UART/USART, USB | CapSense, DMA, LCD, POR, PWM, WDT | 62 | 64KB (64K x 8) | FLASH | 2K x 8 | 16K x 8 | 1.71V ~ 5.5V | A/D 2x12b; D/A 4x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC24EP512GU814-E/PHIC MCU 16BIT 512KB FLASH 144TQFP |
180 |
|
Datasheet |
144-TQFP | PIC® 24EP | Tray | Active | Not Verified | PIC | 16-Bit | 60 MIPs | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 122 | 512KB (170K x 24) | FLASH | - | 24K x 16 | 3V ~ 3.6V | A/D 32x10b/12b | Internal | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
MSP430F167IPMRIC MCU 16BIT 32KB FLASH 64LQFP |
1,619 |
|
Datasheet |
64-LQFP | MSP430x1xx | Tape & Reel (TR) | Active | Verified | MSP430 CPU16 | 16-Bit | 8MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 48 | 32KB (32K x 8 + 256B) | FLASH | - | 1K x 8 | 1.8V ~ 3.6V | A/D 8x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
MSP430F1491IPMRIC MCU 16BIT 60KB FLASH 64LQFP |
3,358 |
|
Datasheet |
64-LQFP | MSP430x1xx | Tape & Reel (TR) | Active | Verified | MSP430 CPU16 | 16-Bit | 8MHz | SPI, UART/USART | POR, PWM, WDT | 48 | 60KB (60K x 8 + 256B) | FLASH | - | 2K x 8 | 1.8V ~ 3.6V | Slope A/D | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
STM32F469ZIT6IC MCU 32BIT 2MB FLASH 144LQFP |
1,265 |
|
Datasheet |
144-LQFP | STM32F4 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 180MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | 106 | 2MB (2M x 8) | FLASH | - | 384K x 8 | 1.7V ~ 3.6V | A/D 20x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MIMXRT106FCVL5BIC MCU 32BIT 128KB ROM 196MAPBGA |
3,856 |
|
Datasheet |
196-LFBGA | RT1060 | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 528MHz | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | 127 | - | External Program Memory | - | 1M x 8 | 3V ~ 3.6V | A/D 20x12b | External, Internal | -40°C ~ 105°C (TJ) | - | - | Surface Mount | ||
|
R7FA6M3AH3CFB#AA0IC MCU 32BIT 2MB FLASH 144LFQFP |
552 |
|
Datasheet |
144-LQFP | RA6M3 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 120MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, SCI, SPI, UART/USART, USB | DMA, LVD, POR, PWM, WDT | 124 | 2MB (2M x 8) | FLASH | 64K x 8 | 640K x 8 | 2.7V ~ 3.6V | A/D 22x12b SAR; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
|
MSP430F2418TPMIC MCU 16BIT 116KB FLASH 64LQFP |
169 |
|
Datasheet |
64-LQFP | MSP430F2xx | Tray | Active | Verified | MSP430 CPU16 | 16-Bit | 16MHz | I2C, IrDA, LINbus, SCI, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 48 | 116KB (116K x 8 + 256B) | FLASH | - | 8K x 8 | 1.8V ~ 3.6V | A/D 8x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
R5F523W8CDLN#U0IC MCU 32BIT 512KB FLASH 83TFLGA |
0 |
|
Datasheet |
83-TFLGA | RX23W | Tray | Active | Not Verified | RXv2 | 32-Bit Single-Core | 54MHz | CANbus, I2C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG | DMA, LVD, POR, PWM, WDT | - | 512KB (512K x 8) | FLASH | 8K x 8 | 64K x 8 | 2.7V ~ 3.6V | - | External, Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

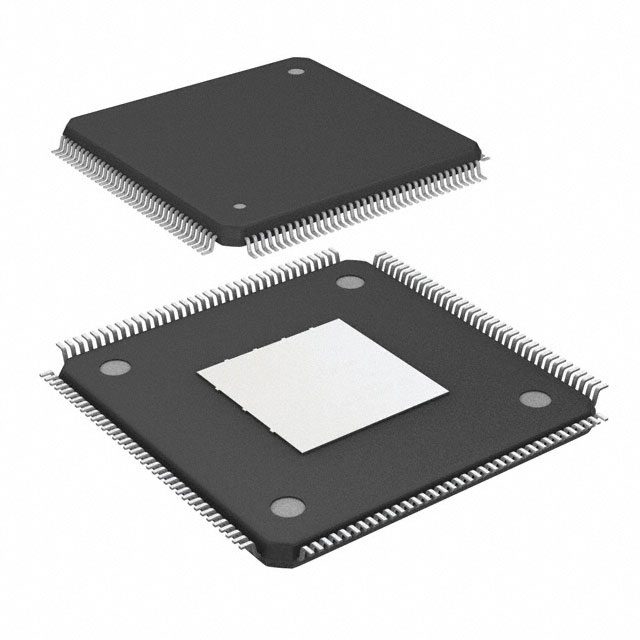

XMC4500F144F1024ACXQMA1IC MCU 32BIT 1MB FLASH 144LQFP |
813 |
|
Datasheet |
144-LQFP Exposed Pad | XMC4000 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 120MHz | CANbus, EBI/EMI, Ethernet, I2C, LINbus, SPI, UART, USB | DMA, I2S, LED, POR, PWM, WDT | 91 | 1MB (1M x 8) | FLASH | - | 160K x 8 | 3.13V ~ 3.63V | A/D 32x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
C8051F580-IMIC MCU 8BIT 128KB FLASH 48QFN |
1,566 |
|
Datasheet |
48-VFQFN Exposed Pad | C8051F58x | Tube | Active | Verified | 8051 | 8-Bit | 50MHz | EBI/EMI, SMBus (2-Wire/I2C), CANbus, LINbus, SPI, UART/USART | POR, PWM, Temp Sensor, WDT | 40 | 128KB (128K x 8) | FLASH | - | 8.25K x 8 | 1.8V ~ 5.25V | A/D 32x12b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
MIMXRT1052CVJ5BIC MCU 32BIT 196MAPBGA |
940 |
|
Datasheet |
196-LFBGA | RT1050 | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 528MHz | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | 127 | - | External Program Memory | - | 512K x 8 | 3V ~ 3.6V | A/D 20x12b | External, Internal | -40°C ~ 105°C (TJ) | - | - | Surface Mount | ||
|
|
STM32F722ZET6IC MCU 32BIT 512KB FLASH 144LQFP |
607 |
|
Datasheet |
144-LQFP | STM32F7 | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 216MHz | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 114 | 512KB (512K x 8) | FLASH | - | 256K x 8 | 1.7V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

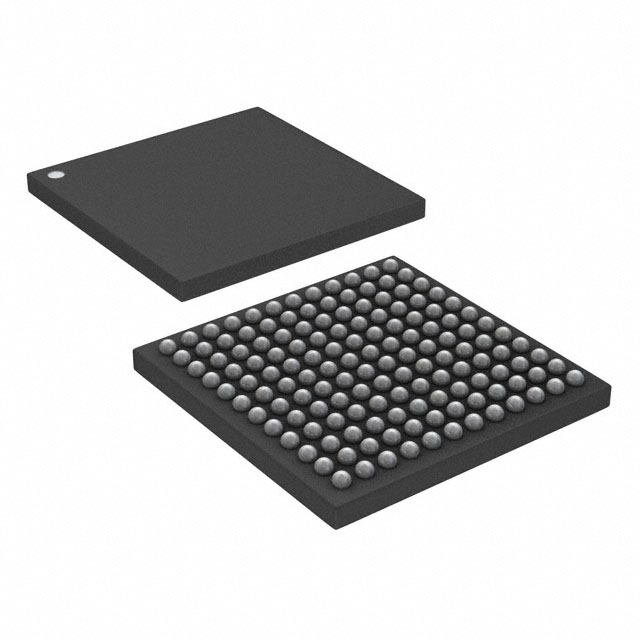

STM32L4R5ZIY6TRIC MCU 32BIT 2MB FLASH 144WLCSP |
3,227 |
|
Datasheet |
144-UFBGA, WLCSP | STM32L4 | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 120MHz | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, SAI, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 115 | 2MB (2M x 8) | FLASH | - | 640K x 8 | 1.71V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
STM32H750IBT6IC MCU 32BIT 128KB FLASH 176LQFP |
2,649 |
|
Datasheet |
176-LQFP | STM32H7 | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 480MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | 140 | 128KB (128K x 8) | FLASH | - | 1M x 8 | 1.62V ~ 3.6V | A/D 32x16b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
ATSAMS70Q20A-ANIC MCU 32BIT 1MB FLASH 144LQFP |
210 |
|
Datasheet |
144-LQFP | SAM S70 | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 300MHz | EBI/EMI, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 114 | 1MB (1M x 8) | FLASH | - | 384K x 8 | 1.08V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
TM4C123GH6PZTIC MCU 32BIT 256KB FLASH 100LQFP |
4,269 |
|
Datasheet |
100-LQFP | Tiva™ C | Tray | Active | Not Verified | ARM® Cortex®-M4F | 32-Bit Single-Core | 80MHz | CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT | 69 | 256KB (256K x 8) | FLASH | 2K x 8 | 32K x 8 | 1.08V ~ 3.63V | A/D 22x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
MSP430F5359IZCATIC MCU 16BIT 512KB FLSH 113NFBGA |
739 |
|
Datasheet |
113-VFBGA | MSP430F5xx | Tape & Reel (TR) | Active | Not Verified | MSP430 CPUXV2 | 16-Bit | 20MHz | I2C, IrDA, SCI, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 74 | 512KB (512K x 8) | FLASH | - | 66K x 8 | 1.8V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount |
