Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPC5644BF0VLU1IC MCU 32BIT 1.5MB FLASH 176LQFP |
200 |
|
Datasheet |
176-LQFP | MPC56xx Qorivva | Tray | Active | Not Verified | e200z4d | 32-Bit Single-Core | 120MHz | CANbus, I2C, LINbus, SCI, SPI | DMA, POR, PWM, WDT | 147 | 1.5MB (1.5M x 8) | FLASH | 64K x 8 | 128K x 8 | 3V ~ 5.5V | A/D 27x10b, 5x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
ADUCM320BBCZ-RLIC MCU 32BIT 256KB FLSH 96CSPBGA |
2,497 |
|
Datasheet |
96-TFBGA, CSPBGA | ADuCM | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 80MHz | I2C, SPI, UART/USART | DMA, POR, PWM, WDT | 40 | 256KB (128K x 8 x 2) | FLASH | - | 32K x 8 | 2.9V ~ 3.6V | A/D 16x14b; D/A 12x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
|
ADUCM320BBCZI-RLIC MCU 32BIT 256KB FLSH 96CSPBGA |
2,489 |
|
Datasheet |
96-TFBGA, CSPBGA | ADuCM | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 80MHz | I2C, SPI, UART/USART | DMA, POR, PWM, WDT | 40 | 256KB (128K x 8 x 2) | FLASH | - | 32K x 8 | 2.9V ~ 3.6V | A/D 16x14b; D/A 12x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
ADUCM320BBCZIIC MCU 32BIT 256KB FLSH 96CSPBGA |
66 |
|
Datasheet |
96-TFBGA, CSPBGA | ADuCM | Tray | Active | Not Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 80MHz | I2C, SPI, UART/USART | DMA, POR, PWM, WDT | 40 | 256KB (128K x 8 x 2) | FLASH | - | 32K x 8 | 2.9V ~ 3.6V | A/D 16x14b; D/A 12x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

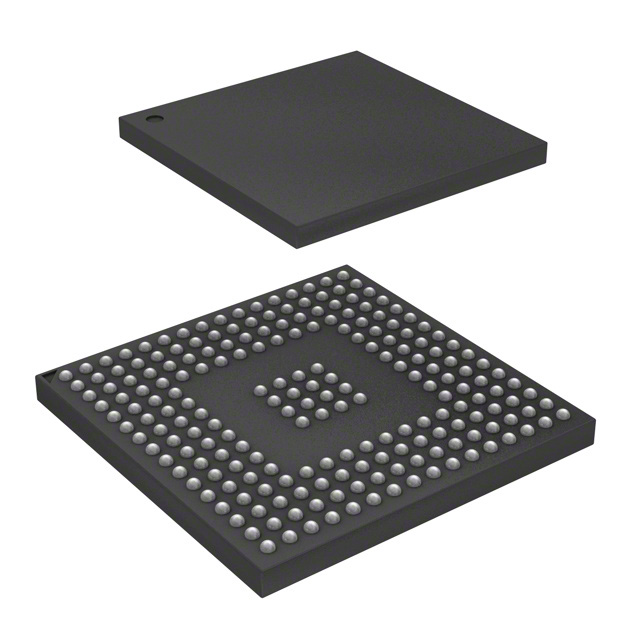

MPC5534MVM80IC MCU 32BIT 1MB FLASH 208MAPBGA |
360 |
|
Datasheet |
208-BGA | MPC55xx Qorivva | Tray | Not For New Designs | Not Verified | e200z6 | 32-Bit Single-Core | 80MHz | CANbus, EBI/EMI, Ethernet, SCI, SPI | DMA, POR, PWM, WDT | 192 | 1MB (1M x 8) | FLASH | - | 64K x 8 | 1.35V ~ 1.65V | A/D 34x12b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
SPC5644AF0MLU3IC MCU 32BIT 4MB FLASH 176LQFP |
102 |
|
Datasheet |
176-LQFP | MPC56xx Qorivva | Tray | Active | Not Verified | e200z4 | 32-Bit Single-Core | 80MHz | CANbus, EBI/EMI, LINbus, SCI, SPI | DMA, POR, PWM, WDT | 84 | 4MB (4M x 8) | FLASH | - | 192K x 8 | 1.14V ~ 5.25V | A/D 40x12b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
MC9S12XDT256CALIC MCU 16BIT 256KB FLASH 112LQFP |
280 |
|
Datasheet |
112-LQFP | HCS12X | Tray | Active | Not Verified | HCS12X | 16-Bit | 80MHz | CANbus, EBI/EMI, I2C, IrDA, LINbus, SCI, SPI | LVD, POR, PWM, WDT | 91 | 256KB (256K x 8) | FLASH | 4K x 8 | 16K x 8 | 2.35V ~ 5.5V | A/D 16x10b | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
SPC5516EAVMG80IC MCU 32BIT 1MB FLASH 208MAPBGA |
349 |
|
Datasheet |
208-BGA | MPC55xx Qorivva | Tray | Active | Not Verified | e200z0, e200z1 | 32-Bit Dual-Core | 80MHz | CANbus, EBI/EMI, I2C, SCI, SPI | DMA, POR, PWM, WDT | 144 | 1MB (1M x 8) | FLASH | - | 64K x 8 | 4.5V ~ 5.25V | A/D 40x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
DS80C320-ENL+IC MCU 8BIT ROMLESS 44TQFP |
860 |
|
Datasheet |
44-TQFP | 80C | Tray | Active | Not Verified | 8051 | 8-Bit | 33MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | - | ROMless | - | 256 x 8 | 4.5V ~ 5.5V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
DSP56F826BU80EIC MCU 16BIT 64KB FLASH 100LQFP |
430 |
|
Datasheet |
100-LQFP | 56F8xx | Tray | Not For New Designs | Not Verified | 56800 | 16-Bit | 80MHz | EBI/EMI, SCI, SPI, SSI | POR, WDT | 46 | 64KB (32K x 16) | FLASH | - | 4K x 16 | 2.25V ~ 2.75V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
SP5746CSK1AMKU6RIC MCU 32BIT 3MB FLASH 176LQFP |
500 |
|
Datasheet |
176-LQFP Exposed Pad | MPC57xx | Tape & Reel (TR) | Active | Not Verified | e200z2, e200z4 | 32-Bit Dual-Core | 80MHz/160MHz | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG | DMA, LVD, POR, WDT | 129 | 3MB (3M x 8) | FLASH | - | 512K x 8 | 3V ~ 5.5V | A/D 80x10b, 64x12b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|

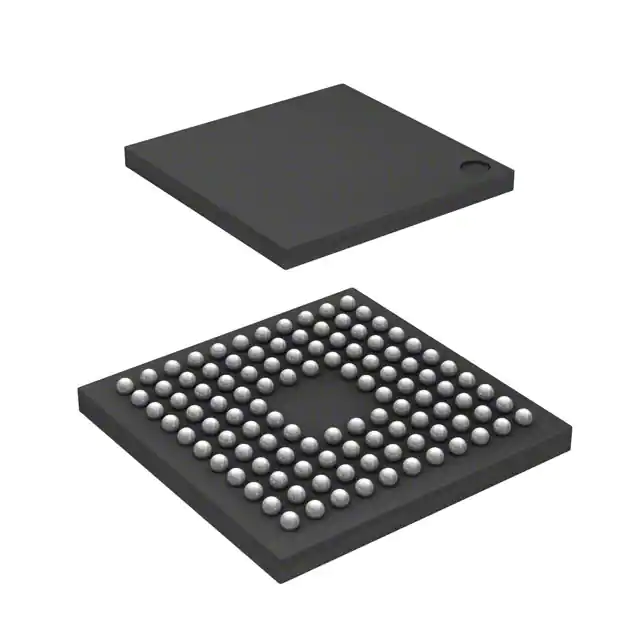

R4F2153VBR25KDVIC MCU 16BIT 512KB FLSH 112LFBGA |
112 |
|
Datasheet |
112-LFBGA | H8® H8S/2100 | Tray | Not For New Designs | Not Verified | H8S/2600 | 16-Bit | 25MHz | I2C, LPC, SCI | POR, PWM, WDT | 53 | 512KB (512K x 8) | FLASH | - | 40K x 8 | 3V ~ 3.6V | A/D 8x10b | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
SPC5645CF0VLU1IC MCU 32BIT 2MB FLASH 176LQFP |
200 |
|
Datasheet |
176-LQFP | MPC56xx Qorivva | Tray | Active | Not Verified | e200z4d, e200z0h | 32-Bit Dual-Core | 80MHz/120MHz | CANbus, Ethernet, I2C, LINbus, SCI, SPI | DMA, POR, PWM, WDT | 147 | 2MB (2M x 8) | FLASH | 64K x 8 | 256K x 8 | 3V ~ 5.5V | A/D 27x10b, 5x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
MC56F8355MFGEIC MCU 16BIT 256KB FLASH 128LQFP |
355 |
|
Datasheet |
128-LQFP | 56F8xxx | Tray | Active | Not Verified | 56800E | 16-Bit | 60MHz | CANbus, EBI/EMI, SCI, SPI | POR, PWM, Temp Sensor, WDT | 49 | 256KB (128K x 16) | FLASH | - | 10K x 16 | 2.25V ~ 3.6V | A/D 16x12b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
SPC5668EK0MMGIC MCU 32BIT 2MB FLASH 208MAPBGA |
450 |
|
Datasheet |
208-BGA | MPC56xx Qorivva | Tray | Active | Not Verified | e200z650 | 32-Bit Single-Core | 116MHz | CANbus, I2C, LINbus, SCI, SPI | DMA, POR, PWM, WDT | 155 | 2MB (2M x 8) | FLASH | - | 128K x 8 | 3V ~ 5.5V | A/D 64x10b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
MCF54453CVP200IC MCU 32BIT ROMLESS 360BGA |
294 |
|
Datasheet |
360-BBGA | MCF5445x | Tray | Active | Not Verified | Coldfire V4 | 32-Bit Single-Core | 200MHz | I2C, SPI, SSI, UART/USART, USB OTG | DMA, WDT | 132 | - | ROMless | - | 32K x 8 | 1.35V ~ 3.6V | - | External, Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MC9S12XA512VAAIC MCU 16BIT 512KB FLASH 80QFP |
13 |
|
Datasheet |
80-QFP | HCS12X | Tray | Active | Not Verified | HCS12X | 16-Bit | 80MHz | EBI/EMI, I2C, IrDA, LINbus, SCI, SPI | LVD, POR, PWM, WDT | 59 | 512KB (512K x 8) | FLASH | 4K x 8 | 32K x 8 | 2.35V ~ 5.5V | A/D 8x10b | External | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
|
SPC5644CF0VLU8IC MCU 32BIT 1.5MB FLASH 176LQFP |
200 |
|
Datasheet |
176-LQFP | MPC56xx Qorivva | Tray | Active | Not Verified | e200z4d, e200z0h | 32-Bit Dual-Core | 80MHz/120MHz | CANbus, Ethernet, I2C, LINbus, SCI, SPI | DMA, POR, PWM, WDT | 147 | 1.5MB (1.5M x 8) | FLASH | 64K x 8 | 192K x 8 | 3V ~ 5.5V | A/D 27x10b, 5x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
SPC5775BDK3MME2IC MCU 32BIT 4MB FLASH 416MAPBGA |
167 |
|
Datasheet |
416-BGA | MPC57xx | Tray | Active | Not Verified | e200z7 | 32-Bit Dual-Core | 220MHz | CANbus, EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, SPI | DMA, LVD, POR, Zipwire | 293 | 4MB (4M x 8) | FLASH | - | 512K x 8 | 3V ~ 5.5V | A/D 40x12b eQADCx2 | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
SPC5517EAVLU66IC MCU 32BIT 1.5MB FLASH 176LQFP |
400 |
|
Datasheet |
176-LQFP | MPC55xx Qorivva | Tray | Active | Not Verified | e200z0, e200z1 | 32-Bit Dual-Core | 66MHz | CANbus, EBI/EMI, I2C, SCI, SPI | DMA, POR, PWM, WDT | 137 | 1.5MB (1.5M x 8) | FLASH | - | 80K x 8 | 4.5V ~ 5.25V | A/D 40x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount |
