Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSP430F5659IPZIC MCU 16BIT 512KB FLASH 100LQFP |
104 |
|
Datasheet |
100-LQFP | MSP430F5xx | Tray | Active | Not Verified | MSP430 CPUXV2 | 16-Bit | 20MHz | I2C, IrDA, SCI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 74 | 512KB (512K x 8) | FLASH | - | 66K x 8 | 1.8V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
CY8C5268AXI-LP047IC MCU 32BIT 256KB FLASH 100TQFP |
678 |
|
Datasheet |
100-LQFP | PSOC™ 5 CY8C52LP | Tray | Active | Not Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 67MHz | I2C, LINbus, SPI, UART/USART, USB | CapSense, DMA, LCD, POR, PWM, WDT | 62 | 256KB (256K x 8) | FLASH | 2K x 8 | 64K x 8 | 1.71V ~ 5.5V | A/D 1x12b; D/A 1x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC32MX795F512LT-80I/PFIC MCU 32BIT 512KB FLASH 100TQFP |
5,916 |
|
Datasheet |
100-TQFP | PIC® 32MX | Tape & Reel (TR) | Active | Not Verified | MIPS32® M4K™ | 32-Bit Single-Core | 80MHz | CANbus, Ethernet, I2C, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 85 | 512KB (512K x 8) | FLASH | - | 128K x 8 | 2.3V ~ 3.6V | A/D 16x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC18F6628-I/PTIC MCU 8BIT 96KB FLASH 64TQFP |
196 |
|
Datasheet |
64-TQFP | PIC® 18F | Tray | Active | Not Verified | PIC | 8-Bit | 40MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | 54 | 96KB (48K x 16) | FLASH | 1K x 8 | 3.8K x 8 | 4.2V ~ 5.5V | A/D 12x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
PIC18LF6722-I/PTIC MCU 8BIT 128KB FLASH 64TQFP |
1,704 |
|
Datasheet |
64-TQFP | PIC® 18F | Tray | Active | Verified | PIC | 8-Bit | 40MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | 54 | 128KB (64K x 16) | FLASH | 1K x 8 | 3.8K x 8 | 2V ~ 5.5V | A/D 12x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
DSPIC30F6014A-30I/PTIC MCU 16BIT 144KB FLASH 80TQFP |
734 |
|
Datasheet |
80-TQFP | dsPIC™ 30F | Tray | Active | Not Verified | dsPIC | 16-Bit | 30 MIPs | CANbus, I2C, SPI, UART/USART | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 68 | 144KB (48K x 24) | FLASH | 4K x 8 | 8K x 8 | 2.5V ~ 5.5V | A/D 16x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
EFM32GG12B410F1024GQ64-AIC MCU 32BIT 1MB FLASH 64TQFP |
394 |
|
Datasheet |
64-TQFP | Giant Gecko S1 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 72MHz | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD/SDIO, PDM, QSPI, SmartCard, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | 50 | 1MB (1M x 8) | FLASH | - | 192K x 8 | 1.8V ~ 3.8V | A/D 16x12b SAR; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

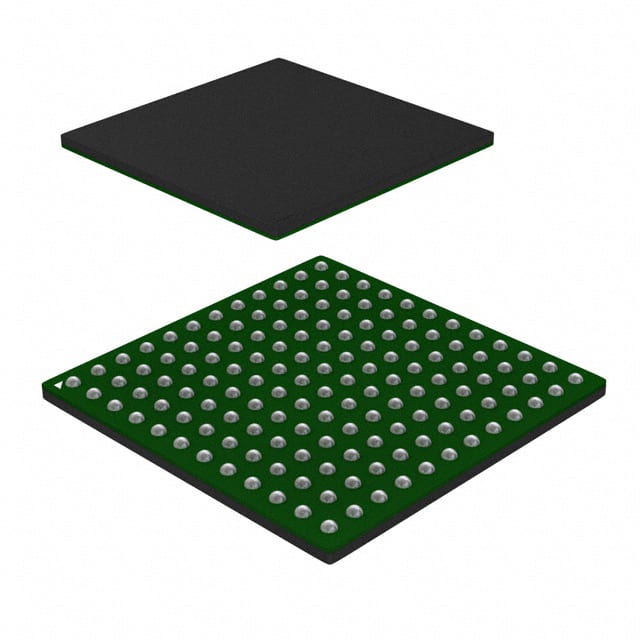

STM32F413ZHJ6IC MCU 32BIT 1.5MB FLSH 144UFBGA |
5,946 |
|
Datasheet |
144-UFBGA | STM32F4 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 100MHz | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | 114 | 1.5MB (1.5M x 8) | FLASH | - | 320K x 8 | 1.7V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
STM32F427VGT6IC MCU 32BIT 1MB FLASH 100LQFP |
2,935 |
|
Datasheet |
100-LQFP | STM32F4 | Tray | Active | Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 180MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 82 | 1MB (1M x 8) | FLASH | - | 256K x 8 | 1.8V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC32MZ1024EFG100-I/PTIC MCU 32BIT 1MB FLASH 100TQFP |
1,871 |
|
Datasheet |
100-TQFP | PIC® 32MZ | Tray | Active | Not Verified | MIPS32® M-Class | 32-Bit Single-Core | 200MHz | EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 78 | 1MB (1M x 8) | FLASH | - | 512K x 8 | 2.1V ~ 3.6V | A/D 40x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MSP430F5659IZCATIC MCU 16BIT 512KB FLSH 113NFBGA |
852 |
|
Datasheet |
113-VFBGA | MSP430F5xx | Tape & Reel (TR) | Active | Not Verified | MSP430 CPUXV2 | 16-Bit | 20MHz | I2C, IrDA, SCI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 74 | 512KB (512K x 8) | FLASH | - | 66K x 8 | 1.8V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

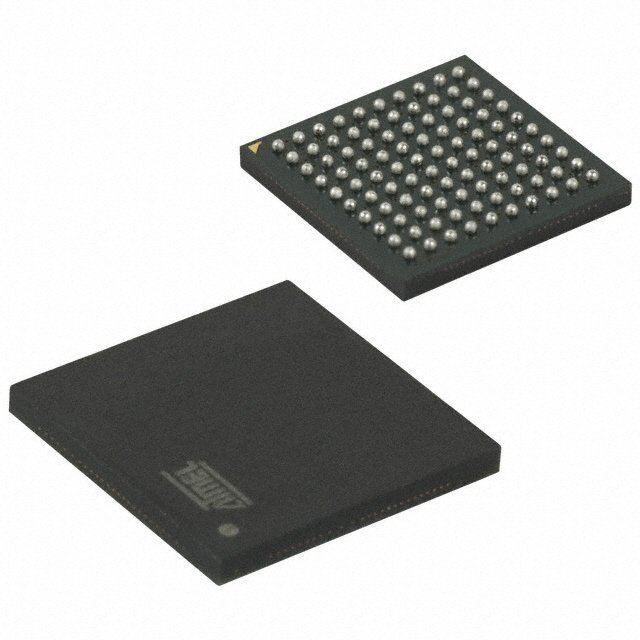

AT91SAM7X256C-CUIC MCU 16/32BIT 256KB 100TFBGA |
573 |
|
Datasheet |
100-TFBGA | SAM7X | Tray | Active | Not Verified | ARM7® | 16/32-Bit | 55MHz | CANbus, Ethernet, I2C, SPI, SSC, UART/USART, USB | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 62 | 256KB (256K x 8) | FLASH | - | 64K x 8 | 1.65V ~ 1.95V | A/D 8x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
PIC18F8722-I/PTIC MCU 8BIT 128KB FLASH 80TQFP |
3,217 |
|
Datasheet |
80-TQFP | PIC® 18F | Tray | Active | Verified | PIC | 8-Bit | 40MHz | EBI/EMI, I2C, SPI, UART/USART | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | 70 | 128KB (64K x 16) | FLASH | 1K x 8 | 3.8K x 8 | 4.2V ~ 5.5V | A/D 16x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
LPC1758FBD80YIC MCU 32BIT 512KB FLASH 80LQFP |
3,208 |
|
Datasheet |
80-LQFP | LPC17xx | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 100MHz | CANbus, Ethernet, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT | 52 | 512KB (512K x 8) | FLASH | - | 64K x 8 | 2.4V ~ 3.6V | A/D 6x12b; D/A 1x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
TM4C123GH6PMTIC MCU 32BIT 256KB FLASH 64LQFP |
529 |
|
Datasheet |
64-LQFP | Tiva™ C | Tray | Active | Not Verified | ARM® Cortex®-M4F | 32-Bit Single-Core | 80MHz | CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT | 43 | 256KB (256K x 8) | FLASH | 2K x 8 | 32K x 8 | 1.08V ~ 3.63V | A/D 12x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|

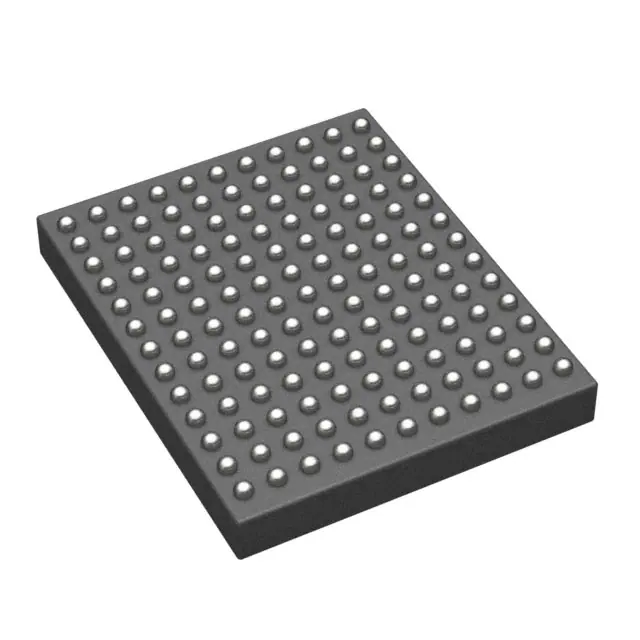

STM32F439ZIY6TRIC MCU 32BIT 2MB FLASH 143WLCSP |
4,544 |
|
Datasheet |
143-UFBGA, WLCSP | STM32F4 | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 180MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | 114 | 2MB (2M x 8) | FLASH | - | 256K x 8 | 1.8V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
PIC18F8722T-I/PTIC MCU 8BIT 128KB FLASH 80TQFP |
1,392 |
|
Datasheet |
80-TQFP | PIC® 18F | Tape & Reel (TR) | Active | Verified | PIC | 8-Bit | 40MHz | EBI/EMI, I2C, SPI, UART/USART | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | 70 | 128KB (64K x 16) | FLASH | 1K x 8 | 3.8K x 8 | 4.2V ~ 5.5V | A/D 16x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC17C44-25/PIC MCU 8BIT 16KB OTP 40DIP |
150 |
|
Datasheet |
40-DIP (0.600", 15.24mm) | PIC® 17C | Tube | Active | Verified | PIC | 8-Bit | 25MHz | UART/USART | POR, PWM, WDT | 33 | 16KB (8K x 16) | OTP | - | 454 x 8 | 4.5V ~ 6V | - | External | 0°C ~ 70°C (TA) | - | - | Through Hole | ||
|
|
STM32F417VGT6IC MCU 32BIT 1MB FLASH 100LQFP |
186 |
|
Datasheet |
100-LQFP | STM32F4 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 168MHz | CANbus, DCMI, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | 82 | 1MB (1M x 8) | FLASH | - | 192K x 8 | 1.8V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
ATSAMS70Q19B-CNTIC MCU 32BIT 512KB FLSH 144LFBGA |
2,812 |
|
Datasheet |
144-LFBGA | SAM S70 | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 300MHz | EBI/EMI, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 114 | 512KB (512K x 8) | FLASH | - | 256K x 8 | 1.7V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount |
