Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRV8849EVMEVAL BOARD FOR DRV8849 |
8 |
|
Datasheet |
- | Box | Active | Power Management | Motor Controller/Driver, Stepper | Yes, MCU | DRV8849 | Motors (Stepper) | On-Board LEDs | Board(s) |
|
|
LM74912Q1EVMEVAL BOARD FOR LM74912-Q1 |
8 |
|
Datasheet |
- | Box | Active | Reference Design | Ideal Diode Controller | No | LM74912-Q1 | 3V ~ 65V Input Voltage | On-Board Test Points | Board(s) |
|
UCD90SEQ64EVM-650EVAL BOARD FOR UCD90120 UCD90124 |
7 |
|
Datasheet |
- | Box | Active | Power Management | Power Supply Supervisor/Tracker/Sequencer | No | UCD90120(A), UCD90124(A), UCD90160, UCD90910 | 12 Channel Sequencer and Monitor | - | Board(s) |
|

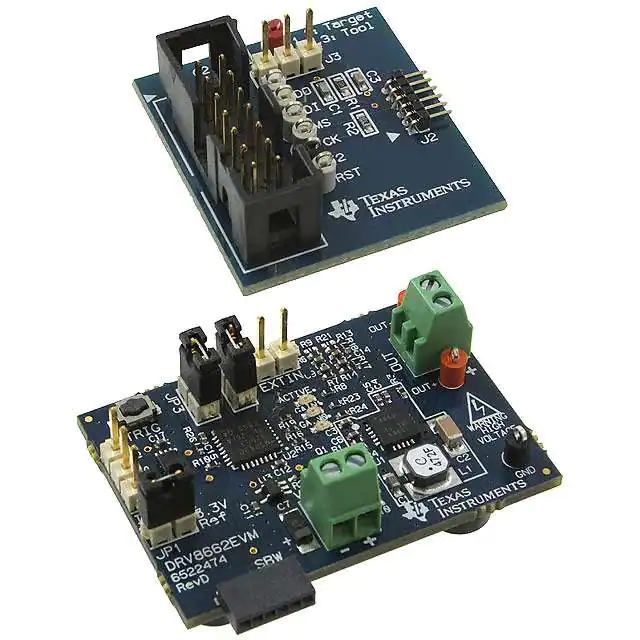

DRV8662EVMEVAL BOARD FOR DRV8662 |
7 |
|
Datasheet |
- | Box | Active | Power Management | Motor Controller/Driver, Haptic/Vibration | Yes, MCU, 16-Bit | DRV8662 | - | On-Board LEDs | Board(s) |
|
|
DRV8908-Q1EVMEVAL BOARD FOR DRV8908-Q1 |
7 |
|
Datasheet |
- | Box | Active | Power Management | Motor Controller/Driver | - | DRV8908-Q1 | Motors (DC) | SPI Interface(s) | Board(s) |
|
|
BQ25628EVMEVAL BOARD FOR BQ25628 |
7 |
|
Datasheet |
- | Box | Active | Power Management | Battery Charger | No | BQ25628 | 3.9V ~ 18V Input Voltage | On-Board LEDs, Test Points | Board(s) |
|
|
BQ25620EVMEVAL BOARD FOR BQ25620 |
7 |
|
Datasheet |
- | Box | Active | Power Management | Battery Charger | No | BQ25620 | - | On-Board LEDs, Test Points | Board(s) |
|
|
UCC14141EVM-068EVAL BOARD FOR UCC14141-Q1 |
7 |
|
Datasheet |
- | Box | Active | Power Management | Gate Driver | No | UCC14141-Q1 | Isolated | On-Board Test Points | Board(s) |
|

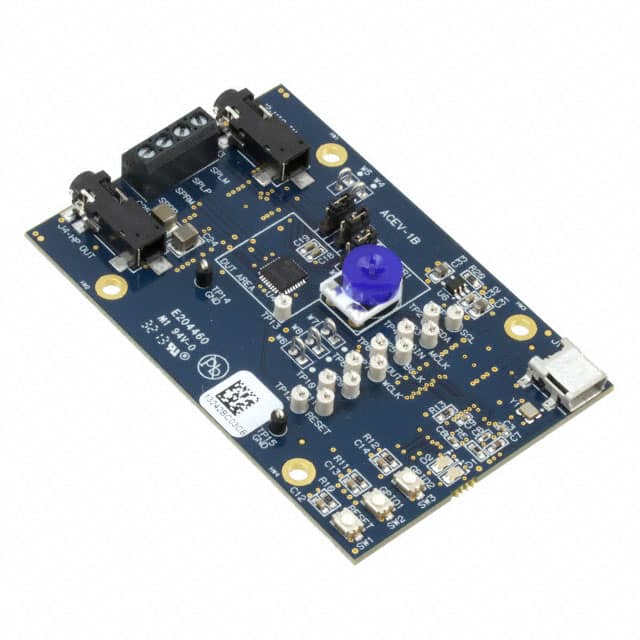

TLV320AIC3120EVM-UEVAL BOARD FOR TLV320AIC3120 |
6 |
|
Datasheet |
- | Box | Active | Audio | CODEC | No | TLV320AIC3120 | Class-D Speaker Terminals, Headphone Output | On-Board LEDs | Board(s) |
|

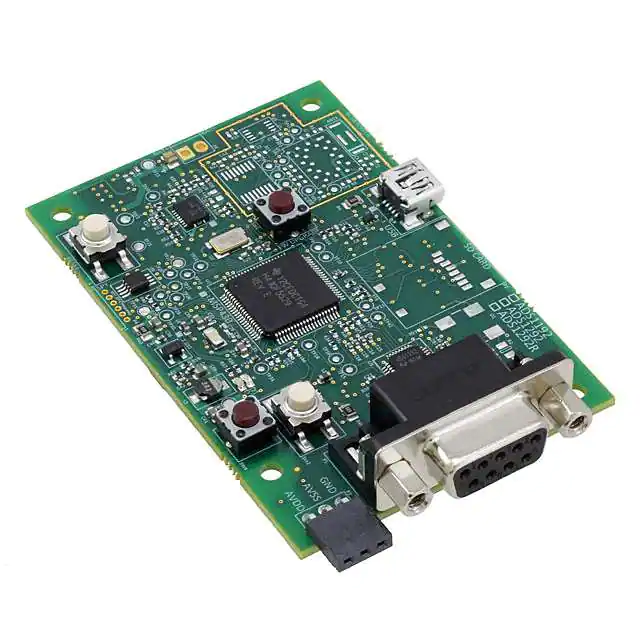

ADS1292ECG-FEEVAL BOARD FOR ADS1292 |
6 |
|
Datasheet |
- | Box | Active | Interface | Analog Front End (AFE) for ECG, EKG | - | ADS1292 | - | SPI Interface(s) | Board(s) |
|

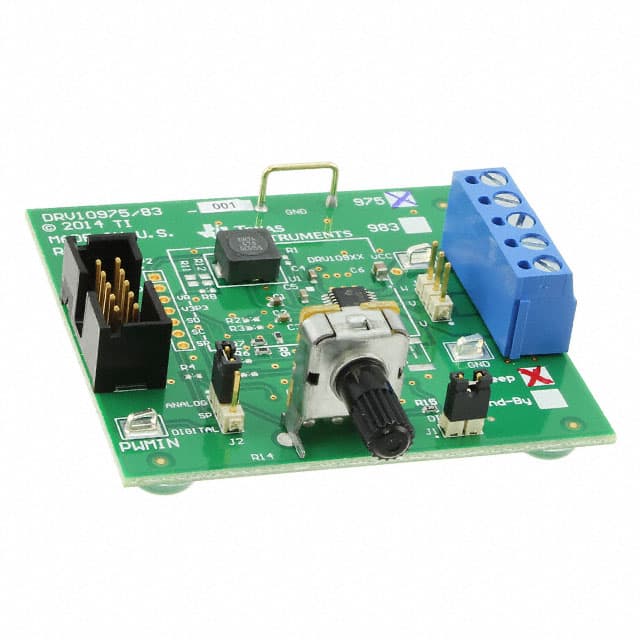

DRV10975EVMEVAL BOARD FOR DRV10975 |
6 |
|
Datasheet |
- | Box | Active | Power Management | Motor Controller/Driver | No | DRV10975 | - | Graphical User Interface (GUI) | Board(s), Accessories |
|

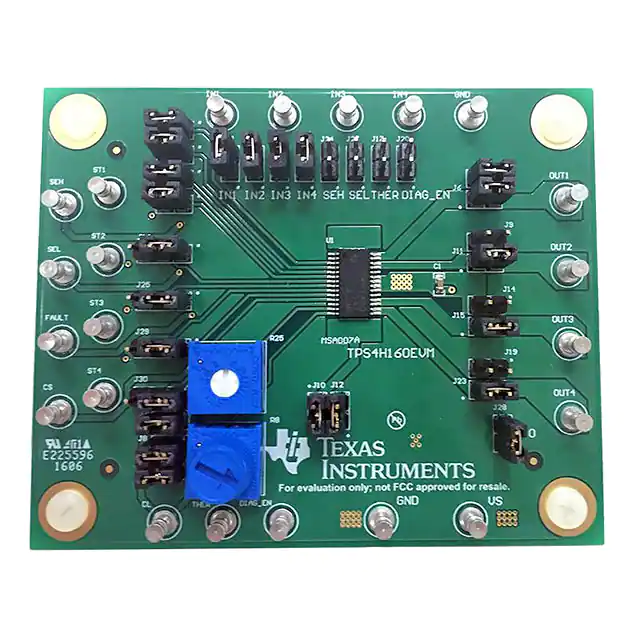

TPS4H160EVMEVAL BOARD FOR TPS4H160-Q1 |
6 |
|
Datasheet |
- | Bulk | Active | Power Management | Power Distribution Switch (Load Switch) | - | TPS4H160-Q1 | 4-Channel (Quad) | - | Board(s) |
|

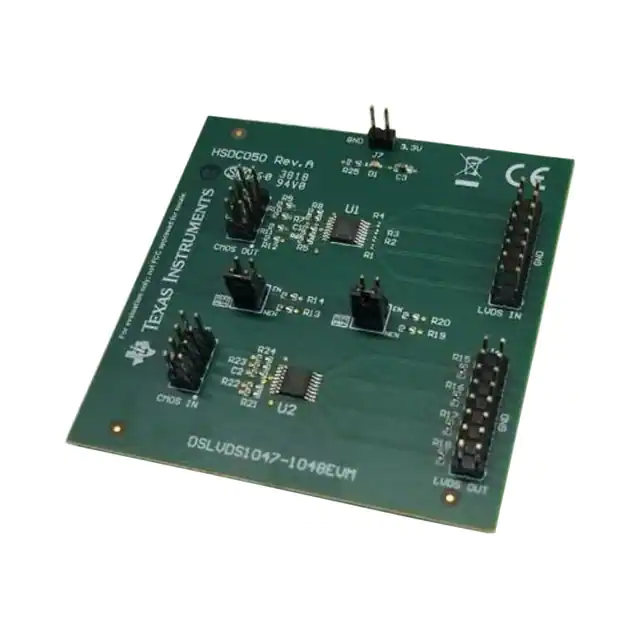

DSLVDS1047-1048EVMEVAL BOARD DSLVDS1047 DSLVDS1048 |
6 |
|
Datasheet |
- | Box | Active | Interface | LVDS | - | DSLVDS1047, DSLVDS1048 | 4-Channel (Quad) | On-Board LEDs | Board(s) |
|

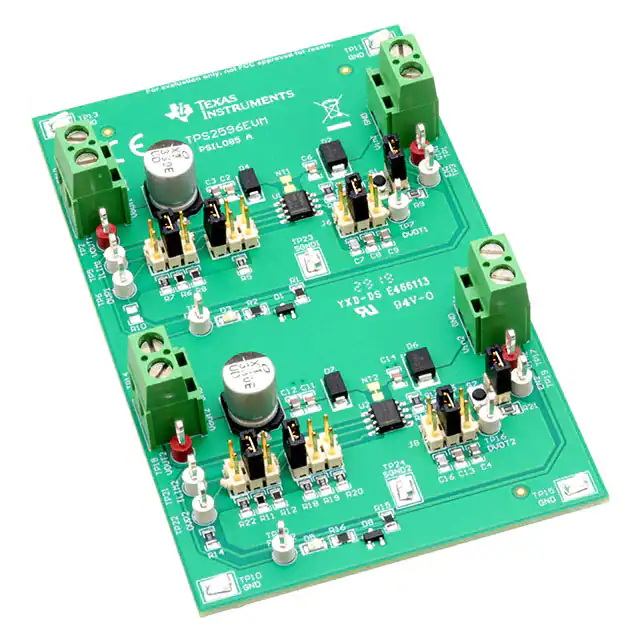

TPS2596EVMEVAL BOARD FOR TPS2596 |
6 |
|
Datasheet |
- | Box | Active | Circuit Protection | Electronic Fuses (eFuse) | No | TPS2596 | - | On-Board LEDs, Test Points | Board(s) |
|

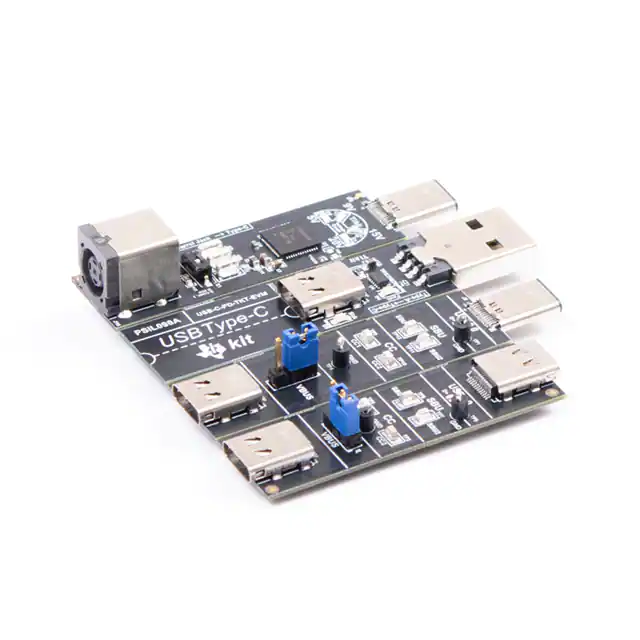

USB-C-PD-TKT-EVMEVAL BOARD |
6 |
|
Datasheet |
- | Box | Active | Power Management | USB Type-C® | - | - | - | - | Board(s) |
|

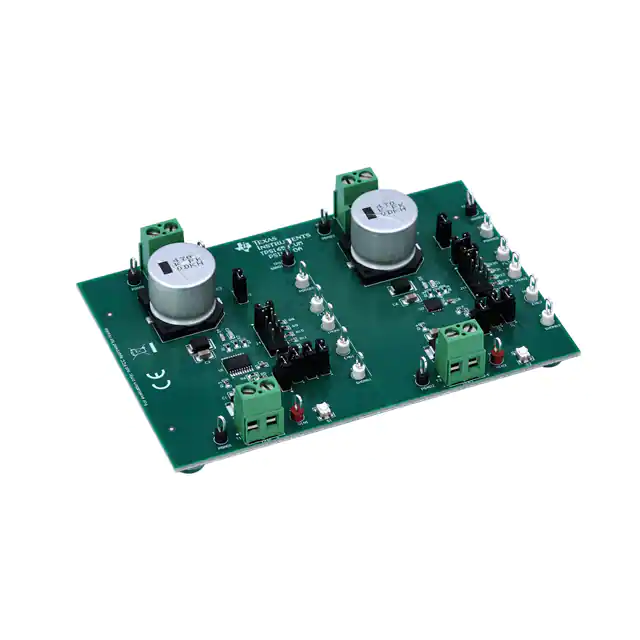

TPS1653EVMEVAL BOARD FOR TPS16530 |
6 |
|
Datasheet |
- | Box | Active | Circuit Protection | Electronic Fuses (eFuse) | No | TPS16530 | 4.5V ~ 58V Input Voltage | On-Board LEDs, Test Points | Board(s) |
|
|
LM74930Q1EVMEVAL BOARD FOR LM74930-Q1 |
6 |
|
Datasheet |
- | Box | Active | Power Management | Ideal Diode Controller | No | LM74930-Q1 | 4V ~ 65V Input Voltage | On-Board LEDs, Test Points | Board(s) |
|
BQ24640EVMEVAL BOARD FOR BQ24640 |
5 |
|
Datasheet |
- | Box | Active | Power Management | Battery Charger | No | BQ24640 | Multi Cell-Li-ion / Li-Polymer, Programmable up to 26V Output | On-Board LEDs | Board(s) |
|

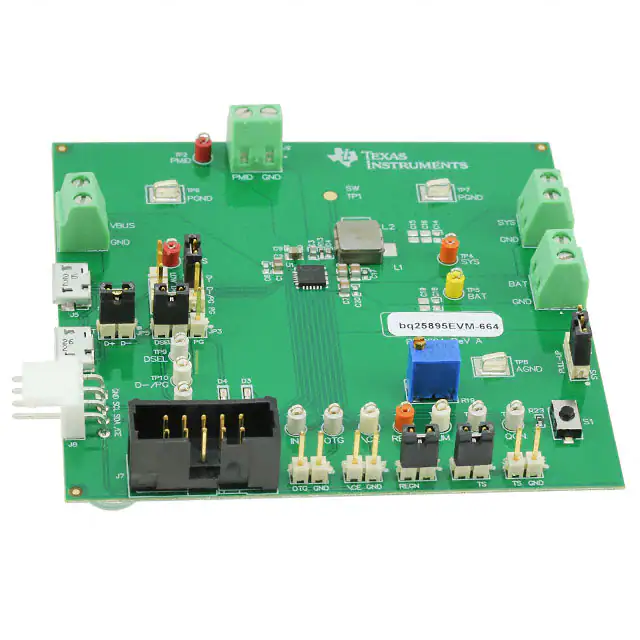

BQ25895EVM-664EVAL BOARD FOR BQ25895 |
5 |
|
Datasheet |
- | Box | Active | Power Management | Battery Charger | - | BQ25895 | - | On-Board LEDs | Board(s) |
|

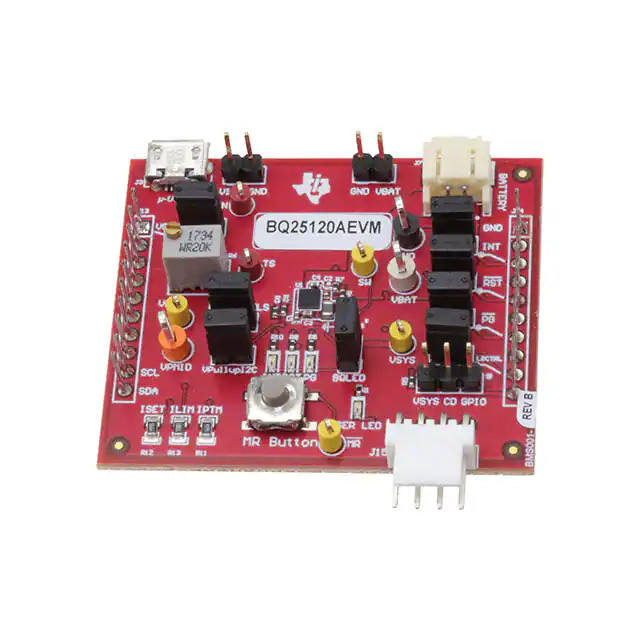

BQ25120AEVMEVAL BOARD FOR BQ25120A |
5 |
|
Datasheet |
- | Bulk | Active | Power Management | Battery Charger | - | BQ25120A | Li-Ion / Li-Pol (1 Cell) | I2C Interface(s), Graphical User Interface (GUI) | Board(s), Cable(s) |
