Expansion Boards, Daughter Cards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Platform | Type | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U178MIDI SYNTHESIZER UNIT(SAM2695) |
16 |
|
- |
- | Bulk | Active | M5StickC | Audio | Voice Synthesizer | SAM2695 | Board(s), Cable(s) |
|
|
M136LAN MODULE 13.2(W5500) |
13 |
|
- |
- | Retail Package | Active | M5Stack | Interface | Ethernet | W5500 | Board(s), Accessories |
|

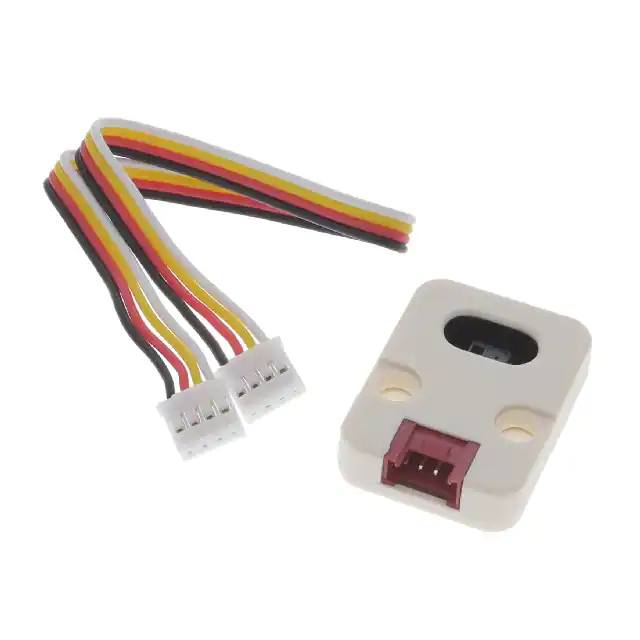

U127GESTURE RECOGNITION SENSOR |
11 |
|
- |
- | Bulk | Active | M5Stack | Sensor | Gesture | PAJ7620U2 | Board(s), Cable(s) |
|

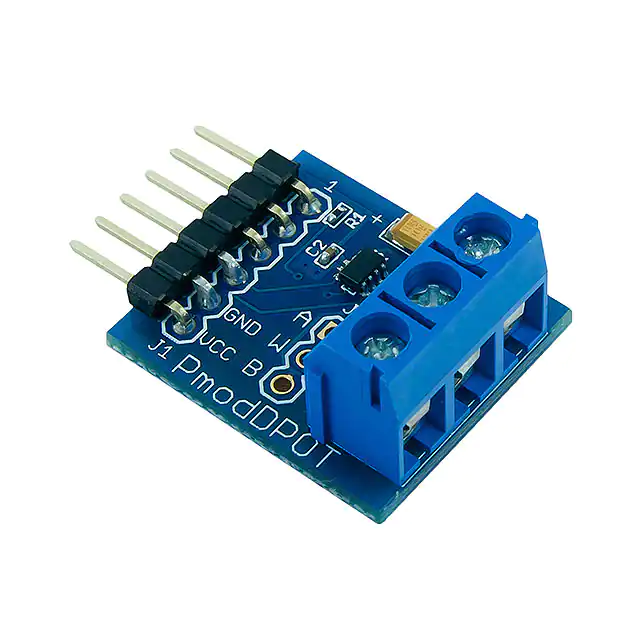

410-239PMODDPOT DIGITAL POTENTIOMETER |
35 |
|
Datasheet |
Pmod™ | Bulk | Active | Pmod™ | Data Acquisition | Digital Potentiometer | AD5160 | Board(s) |
|

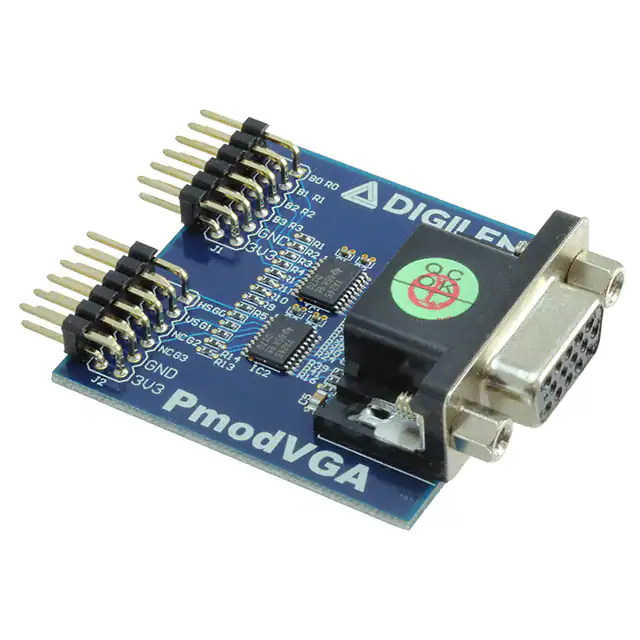

410-345PMOD VGA: VIDEO GRAPHICS ARRAY |
33 |
|
Datasheet |
Pmod™ | Bulk | Active | Pmod™ | Interface | Display Adapter VGA | - | Board(s) |
|

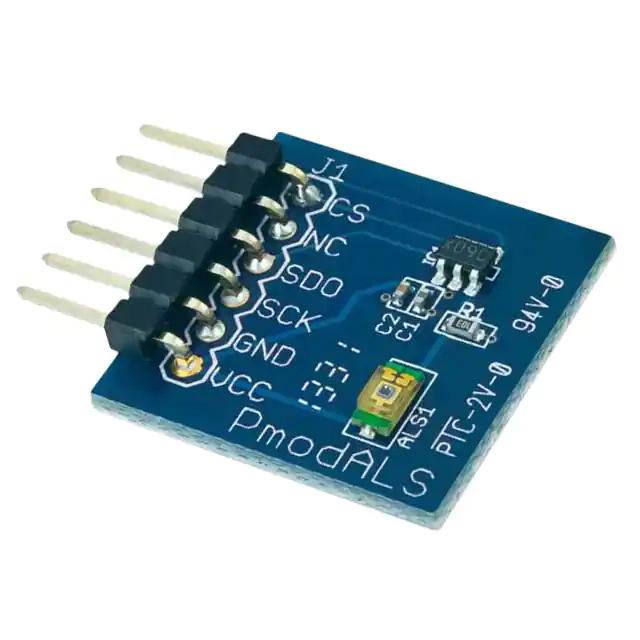

410-286PMODALS AMBIENT LIGHT SENSOR |
25 |
|
Datasheet |
Pmod™ | Box | Active | Pmod™ | Sensor | Light | ADC081S021, TEMT6000X01 | Board(s) |
|

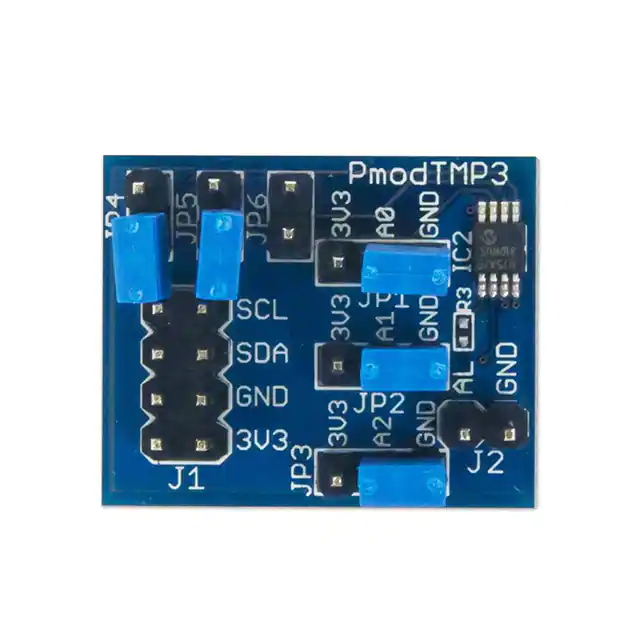

410-287PMODTMP3 TEMP SENSOR TCN75AVUA |
24 |
|
Datasheet |
Pmod™ | Box | Active | Pmod™ | Sensor | Temperature | TCN75AVUA | Board(s) |
|

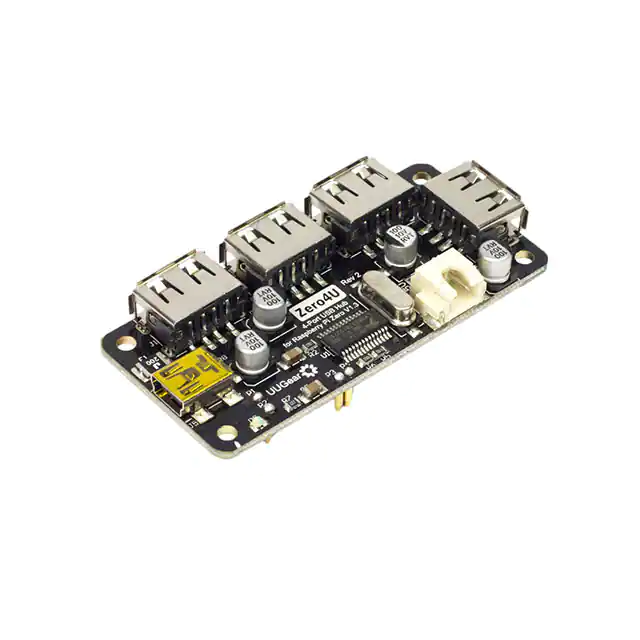

ZERO4U_V1.3EVAL BOARD USB HUB INTERFACE |
17 |
|
Datasheet |
- | Bulk | Active | Raspberry Pi Zero | Interface | USB Hub | - | Board(s), Accessories |
|
MIKROE-2554FEVER CLICK |
13 |
|
Datasheet |
- | Bulk | Active | mikroBUS™ Click™ | Sensor | Temperature | MAX30205 | Board(s) |
|

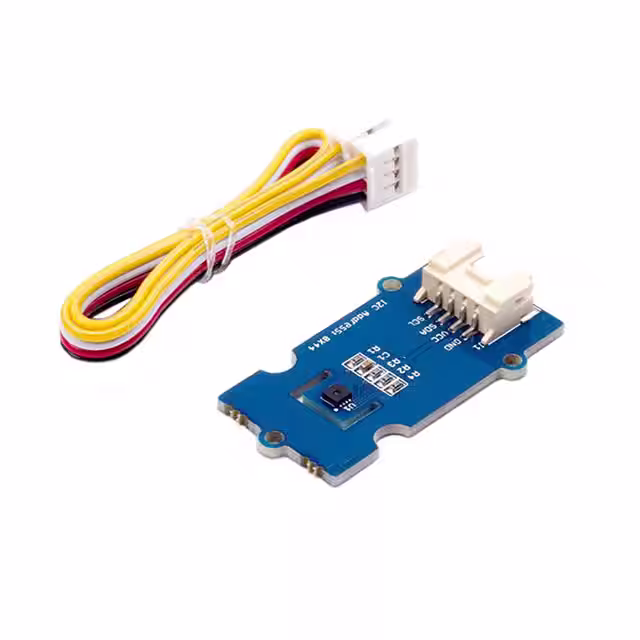

101020212GROVE - TEMP & HUMIDITY SENSOR |
81 |
|
Datasheet |
- | Bulk | Active | Grove | Sensor | Humidity, Temperature | SHT31 | Board(s) |
|

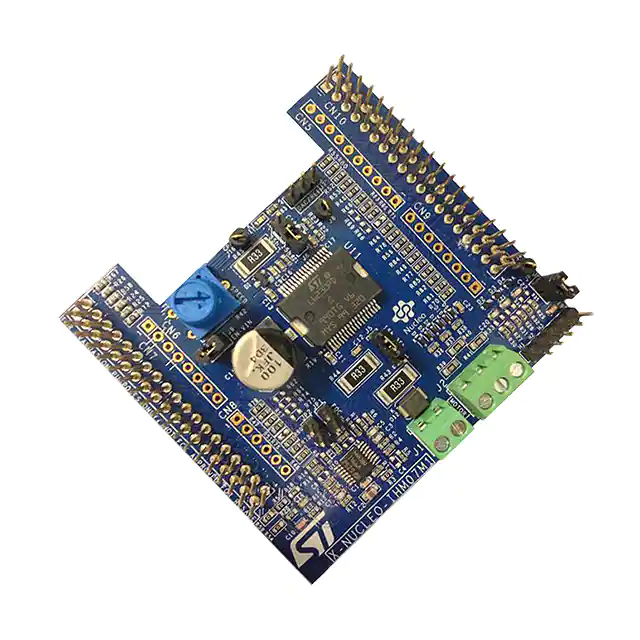

X-NUCLEO-IHM07M1NUCLEO BOARD L6230 MOTOR DRIVER |
76 |
|
Datasheet |
- | Box | Active | Nucleo | Power Management | Motor Controller/Driver | L6230 | Board(s) |
|

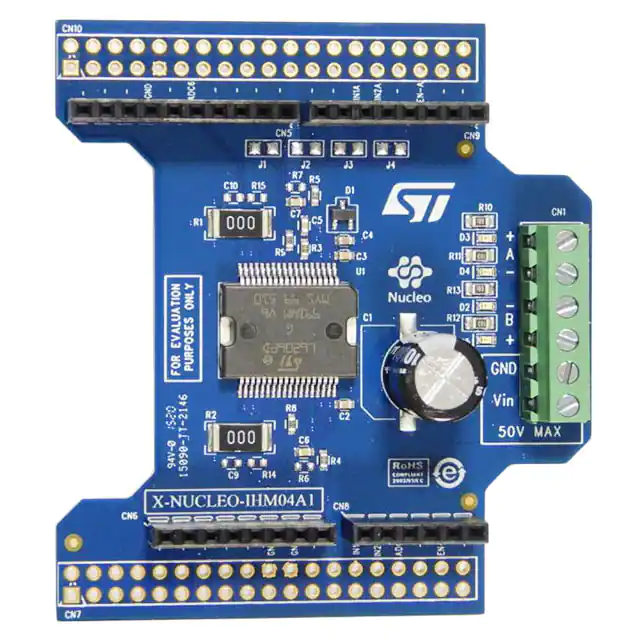

X-NUCLEO-IHM04A1NUCLEO BOARD L6206 MOTOR DRIVER |
65 |
|
Datasheet |
- | Bulk | Active | Nucleo | Power Management | Motor Controller/Driver | L6206 | Board(s) |
|
X-NUCLEO-IHM01A1NUCLEO BOARD L6474 MOTOR DRIVER |
40 |
|
Datasheet |
- | Bulk | Active | Nucleo | Power Management | Motor Controller/Driver | L6474 | Board(s) |
|
A014-CM5GO BATTERY BOTTOM2(FOR CORE2 O |
29 |
|
Datasheet |
- | Bulk | Active | M5Atom | Power Management | Motor Controller/Driver | MPU6886, SPM1423 | Board(s), Cable(s) |
|
|
SEN0572MEMS H2 GAS DETECTION SENSOR |
65 |
|
- |
- | Box | Active | Fermion | Sensor | Gas | - | Board(s) |
|

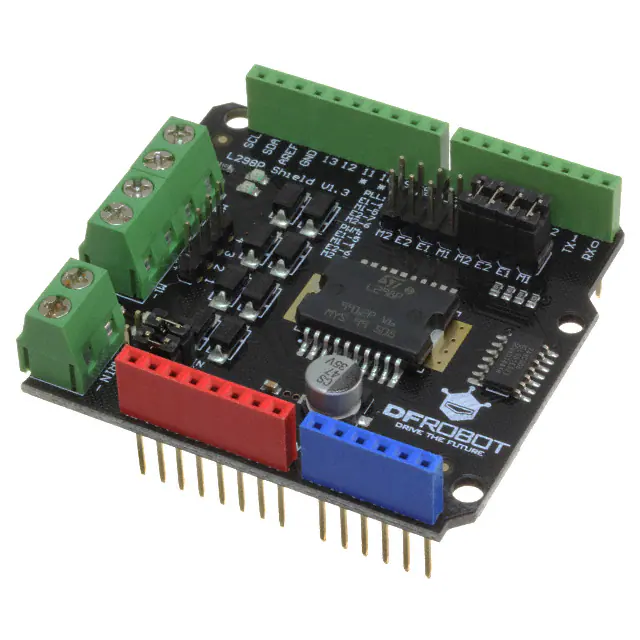

DRI00092A MOTOR SHIELD FOR ARDUINO |
29 |
|
Datasheet |
- | Bulk | Active | Arduino | Power Management | Motor Controller/Driver | L298 | Board(s) |
|

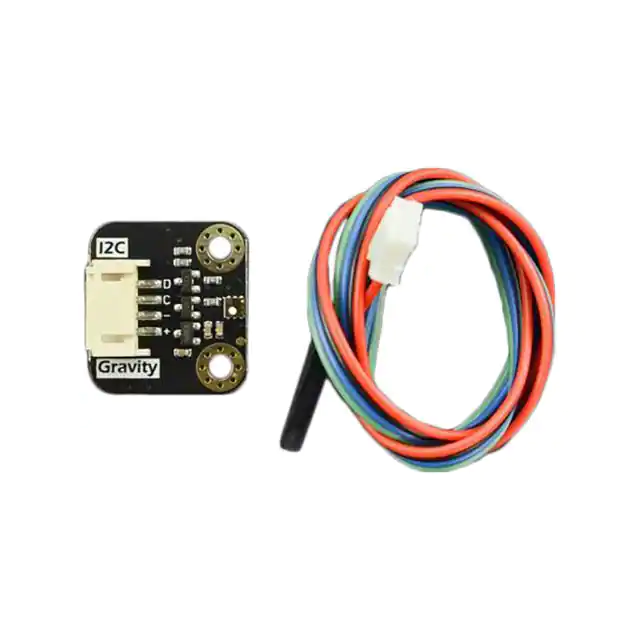

SEN0394GRAVITY: SGP40 AIR QUALITY SENSO |
14 |
|
Datasheet |
- | Bulk | Active | Gravity | Sensor | Air Quality | SGP40 | Board(s), Cable(s) |
|

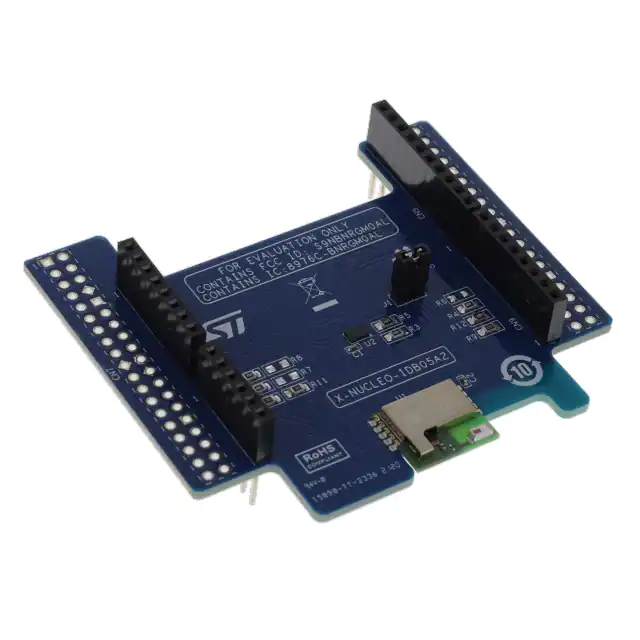

X-NUCLEO-IDB05A2BLUETOOTH LOW ENERGY EXPANSION B |
68 |
|
Datasheet |
- | Bulk | Active | Nucleo | RF | Bluetooth Low Energy (BLE) | BlueNRG-M0 | Board(s) |
|

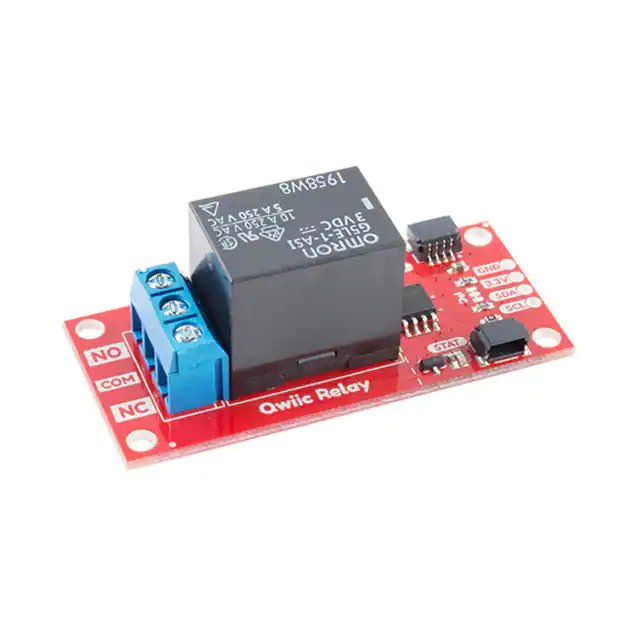

COM-15093QWIIC SINGLE RELAY |
39 |
|
Datasheet |
- | Bulk | Active | Qwiic | Relay | Electromechanical | - | Board(s) |
|
3028DS3231 PRECISION RTC FEATHERWING |
25 |
|
Datasheet |
- | Bulk | Active | Feather | Clock Timing | Real Time Clock (RTC) | DS3231 | Board(s) |
