LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

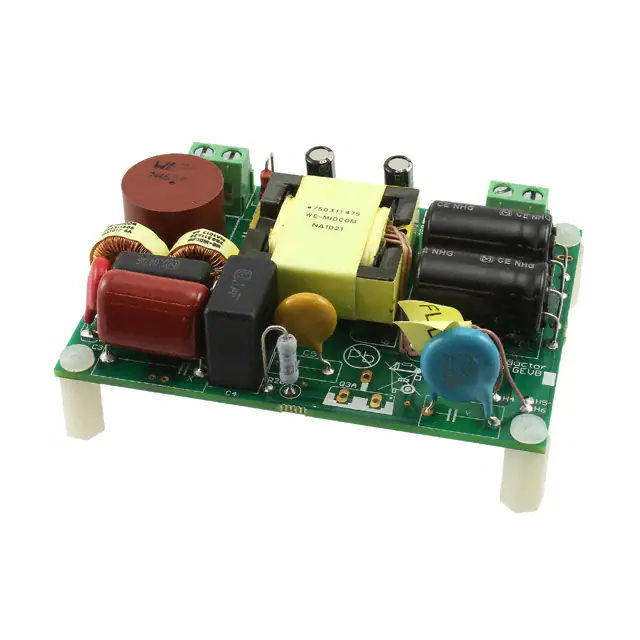

NCL30000LED2GEVBEVAL BOARD FOR NCL30000 |
1 |
|
Datasheet |
- | Bulk | Active | 350mA | 1 Isolated Output | 12V ~ 50V | Dimmable | 180 ~ 265 VAC | Board(s) | NCL30000 |
|

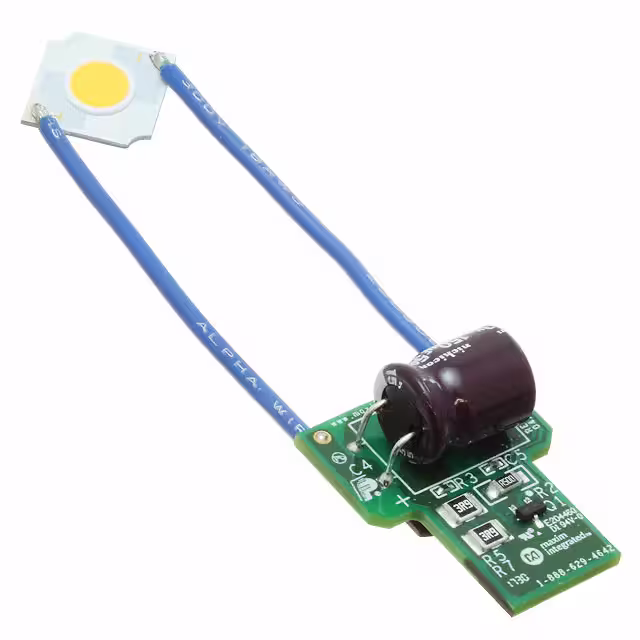

MAX31840EVKIT#EVAL BOARD FOR MAX31840 |
0 |
|
Datasheet |
- | Box | Obsolete | - | 1 Non-Isolated Output | 35V | Dimmable | 9 ~ 13.2 VAC, 6.5V ~ 13.8V | Board(s) | MAX31840 |
|
MAX1698EVKITEVAL BOARD FOR MAX1698 |
0 |
|
Datasheet |
- | Box | Active | 20mA | 1 Non-Isolated Output | - | - | 2.7V ~ 5.5V | Board(s) | MAX1698 |
|

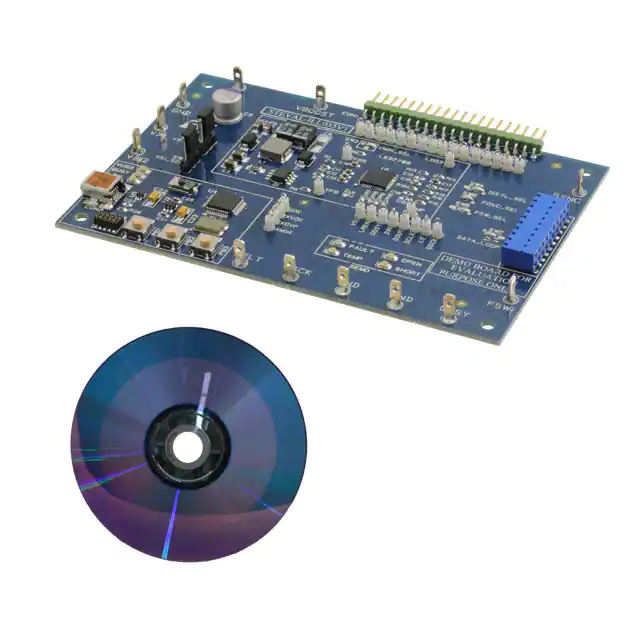

STEVAL-ILL035V1EVAL BOARD FOR LED7708 |
1 |
|
Datasheet |
- | Bulk | Active | 85mA | 16 Non-Isolated Outputs | - | Dimmable | 10V ~ 28V | Board(s) | LED7708 |
|
|
MAX25606EVSYS#EVAL BOARD FOR MAX25606 |
1 |
|
Datasheet |
- | Box | Active | - | 6 Non-Isolated Outputs | - | Dimmable | 4V ~ 60V | Board(s), Cable(s) | MAX25606 |
|
|
AS1106PL_DK_SBEVAL BOARD FOR AS1106 |
0 |
|
Datasheet |
- | Box | Active | - | 8 Non-Isolated Outputs | 2.3V | - | 1.5V ~ 3.5V | Board(s) | AS1106 |
|
|
AS1100 DBEVAL BOARD FOR AS1100 |
0 |
|
Datasheet |
- | Box | Obsolete | - | 8 Non-Isolated Outputs | 2.3V | - | 1.5V ~ 3.5V | Board(s) | AS1100 |
|
NCP1014LEDR2GEVBEVAL BOARD FOR NCP1014 |
0 |
|
Datasheet |
- | Bulk | Obsolete | 360mA | 1 Isolated Output | 24V | - | 90 ~ 265 VAC | Board(s) | NCP1014 |
|
|
NCL30188FLYGEVBEVAL BOARD FOR NCL30188 |
0 |
|
Datasheet |
- | Box | Active | 350mA | 1 Isolated Output | 14V ~ 28V | - | 90 ~ 265 VAC | Board(s) | NCL30188 |
|
|
MAX25561EVKITB#EVAL BOARD FOR MAX25560 |
0 |
|
Datasheet |
- | Bulk | Active | 150mA | 6 Non-Isolated Outputs | 42V | Dimmable | 7V ~ 36V | Board(s) | MAX25560 |
|
|
IS31FL3747-CLS4-EBEVAL BOARD FOR IS31FL3747 |
0 |
|
Datasheet |
- | Box | Active | - | 12 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | IS31FL3747 |
|
|
ADP1655-EVALZEVAL BOARD FOR ADP1655 |
0 |
|
Datasheet |
- | Box | Obsolete | 500mA | 1 Non-Isolated Output | 4.9V | - | 2.7V ~ 5.5V | Board(s) | ADP1655 |
|
|
AS1116-QF_DK_ST BREVAL BOARD FOR AS1116 |
0 |
|
Datasheet |
- | Box | Obsolete | - | 8 Non-Isolated Outputs | - | - | 2.7V ~ 5.5V | Board(s) | AS1116 |
|
|
AS1116-QF_DK_ST GREVAL BOARD FOR AS1116 |
0 |
|
Datasheet |
- | Box | Obsolete | - | 8 Non-Isolated Outputs | - | - | 2.7V ~ 5.5V | Board(s) | AS1116 |
|

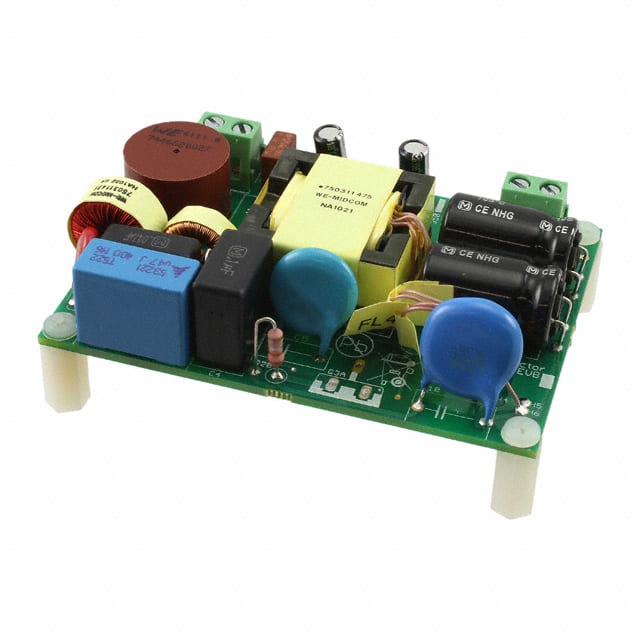

NCL30000LED1GEVBEVAL BOARD FOR NCL30000 |
0 |
|
Datasheet |
- | Bulk | Obsolete | 350mA | 1 Isolated Output | 12V ~ 50V | Dimmable | 90 ~ 135 VAC | Board(s) | NCL30000 |
|
|
EVL6564H-25W-BBEVAL BOARD FOR L6564H |
0 |
|
Datasheet |
- | Bulk | Active | 350mA | 1 Non-Isolated Output | - | - | 85 ~ 265 VAC | Board(s) | L6564H |
|

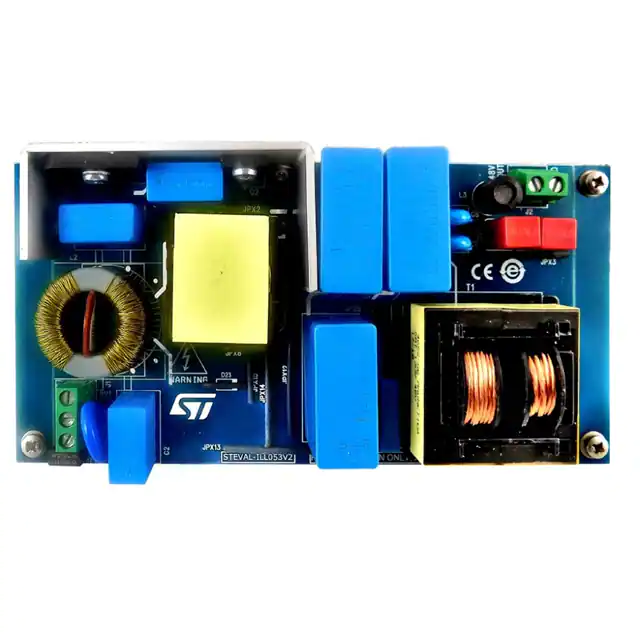

STEVAL-ILL053V2EVAL BOARD FOR L6562AT L6599AT |
1 |
|
Datasheet |
- | Bulk | Active | 2.7A | 1 Isolated Output | 48V | - | 85 ~ 305 VAC | Board(s) | L6562AT, L6599AT |
|
APEK80606KEV-01-MHEVAL BOARD FOR A80606 |
1 |
|
Datasheet |
- | Bulk | Obsolete | 180mA | 6 Non-Isolated Outputs | - | Dimmable | 4.5V ~ 40V | Board(s) | A80606 |
|
REFICL5102U130WCCTOBO1EVAL BOARD FOR ICL5102 |
0 |
|
Datasheet |
- | Bulk | Active | 1.75A | 1 Isolated Output | 38V ~ 76V | Dimmable | 90 ~ 305 VAC | Board(s) | ICL5102 |
|
CY3267EVAL BOARD FOR CY8CLEDXX |
0 |
|
Datasheet |
PowerPSOC™ | Box | Obsolete | 1A | 4 Non-Isolated Outputs | 32V | Dimmable | 32V | Board(s), Cable(s), Power Supply, Accessories | CY8CLEDxx |
