FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDZ204PMOSFET P-CH 20V 4.5A 9BGA |
4,474 |
|
Datasheet |
PowerTrench® | 9-WFBGA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 2.5V, 4.5V | 45mOhm @ 4.5A, 4.5V | 1.5V @ 250µA | 13 nC @ 4.5 V | ±12V | 884 pF @ 10 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 9-BGA (2x2.1) |
|
|
FDZ299PMOSFET P-CH 20V 4.6A 9BGA |
5,095 |
|
Datasheet |
PowerTrench® | 9-WFBGA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.6A (Ta) | 2.5V, 4.5V | 55mOhm @ 4.6A, 4.5V | 1.5V @ 250µA | 9 nC @ 4.5 V | ±12V | 742 pF @ 10 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 9-BGA (2x2.1) |
|
NTHD5904NT1MOSFET N-CH 20V 2.5A CHIPFET |
2,054 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 2.5V, 4.5V | 65mOhm @ 3.3A, 4.5V | 1.2V @ 250µA | 6 nC @ 4.5 V | ±8V | 465 pF @ 16 V | - | 640mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | ChipFET™ |
|
FDC3512_F095MOSFET N-CH 80V 3A SUPERSOT6 |
8,983 |
|
Datasheet |
PowerTrench® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 3A (Ta) | 6V, 10V | 77mOhm @ 3A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 634 pF @ 40 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
|
SIB415DK-T1-GE3MOSFET P-CH 30V 9A PPAK SC75-6 |
4,757 |
|
- |
TrenchFET® | PowerPAK® SC-75-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Tc) | 4.5V, 10V | 87mOhm @ 4.17A, 10V | 3V @ 250µA | 10.05 nC @ 10 V | ±20V | 295 pF @ 15 V | - | 2.4W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-75-6 |
|
SI2311DS-T1-GE3MOSFET P-CH 8V 3A SOT23-3 |
2,836 |
|
- |
TrenchFET® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 3A (Ta) | 1.8V, 4.5V | 45mOhm @ 3.5A, 4.5V | 800mV @ 250µA | 12 nC @ 4.5 V | ±8V | 970 pF @ 4 V | - | 710mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|

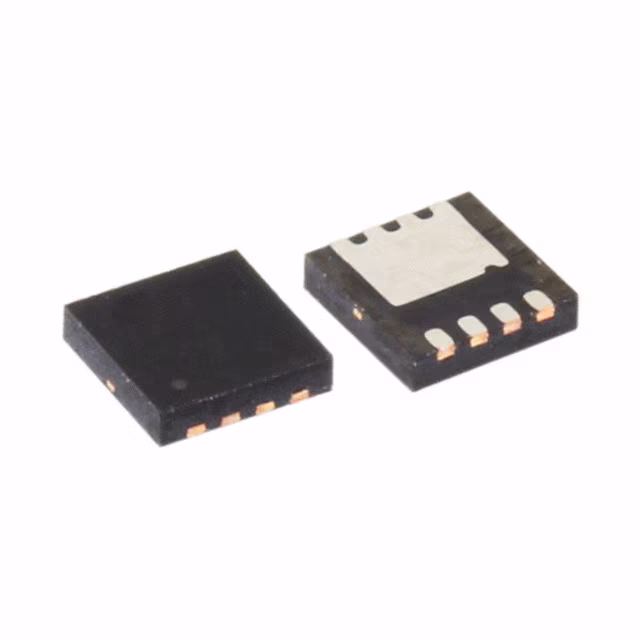

FDMC8878_F126MOSFET N-CH 30V 9.6A/16.5A 8MLP |
5,908 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.6A (Ta), 16.5A (Tc) | 4.5V, 10V | 14mOhm @ 9.6A, 10V | 3V @ 250µA | 26 nC @ 10 V | ±20V | 1230 pF @ 15 V | - | 2.1W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|
|
MCG25P05YHE3-TPMOSFET |
3,033 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 48 V | 25A (Tc) | 4.5V, 10V | 45mOhm @ 20A, 10V | 2.7V @ 250µA | 17.4 nC @ 10 V | ±20V | 1024 pF @ 30 V | - | 74W (Tj) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3333 |
|
2SK3018T106MOSFET N-CH 30V 100MA UMT3 |
3,440 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 2.5V, 4V | 8Ohm @ 10mA, 4V | 1.5V @ 100µA | - | ±20V | 13 pF @ 5 V | - | 200mW (Ta) | 150°C (TJ) | - | - | Surface Mount | UMT3 |
|
SSM3K17SU,LFMOSFET N-CH 50V 100MA USM |
6,102 |
|
- |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 100mA (Ta) | - | 20Ohm @ 10mA, 4V | 1.5V @ 1µA | - | - | 7 pF @ 3 V | - | 150mW (Ta) | - | - | - | Surface Mount | USM |
|
AO4578MOSFET N-CH 30V 20A 8SOIC |
2,190 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta) | 4.5V, 10V | 5.7mOhm @ 20A, 10V | 2.2V @ 250µA | 25 nC @ 10 V | ±20V | 1128 pF @ 15 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SK8403180LMOSFET N-CH 30V 12A 8HSSO |
6,645 |
|
Datasheet |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 39A (Tc) | 4.5V, 10V | 7.1mOhm @ 8.5A, 10V | 3V @ 1.45mA | 10 nC @ 4.5 V | ±20V | 1680 pF @ 10 V | - | 2W (Ta), 19W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSSO8-F1-B |
|
|
TSM900N06CWMOSFET N-CHANNEL 60V 6A SOT223 |
8,656 |
|
- |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6A (Tc) | 4.5V, 10V | 90mOhm @ 3A, 10V | 2.5V @ 250µA | 11 nC @ 10 V | ±20V | 525 pF @ 30 V | - | 7.8W (Tc) | 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
ZVN2106GTCMOSFET N-CH 60V 710MA SOT223 |
5,345 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 710mA (Ta) | 10V | 2Ohm @ 1A, 10V | 2.4V @ 1mA | - | ±20V | 75 pF @ 18 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
|
ZVN2110GTCMOSFET N-CH 100V 500MA SOT223 |
6,759 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 500mA (Ta) | 10V | 4Ohm @ 1A, 10V | 2.4V @ 1mA | - | ±20V | 75 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
|
ZVN2120GTCMOSFET N-CH 200V 320MA SOT223 |
7,758 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 320mA (Ta) | 10V | 10Ohm @ 250mA, 10V | 3V @ 1mA | - | ±20V | 85 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
|
ZVNL110GTCMOSFET N-CH 100V 600MA SOT223 |
8,516 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 600mA (Ta) | 5V, 10V | 3Ohm @ 500mA, 10V | 1.5V @ 1mA | - | ±20V | 75 pF @ 25 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
|
ZVNL120GTCMOSFET N-CH 200V 320MA SOT223 |
9,305 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 320mA (Ta) | 3V, 5V | 10Ohm @ 250mA, 5V | 1.5V @ 1mA | - | ±20V | 85 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
AON6572MOSFET N-CH 30V 36A/85A 8DFN |
2,977 |
|
Datasheet |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 36A (Ta), 85A (Tc) | 4.5V, 10V | 3.2mOhm @ 20A, 10V | 2V @ 250µA | 65 nC @ 10 V | ±12V | 3290 pF @ 15 V | - | 6.2W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
MCG35P04A-TPMOSFET |
8,969 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 35A | 4.5V, 10V | 20mOhm @ 15A, 10V | 2.5V @ 250µA | 57 nC @ 10 V | ±20V | 2511 pF @ 25 V | - | 59W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333 |
