Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKS4U021505B00MH00CAP FILM 0.015UF 20% 2KVDC RAD |
2,361 |
|
Datasheet |
Radial | 0.015 µF | ±20% | 400V | 2000V (2kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4U021505B00MB00CAP FILM 0.015UF 20% 2KVDC RAD |
5,382 |
|
Datasheet |
Radial | 0.015 µF | ±20% | 400V | 2000V (2kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4U021505B00MD00CAP FILM 0.015UF 20% 2KVDC RAD |
9,827 |
|
Datasheet |
Radial | 0.015 µF | ±20% | 400V | 2000V (2kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
LDBCB2220JC5N0CAP FILM SMD PPS |
6,989 |
|
Datasheet |
1210 (3225 Metric) | 0.022 µF | ±5% | 40V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.059" (1.50mm) | Solder Pads | - | General Purpose | - | - |
|
BFC237075154CAP FILM 0.15UF 10% 63VDC RADIAL |
3,467 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
|
EFX1A48K104B112LHCAP EFX1A 480VAC 0.1UF 2LEADS |
2,366 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
|
ECW-FD2W185K4CAP FILM 1.8UF 10% 450VDC RADIAL |
7,429 |
|
Datasheet |
Radial | 1.8 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.398" W (17.50mm x 10.10mm) | 0.720" (18.30mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R73UI1150JE00MCAP FILM METAL RAD POLYPROP |
4,047 |
|
Datasheet |
Radial | 1500 pF | ±20% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
FKS3F021503D00JSSDFKS 3 0.015 F 250 VDC 4X9.5X13 P |
3,951 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKS3F023303G00JSSDFKS 3 0.033 F 250 VDC 6X12X13 PC |
5,612 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKS3F022203F00JSSDFKS 3 0.022 F 250 VDC 5X11X13 PC |
6,210 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|

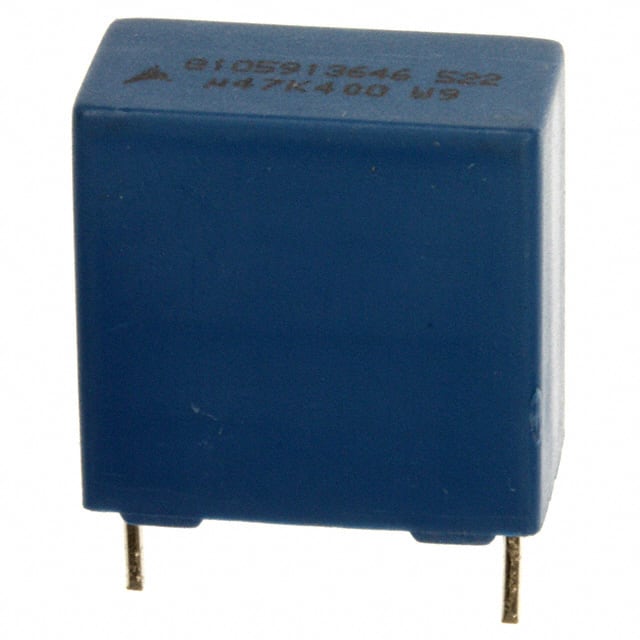

B32522C6474K289CAP FILM 0.47UF 10% 400VDC RAD |
4,212 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
B32642B0563JCAP FILM 0.056UF 5% 1KVDC RADIAL |
8,433 |
|
Datasheet |
Radial | 0.056 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
B32643B0683K00068NF 10% 1000V MMKP WOUND BO |
3,527 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 17 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R73UI1150SE00JCAP FILM METAL RAD POLYPROP |
6,336 |
|
Datasheet |
Radial | 1500 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R46KI21505101MCAP FILM SAFETY/EMI SUPP RAD |
3,101 |
|
Datasheet |
Radial | 0.015 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
 Series Style B 18x6.jpg)
|
ECW-F2564HABCAP FILM 0.56UF 3% 250VDC RADIAL |
2,496 |
|
Datasheet |
Radial | 0.56 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713" L x 0.272" W (18.10mm x 6.90mm) | 0.705" (17.90mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
MKP1V011505B00KSC9MKP 10 1500 PF 2500 VDC 6X15X26. |
9,180 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F462BK563K1K0CCAP FILM POLYPROP RAD |
4,409 |
|
Datasheet |
Radial | 0.056 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.531" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
MKP1841322404MCAP FILM 0.022UF 5% 400VDC RAD |
8,509 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.512" L x 0.217" W (13.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
