Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32672P5105J000CAP FILM 1UF 5% 520VDC RADIAL |
9,256 |
|
Datasheet |
Radial | 1 µF | ±5% | 200V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
MKP1F032205B00MB00MKP 10 0.22 F 250 VDC 6X15X26.5 |
2,340 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1J022205D00MSSDFKP 1 0.022 F 630 VDC 7X16.5X26. |
5,931 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1F032205B00MD00MKP 10 0.22 F 250 VDC 6X15X26.5 |
4,638 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKX14W26804J00JSC9MKP-X1 R 0.068 F 440 VAC 9X16X18 |
3,397 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKY22W26804J00JSC9MKP-Y2 0.068 F 300 VAC 9X16X18 P |
9,070 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1F032205B00MH00MKP 10 0.22 F 250 VDC 6X15X26.5 |
9,162 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1F032205B00MJ00MKP 10 0.22 F 250 VDC 6X15X26.5 |
8,601 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4G034705B00MSC9CAP FILM 0.47UF 20% 400VDC RAD |
5,517 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
F872BP563M480ACAP FILM POLYPROP RAD X1 |
7,784 |
|
Datasheet |
Radial | 0.056 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP1O122205B00JD00MKP 10 0.022 F 1000 VDC 6X15X26. |
4,369 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1O122205B00JB00MKP 10 0.022 F 1000 VDC 6X15X26. |
4,494 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1O122205B00JH00MKP 10 0.022 F 1000 VDC 6X15X26. |
7,365 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1O122205B00JJ00MKP 10 0.022 F 1000 VDC 6X15X26. |
5,342 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LDECC1680KA5N00CAP FILM SMD PEN |
2,614 |
|
Datasheet |
1812 (4532 Metric) | 6800 pF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

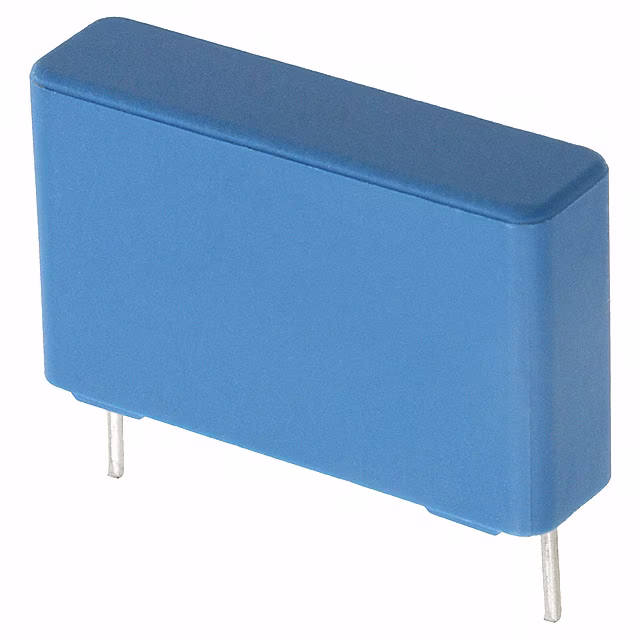

B32673P6684K000CAP FILM 0.68UF 10% 630VDC RAD |
3,044 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Power Factor Correction (PFC) | - | - |
|
|
F461DB684J250RCAP FILM POLYPROP RAD |
5,381 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F462DB333M1L2LCAP |
7,773 |
|
- |
Radial | 0.033 µF | ±20% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
LDEED3150KA5N00CAP FILM SMD PEN |
4,722 |
|
Datasheet |
2220 (5750 Metric) | 0.15 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.075" (1.90mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
SMR5683K50J01L4BULKCAP FILM RAD |
6,290 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
