Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PVC6112CAP FILM 0.012UF 10% 600VDC RAD |
7,377 |
|
Datasheet |
Radial | 0.012 µF | ±10% | 200V | 600V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.402" Dia x 0.902" L (10.20mm x 22.90mm) | - | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
|
F872BS823K480ACAP FILM POLYPROP RAD X1 |
2,320 |
|
Datasheet |
Radial | 0.082 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
MKS4J032205B00JD00CAP FILM 0.22UF 5% 630VDC RADIAL |
3,468 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4J032205B00JB00CAP FILM 0.22UF 5% 630VDC RADIAL |
8,383 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
QXK2E104JTP7ZHFJCAP FILM 0.1UF 5% 250VDC RADIAL |
5,510 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.531" L x 0.209" W (13.50mm x 5.30mm) | 0.587" (14.90mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
QXK2E104JTPTZHCAP FILM 0.1UF 5% 250VDC RADIAL |
8,402 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.531" L x 0.209" W (13.50mm x 5.30mm) | 0.429" (10.90mm) | PC Pins | 0.413" (10.50mm) | General Purpose | - | - |
|
QXK2J153JTPCAP FILM 0.015UF 5% 630VDC RAD |
7,479 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.531" L x 0.185" W (13.50mm x 4.70mm) | 0.425" (10.80mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
QXK2J153JTP7FJCAP FILM 0.015UF 5% 630VDC RAD |
2,190 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.531" L x 0.185" W (13.50mm x 4.70mm) | 0.583" (14.80mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
QXK2J153JTP7ZHFLCAP FILM 0.015UF 5% 630VDC RAD |
2,513 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.217" W (15.50mm x 5.50mm) | 0.591" (15.00mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
|
|
QXK2J153JTPTZHCAP FILM 0.015UF 5% 630VDC RAD |
3,996 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.217" W (15.50mm x 5.50mm) | 0.433" (11.00mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
|
|
F161SL184K063VCAP FILM SMD PET |
2,441 |
|
Datasheet |
2924 (7360 Metric) | 0.18 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.126" (3.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
F462BY124K1K0ACAP FILM POLYPROP RAD |
6,219 |
|
Datasheet |
Radial | 0.12 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
SMDTJ02220XA00MT00CAP FILM 0.022UF 20% 300VAC 5040 |
5,771 |
|
Datasheet |
5040 (127102 Metric) | 0.022 µF | ±20% | 300V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.402" W (12.70mm x 10.20mm) | 0.248" (6.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|

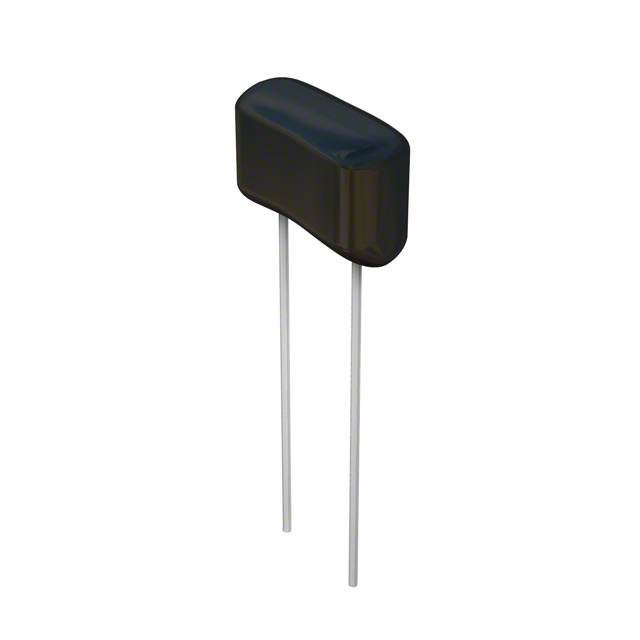

DME4S39K-FCAP FILM 0.039UF 10% 400VDC RAD |
8,199 |
|
Datasheet |
Radial | 0.039 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492" L x 0.193" W (12.50mm x 4.90mm) | 0.315" (8.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
150224J63BBCAP FILM 0.22UF 5% 63VDC AXIAL |
5,684 |
|
Datasheet |
Axial | 0.22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
150153J1000FCCAP FILM 0.015UF 5% 1KVDC AXIAL |
9,823 |
|
Datasheet |
Axial | 0.015 µF | ±5% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.335" Dia x 0.807" L (8.50mm x 20.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
FKS3F026804D00KB00FKS 3 0.068 F 250 VDC 7X14X18 PC |
6,062 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKS3F026804D00KF00FKS 3 0.068 F 250 VDC 7X14X18 PC |
6,840 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKS3F026804D00KD00FKS 3 0.068 F 250 VDC 7X14X18 PC |
6,018 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKS3F026804D00KJ00FKS 3 0.068 F 250 VDC 7X14X18 PC |
7,570 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
