Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC233925473CAP FILM 0.047UF 20% 630VDC RAD |
9,607 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
BFC233925682CAP FILM 6800PF 20% 630VDC RAD |
3,824 |
|
Datasheet |
Radial | 6800 pF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
MKP385351085JC02R0CAP FILM 0.051UF 5% 850VDC RAD |
4,302 |
|
Datasheet |
Radial | 0.051 µF | ±5% | 300V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | - | - | PC Pins | 0.295" (7.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385412025JC02W0CAP FILM 0.12UF 5% 250VDC RADIAL |
8,040 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.453" (11.50mm) | PC Pins | 0.295" (7.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385E36885JF02W0CAP FILM 0.068UF 5% 850VDC RAD |
9,291 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 300V | 850V | Polypropylene (PP), Metallized | 54 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
F461DM824M400Z.820UF 400V |
4,337 |
|
Datasheet |
Radial | 0.82 µF | ±20% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F881BY683M300ZCAP FILM POLYPROP RAD Y2 |
7,813 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
167104J250C-FCAP FILM 0.1UF 5% 250VDC RADIAL |
8,054 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|

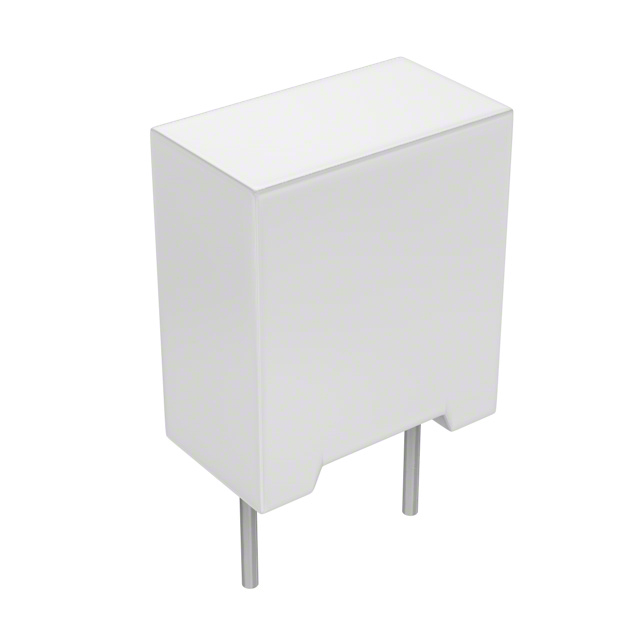

167153K630D-FCAP FILM 0.015UF 10% 630VDC RAD |
6,831 |
|
Datasheet |
Radial | 0.015 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
R71VI41005030MCAP FILM METAL RAD POLYPROP |
7,992 |
|
Datasheet |
Radial | 1 µF | ±20% | 250V | 520V | Polypropylene (PP), Metallized | 72 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
ECW-F6473RJLCAP FILM 0.047UF 5% 630VDC RAD |
9,468 |
|
Datasheet |
Radial | 0.047 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.252" W (15.50mm x 6.40mm) | 0.622" (15.80mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
SMDNF02470TA00MQ00SMD-PEN 0.047 F 250 VDC 7.2X6.1X |
5,364 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R49AN3220JB01KCAP FILM SAFETY/EMI SUPP RAD |
4,418 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F872BR563J480Z.056UF 480V |
3,998 |
|
- |
Radial | 0.056 µF | ±5% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
125MKP275KHCAP FILM 1.2UF 10% 310VAC RADIAL |
4,737 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.354" W (31.00mm x 9.00mm) | 0.701" (17.80mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
185MKP275KGCAP FILM 1.8UF 10% 310VAC RADIAL |
9,689 |
|
Datasheet |
Radial | 1.8 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.492" W (26.00mm x 12.50mm) | 0.917" (23.30mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKS4B042202F00JSC9CAP FILM 2.2UF 5% 50VDC RADIAL |
8,238 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.406" L x 0.224" W (10.30mm x 5.70mm) | 0.492" (12.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4B042202F00JH00CAP FILM 2.2UF 5% 50VDC RADIAL |
2,122 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.406" L x 0.224" W (10.30mm x 5.70mm) | 0.492" (12.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4B042202F00JJ00CAP FILM 2.2UF 5% 50VDC RADIAL |
7,896 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.406" L x 0.224" W (10.30mm x 5.70mm) | 0.492" (12.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP383247140JF02W0CAP FILM 4700PF 5% 1.4KVDC RAD |
7,116 |
|
Datasheet |
Radial | 4700 pF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
