Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC246841823CAP FILM 0.082UF 5% 630VDC RAD |
3,109 |
|
Datasheet |
Radial | 0.082 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.287" W (17.50mm x 7.30mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
F871BZ254K330ACAP FILM POLYPROP RAD X1 |
6,164 |
|
Datasheet |
Radial | 0.25 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.472" W (18.00mm x 12.00mm) | 0.787" (20.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
F871BZ274M330ACAP FILM POLYPROP RAD X1 |
3,492 |
|
Datasheet |
Radial | 0.27 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.472" W (18.00mm x 12.00mm) | 0.787" (20.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
SMDNC03100QA00MS00SMD-PEN 0.1 F 63 VDC 5.7X5.1X3.5 |
4,970 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SMDND03100QA00MS00SMD-PEN 0.1 F 100 VDC 5.7X5.1X3. |
4,375 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DMM4S68K-FCAP FILM 0.068UF 10% 400VDC RAD |
4,966 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
160183J630D-FCAP FILM 0.018UF 5% 630VDC RAD |
9,706 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
160274J100D-FCAP FILM 0.27UF 5% 100VDC RADIAL |
7,631 |
|
Datasheet |
Radial | 0.27 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
160333J400D-FCAP FILM 0.033UF 5% 400VDC RAD |
7,039 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
160333K400D-FCAP FILM 0.033UF 10% 400VDC RAD |
2,301 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
160392J1000D-FCAP FILM 3900PF 5% 1KVDC RADIAL |
4,388 |
|
Datasheet |
Radial | 3900 pF | ±5% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
160393J400D-FCAP FILM 0.039UF 5% 400VDC RAD |
5,038 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
160472J1000D-FCAP FILM 4700PF 5% 1KVDC RADIAL |
2,028 |
|
Datasheet |
Radial | 4700 pF | ±5% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
160473J400F-FCAP FILM 0.047UF 5% 400VDC RAD |
9,025 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
160562J1000D-FCAP FILM 5600PF 5% 1KVDC RADIAL |
5,042 |
|
Datasheet |
Radial | 5600 pF | ±5% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
160562K630C-FCAP FILM 5600PF 10% 630VDC RAD |
4,137 |
|
Datasheet |
Radial | 5600 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
160682J630C-FCAP FILM 6800PF 5% 630VDC RADIAL |
3,559 |
|
Datasheet |
Radial | 6800 pF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
160823K250D-FCAP FILM 0.082UF 10% 250VDC RAD |
3,385 |
|
Datasheet |
Radial | 0.082 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|

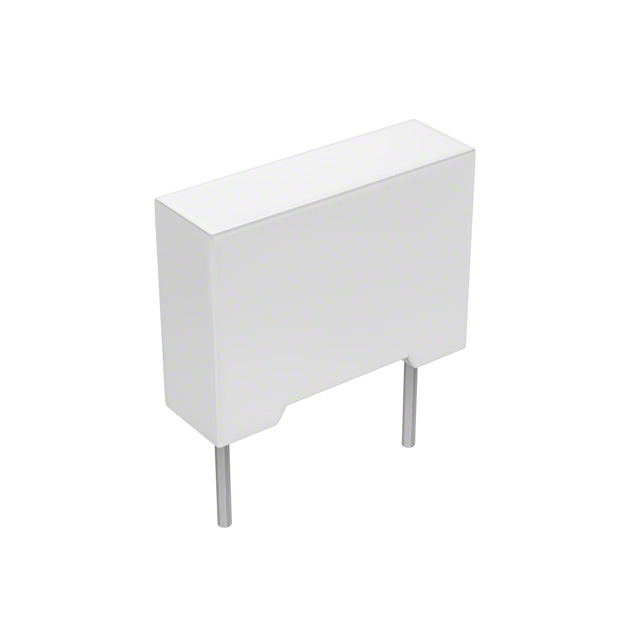

171103J400C-FCAP FILM 10000PF 5% 400VDC RAD |
4,249 |
|
Datasheet |
Radial | 10000 pF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|

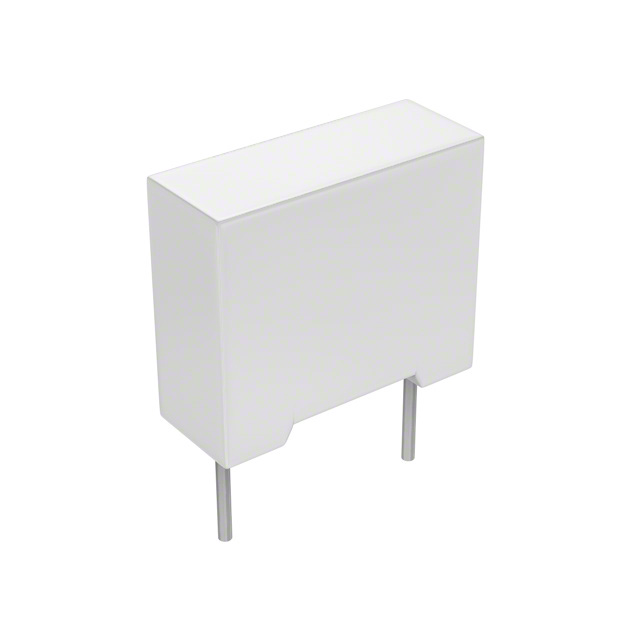

171103J630D-FCAP FILM 10000PF 5% 630VDC RAD |
9,089 |
|
Datasheet |
Radial | 10000 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
