Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

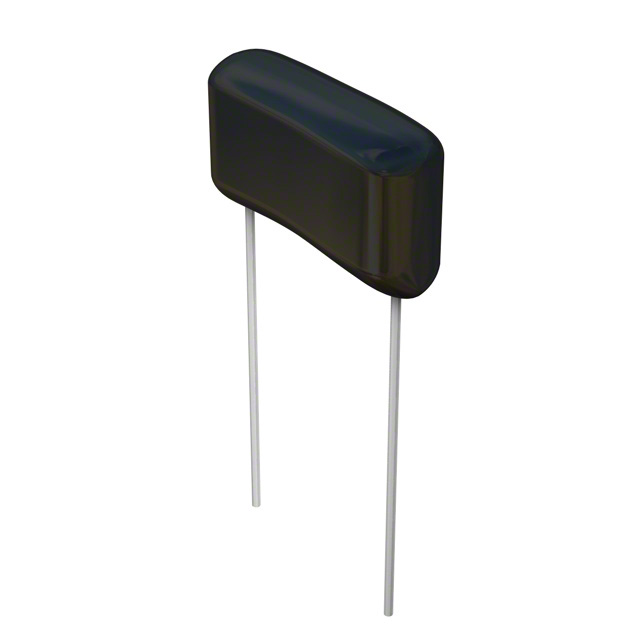

DME4P12K-FCAP FILM 0.12UF 10% 400VDC RAD |
2,730 |
|
Datasheet |
Radial | 0.12 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
DMT1D22K-FCAP FILM 2200PF 10% 100VDC RAD |
5,785 |
|
Datasheet |
Radial | 2200 pF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.209" W (13.00mm x 5.30mm) | 0.448" (11.37mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R73PI2330SE00JCAP FILM METAL RAD POLYPROP |
2,734 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
MKP385E2682BKI02W0CAP FILM 6800PF 10% 2.5KVDC RAD |
2,314 |
|
Datasheet |
Radial | 6800 pF | ±10% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 386 mOhms | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.772" (19.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200, Y2 | High Temperature |
|
BFC2370FB104CAP FILM 0.1UF 10% 400VDC RADIAL |
9,370 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 160V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
|
FKS3F026804D00JSC9FKS 3 0.068 F 250 VDC 7X14X18 PC |
5,910 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SMDIC02680TA00MS00SMD-PPS 0.068 F 63 VDC 7.2X6.1X3 |
7,440 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SMDID02680TA00MS00SMD-PPS 0.068 F 100 VDC 7.2X6.1X |
9,471 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F462BY563K1K6RCAP FILM POLYPROP RAD |
7,034 |
|
Datasheet |
Radial | 0.056 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
FKP4J031005G00MSC9FKP 4 0.1 F 630 VDC 10.5X19X26.5 |
4,758 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1G033306A00MSC9MKP 10 0.33 F 400 VDC 9X19X31.5 |
8,688 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LDEQD1680KA5N00CAP FILM SMD PEN |
3,167 |
|
Datasheet |
2220 (5750 Metric) | 6800 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
FKP4J026805F00JJ00FKP 4 0.068 F 630 VDC 8.5X18.5X2 |
3,774 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP4J026805F00JB00FKP 4 0.068 F 630 VDC 8.5X18.5X2 |
7,366 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP4J026805F00JD00FKP 4 0.068 F 630 VDC 8.5X18.5X2 |
7,508 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP4J026805F00JH00FKP 4 0.068 F 630 VDC 8.5X18.5X2 |
5,445 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A50DF3330AA60KCAP FILM AXL |
2,699 |
|
Datasheet |
Axial | 0.33 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
MKP1T025605G00KJ00MKP 10 0.056 F 1600 VDC 10.5X19X |
3,161 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1T026805G00KJ00MKP 10 0.068 F 1600 VDC 10.5X19X |
5,709 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1T025605G00KB00MKP 10 0.056 F 1600 VDC 10.5X19X |
9,062 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
