Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKS4G041506B00KJ00CAP FILM 1.5UF 10% 400VDC RADIAL |
2,837 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4G041506B00KH00CAP FILM 1.5UF 10% 400VDC RADIAL |
8,883 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
F161ST105K050VV0411 50V |
9,902 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R76QN2820CK30KCAP FILM AUTO POLYPROP RAD |
4,862 |
|
Datasheet |
Radial | 0.082 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
FKP1R023306B00KJ00FKP 1 0.033 F 1250 VDC 11X21X31. |
8,607 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1R023306B00KH00FKP 1 0.033 F 1250 VDC 11X21X31. |
2,448 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP383324100JC02R0CAP FILM 0.024UF 5% 1KVDC RADIAL |
8,418 |
|
Datasheet |
Radial | 0.024 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.551" (14.00mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
|
F881DO154K300RCAP FILM POLYPROP RAD Y2 |
8,747 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
160273J630F-FCAP FILM 0.027UF 5% 630VDC RAD |
8,481 |
|
Datasheet |
Radial | 0.027 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
160474J100E-FCAP FILM 0.47UF 5% 100VDC RADIAL |
6,166 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|

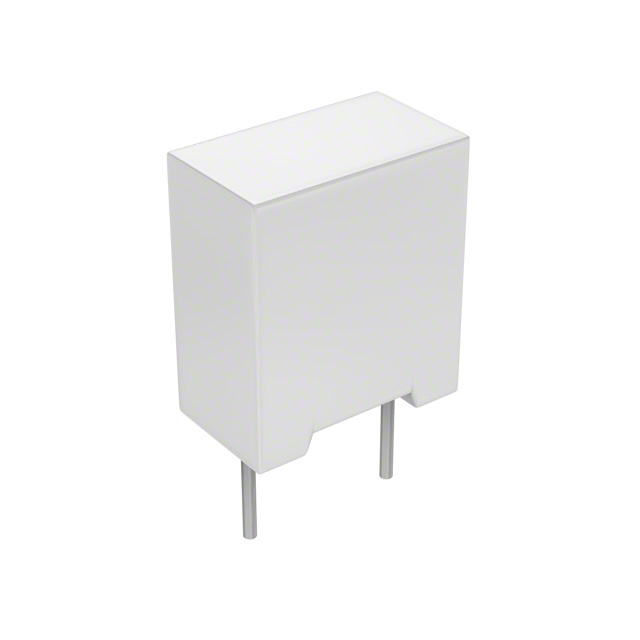

171154K160E-FCAP FILM 0.15UF 10% 160VDC RAD |
3,388 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
171223K630F-FCAP FILM 0.022UF 10% 630VDC RAD |
4,444 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
MKP385324160JI02W0CAP FILM 0.024UF 5% 1.6KVDC RAD |
2,054 |
|
Datasheet |
Radial | 0.024 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKPF3Y41506B00KSSDMKP 4F 1.5 F 230 VAC 11X21X31.5 |
2,937 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKPF1W41506B00KSSDMKP 4F 1.5 F 275 VAC 11X21X31.5 |
6,526 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1840422635MCAP FILM 0.22UF 10% 630VDC RAD |
5,818 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1841239135CAP FILM 3900PF 10% 1.6KVDC RAD |
7,515 |
|
Datasheet |
Radial | 3900 pF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1841239136CAP FILM 3900PF 20% 1.6KVDC RAD |
2,121 |
|
Datasheet |
Radial | 3900 pF | ±20% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
F872DM154K480LCAP FILM POLYPROP RAD X1 |
2,059 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
BFC233866122CAP FILM 1200PF 20% 1KVDC RADIAL |
9,932 |
|
Datasheet |
Radial | 1200 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
