Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H16153HVBCAP FILM 0.015UF 3% 1.6KVDC RAD |
2,387 |
|
Datasheet |
Radial | 0.015 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.374" W (23.00mm x 9.50mm) | 0.906" (23.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16163HVBCAP FILM 0.016UF 3% 1.6KVDC RAD |
4,216 |
|
Datasheet |
Radial | 0.016 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.394" W (23.00mm x 10.00mm) | 0.925" (23.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16183HVBCAP FILM 0.018UF 3% 1.6KVDC RAD |
3,921 |
|
Datasheet |
Radial | 0.018 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.413" W (23.00mm x 10.50mm) | 0.965" (24.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

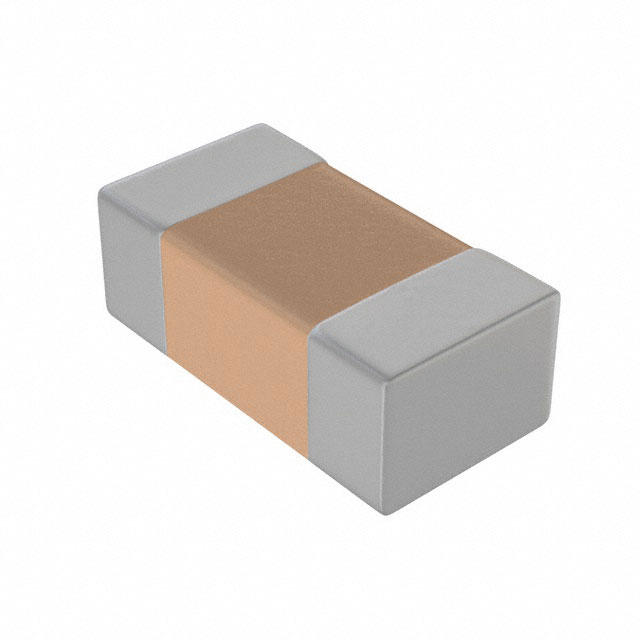

LDBAA2390JC5N0CAP FILM 0.039UF 5% 16VDC 1206 |
4,956 |
|
Datasheet |
1206 (3216 Metric) | 0.039 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
|
|
SMDID03330VA00MR00SMD-PPS 0.33 F 100 VDC 10.2X7.6X |
3,019 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B32562H1475K189CAP FILM 4.7UF 10% 100VDC 2DIP |
6,225 |
|
Datasheet |
2-DIP | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.287" W (16.50mm x 7.30mm) | 0.417" (10.60mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
B32562J1475K189CAP FILM 4.7UF 10% 100VDC 2DIP |
4,071 |
|
Datasheet |
2-DIP | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
BFC237516682CAP FILM 6800PF 5% 630VDC RADIAL |
7,679 |
|
Datasheet |
Radial | 6800 pF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237546471CAP FILM 470PF 5% 2KVDC RADIAL |
8,184 |
|
Datasheet |
Radial | 470 pF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237547221CAP FILM 220PF 3.5% 2KVDC RADIAL |
7,884 |
|
Datasheet |
Radial | 220 pF | ±3.5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
R82CC4470CK30KCAP FILM 4.7UF 10% 50VDC RADIAL |
4,868 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
BFC242005102CAP FILM 0.0051UF 5% 630VDC RAD |
6,690 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | Long Life |
|
|
BFC242005602CAP FILM 0.0056UF 5% 630VDC RAD |
8,846 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | Long Life |
|
|
F461BY275K160ACAP FILM POLYPROP RAD |
6,162 |
|
Datasheet |
Radial | 2.7 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
MKS4U031006D00MJ00CAP FILM 0.1UF 20% 2KVDC RADIAL |
2,270 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 400V | 2000V (2kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4U031006D00MH00CAP FILM 0.1UF 20% 2KVDC RADIAL |
6,865 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 400V | 2000V (2kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
MKP1839124632GCAP FILM 240PF 2% 630VDC AXIAL |
9,516 |
|
Datasheet |
Axial | 240 pF | ±2% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839136632GCAP FILM 360PF 2% 630VDC AXIAL |
8,984 |
|
Datasheet |
Axial | 360 pF | ±2% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839143632GCAP FILM 430PF 2% 630VDC AXIAL |
6,373 |
|
Datasheet |
Axial | 430 pF | ±2% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839151632GCAP FILM 510PF 2% 630VDC AXIAL |
2,914 |
|
Datasheet |
Axial | 510 pF | ±2% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
