Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC242013603CAP FILM 0.036UF 2% 630VDC RAD |
5,181 |
|
Datasheet |
Radial | 0.036 µF | ±2% | 160V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
A50MQ3680AA60JCAP FILM AXL |
7,168 |
|
Datasheet |
Axial | 0.68 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" Dia x 1.102" L (10.00mm x 28.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
BFC241971104CAP FILM 0.11UF 2% 400VDC RADIAL |
2,298 |
|
Datasheet |
Radial | 0.11 µF | ±2% | 125V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
BFC241862404CAP FILM 0.24UF 5% 250VDC RADIAL |
3,986 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
|
R60ER5150AA40JCAP FILM AUTOMOTIVE |
3,039 |
|
Datasheet |
Radial | 15 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
MKP1845422404CAP FILM 0.22UF 5% 400VDC AXIAL |
9,235 |
|
Datasheet |
Axial | 0.22 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.472" Dia x 1.142" L (12.00mm x 29.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
MKP1839415134HQGCAP FILM 0.15UF 5% 1.6KVDC AXIAL |
3,059 |
|
Datasheet |
Axial | 0.15 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.551" Dia x 1.240" L (14.00mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP1839418084HQGCAP FILM 0.18UF 5% 850VDC AXIAL |
9,589 |
|
Datasheet |
Axial | 0.18 µF | ±5% | 400V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.453" Dia x 1.240" L (11.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP1839418124HQGCAP FILM 0.18UF 5% 1.25KVDC AXL |
4,768 |
|
Datasheet |
Axial | 0.18 µF | ±5% | 425V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.453" Dia x 1.240" L (11.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP1841422254CAP FILM 0.22UF 5% 250VDC RADIAL |
9,076 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1840515164CAP FILM 1.5UF 5% RADIAL |
5,075 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
BFC237512273CAP FILM 0.027UF 5% 630VDC RAD |
4,146 |
|
Datasheet |
Radial | 0.027 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
BLH335K801A052DC LINK, THB, 85/85, AEC-Q200 |
3,508 |
|
Datasheet |
Radial | 3.3 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 25 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
BLH205K122A042DC LINK, THB, 85/85, AEC-Q200 |
3,104 |
|
Datasheet |
Radial | 2 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 32.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 0.996" (25.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
MKP1T033307E00MSSDMKP 10 0.33 F 1600 VDC 17X29X41. |
2,993 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1D042706G00MSSDMKP 10 2.7 F 100 VDC 17X29X31.5 |
3,654 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1D043306G00MSSDMKP 10 3.3 F 100 VDC 17X29X31.5 |
7,291 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKT1822522256CAP FILM 2.2UF 20% 250VDC RADIAL |
7,495 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
BFC2373GE105MICAP FILM 1UF 10% 630VDC RADIAL |
5,600 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|

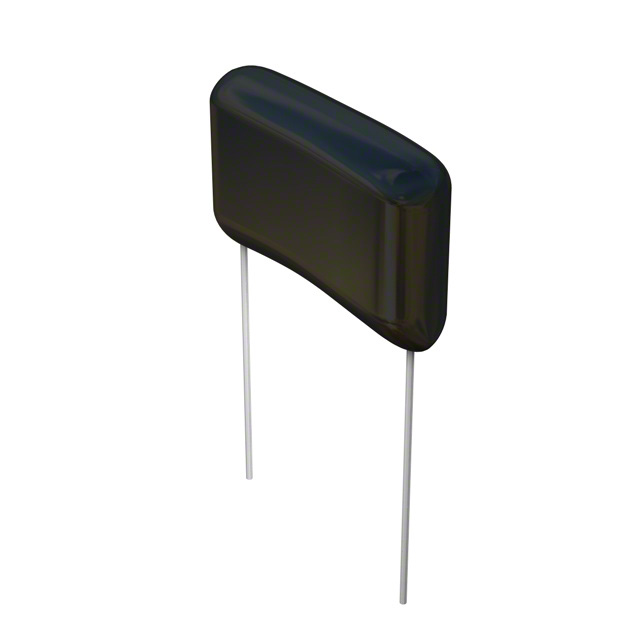

DME1W3P9K-FCAP FILM 3.9UF 10% 100VDC RADIAL |
3,516 |
|
Datasheet |
Radial | 3.9 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.646" (16.40mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
