Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKX14W36807E00JSC9MKP-X1 R 0.68 F 440 VAC 17X29X41 |
2,317 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BFC237390139CAP FILM 0.27UF 5% 400VDC RADIAL |
8,867 |
|
Datasheet |
Radial | - | - | - | - | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
F17724152263CAP FILM 0.15UF 20% 630VDC RAD |
3,385 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKS4U032207E00MSSDCAP FILM 0.22UF 20% 2KVDC RADIAL |
4,325 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 400V | 2000V (2kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP1W031507D00JSSDMKP 10 0.15 F 3000 VDC 15X26X41. |
9,469 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R46KW447000P0KCAP FILM SAFETY/EMI SUPP RAD |
8,371 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R474R410000A1KCAP FILM 1UF 10% 1KVDC RADIAL |
3,451 |
|
Datasheet |
Radial | 1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
BFC246854155CAP FILM 1.5UF 5% 250VDC RADIAL |
6,140 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
BFC247956124CAP FILM 0.12UF 5% 400VDC RADIAL |
2,347 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247966683CAP FILM 0.068UF 5% 630VDC RAD |
7,318 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC236919105CAP FILM 1UF 5% 63VDC RADIAL |
3,550 |
|
Datasheet |
Radial | 1 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
|
BFC238350133CAP FILM 0.013UF 5% 1.6KVDC RAD |
9,796 |
|
Datasheet |
Radial | 0.013 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC238351133CAP FILM 0.013UF 5% 1.6KVDC RAD |
4,329 |
|
Datasheet |
Radial | 0.013 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
MKP4J041507C00JSC9MKP 4 1.5 F 630 VDC 13X24X41.5 P |
6,259 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4R033307C00JSC9MKP 4 0.33 F 1250 VDC 13X24X41.5 |
8,309 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

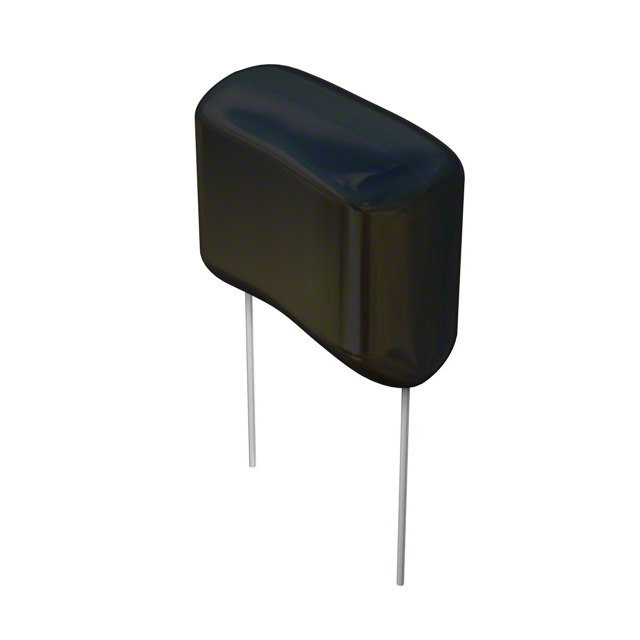

DMM2W2P2K-FCAP FILM 2.2UF 10% 250VDC RADIAL |
4,769 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
DMM6P68K-FCAP FILM 0.68UF 10% 630VDC RAD |
4,916 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|

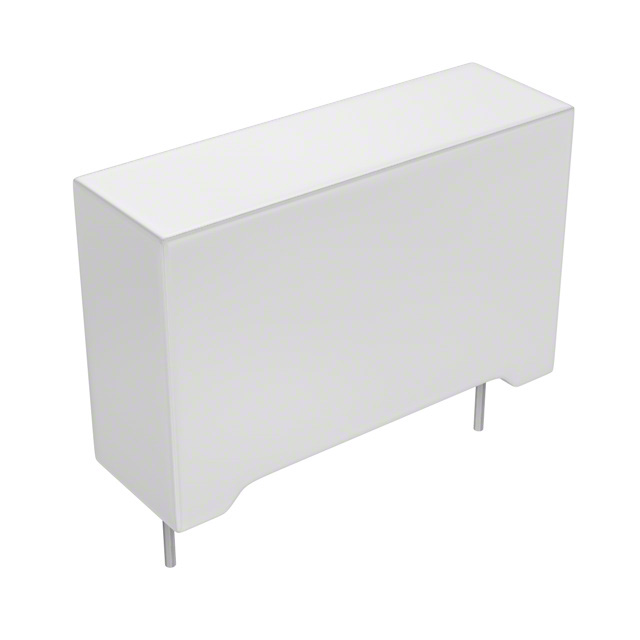

171105J160N-FCAP FILM 1UF 5% 160VDC RADIAL |
8,275 |
|
Datasheet |
Radial | 1 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 26 mOhms | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
C276CCB4700AF0JCAP FILM 7UF 5% 470VAC RADIAL |
8,626 |
|
Datasheet |
Radial, Can | 7 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | Wire Leads | - | Motor Run | - | - |
|
|
MKP1G042207E00MSSDMKP 10 2.2 F 400 VDC 17X29X41.5 |
8,307 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
