Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC237513243CAP FILM 0.024UF 3.5% 630VDC RAD |
9,227 |
|
Datasheet |
Radial | 0.024 µF | ±3.5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
BFC241773304CAP FILM 0.33UF 2% 160VDC RADIAL |
2,685 |
|
Datasheet |
Radial | 0.33 µF | ±2% | 63V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
BFC241872204CAP FILM 0.22UF 2% 250VDC RADIAL |
7,745 |
|
Datasheet |
Radial | 0.22 µF | ±2% | 25V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

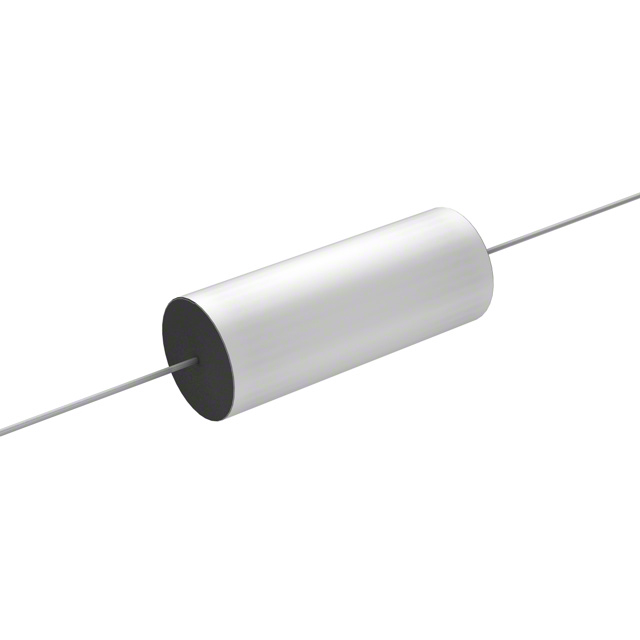

WMF1P47K-FCAP FILM 0.47UF 10% 100VDC AXIAL |
4,670 |
|
Datasheet |
Axial | 0.47 µF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.492" Dia x 1.248" L (12.50mm x 31.70mm) | - | PC Pins | - | General Purpose | - | - |
|
|
BFC2373GE125MICAP FILM 1.2UF 10% 630VDC RADIAL |
6,114 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 160V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
B32914B5105M0001 UF 20% 530V MKP X1 |
6,563 |
|
Datasheet |
Radial | 1 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.260" (32.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
BFC238370112CAP FILM 1100PF 5% 2.5KVDC RAD |
4,472 |
|
Datasheet |
Radial | 1100 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238371112CAP FILM 1100PF 5% 2.5KVDC RAD |
8,672 |
|
Datasheet |
Radial | 1100 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
DCP4P044006GD2JSC9DC-LINK MKP 4 4.0 F 1100 VDC 17X |
3,946 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC237368274CAP FILM 0.27UF 5% 630VDC RADIAL |
7,712 |
|
Datasheet |
Radial | 0.27 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
R73RW3220JB00JCAP FILM METAL RAD POLYPROP |
8,725 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
DCP4I047006FD2JSSDDC-LINK MKP 4 7.0 F 600 VDC 15X2 |
2,488 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PME271M627KR30CAP FILM |
8,266 |
|
Datasheet |
Radial | 0.27 µF | ±10% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.413" W (30.50mm x 10.50mm) | 0.681" (17.30mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|
|
MKS4G046807D00JSSDCAP FILM 6.8UF 5% 400VDC RADIAL |
7,866 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.591" W (41.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP385511025JKM2T0CAP FILM 1.1UF 5% 250VDC RADIAL |
4,531 |
|
Datasheet |
Radial | 1.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385511025JKP2T0CAP FILM 1.1UF 5% 250VDC RADIAL |
5,060 |
|
Datasheet |
Radial | 1.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385511025JKI2B0CAP FILM 1.1UF 5% 250VDC RADIAL |
9,707 |
|
Datasheet |
Radial | 1.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
DCP4N047006GD2KSC9DC-LINK MKP 4 7.0 F 900 VDC 17X2 |
7,357 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4N047006GD2MSC9DC-LINK MKP 4 7.0 F 900 VDC 17X2 |
5,661 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A50PK2680AA60KCAP FILM AXL |
4,238 |
|
Datasheet |
Axial | 0.068 µF | ±10% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
