Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC241911504CAP FILM 0.15UF 2% 400VDC RADIAL |
9,115 |
|
Datasheet |
Radial | 0.15 µF | ±2% | 125V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
QAK2J334JTPCAP FILM 0.33UF 5% 630VDC AXIAL |
3,734 |
|
Datasheet |
Axial | 0.33 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.728" W, 0.413" T x 1.181" L (18.50mm, 10.50mm x 30.00mm) | - | PC Pins | - | General Purpose | - | - |
|
MKP1839482634HQCAP FILM 0.82UF 5% 630VDC AXIAL |
5,327 |
|
Datasheet |
Axial | 0.82 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.551" Dia x 1.240" L (14.00mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
C4AQQLW4350P33JCAP FILM 3.5UF 5% 1.1KVDC RADIAL |
5,435 |
|
Datasheet |
Radial - 4 Leads | 3.5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 19.4 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.756" (19.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
F17724472900CAP FILM 0.47UF 10% 630VDC RAD |
9,191 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F17724472901CAP FILM 0.47UF 10% 630VDC RAD |
3,654 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC237390012CAP FILM 1.5UF 10% 100VDC RADIAL |
4,695 |
|
Datasheet |
Radial | - | - | - | - | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
BFC247966753CAP FILM 0.075UF 5% 630VDC RAD |
2,513 |
|
Datasheet |
Radial | 0.075 µF | ±5% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247966823CAP FILM 0.082UF 5% 630VDC RAD |
4,483 |
|
Datasheet |
Radial | 0.082 µF | ±5% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKP383491025JKM2T0CAP FILM 0.91UF 5% 250VDC RADIAL |
4,876 |
|
Datasheet |
Radial | 0.91 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383491025JKP2T0CAP FILM 0.91UF 5% 250VDC RADIAL |
8,933 |
|
Datasheet |
Radial | 0.91 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383491025JKI2B0CAP FILM 0.91UF 5% 250VDC RADIAL |
4,035 |
|
Datasheet |
Radial | 0.91 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
BFC233862104CAP FILM 0.1UF 20% 1KVDC RADIAL |
7,376 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
F462FN684J1K0ZCAP FILM POLYPROP RAD |
6,778 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP4G043307E00JSC9MKP 4 3.3 F 400 VDC 17X29X41.5 P |
9,760 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

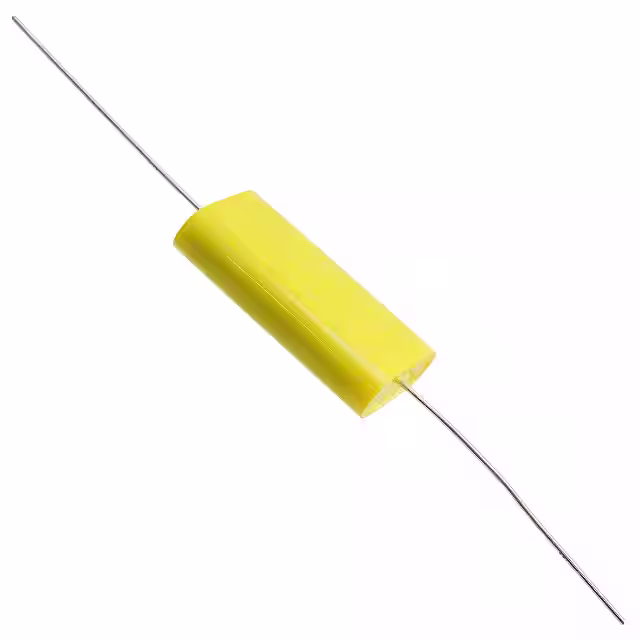

QAK2E335KTPCAP FILM 3.3UF 10% 250VDC AXIAL |
2,468 |
|
Datasheet |
Axial | 3.3 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.748" W, 0.315" T x 1.299" L (19.00mm, 8.00mm x 33.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
R76TW3220JH30KCAP FILM AUTO POLYPROP RAD |
5,059 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 110°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.949" (24.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R76TW3220JE30KCAP FILM AUTO POLYPROP RAD |
7,891 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 110°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.949" (24.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F340Y242730MKI2B0CAP FILM 0.27UF 20% 1KVDC RAD |
6,280 |
|
Datasheet |
Radial | 0.27 µF | ±20% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.909" (23.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
|
F462RB564M1K0ZCAP |
5,726 |
|
- |
Radial | 0.56 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.433" W (41.00mm x 11.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
