Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP385E46810KKP2T0CAP FILM 0.68UF 10% 1KVDC RAD |
4,922 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | 15 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
BFC241606204CAP FILM 0.62UF 5% 63VDC RADIAL |
2,009 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
|
BFC241902204CAP FILM 0.22UF 5% 400VDC RADIAL |
9,280 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
|
MKS4G046806I00JSC9CAP FILM 6.8UF 5% 400VDC RADIAL |
6,375 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.358" (34.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
BFC237865433CAP FILM 0.043UF 5% 630VDC RAD |
2,036 |
|
Datasheet |
Radial | 0.043 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
BFC238302334CAP FILM 0.33UF 5% 250VDC RADIAL |
5,053 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC238342163CAP FILM 0.016UF 5% 1.4KVDC RAD |
9,161 |
|
Datasheet |
Radial | 0.016 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC2373EF335MICAP FILM 3.3UF 5% 250VDC RADIAL |
4,643 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 63V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
MKP383410160JKM2T0CAP FILM 0.1UF 5% 1.6KVDC RADIAL |
9,732 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383410160JKP2T0CAP FILM 0.1UF 5% 1.6KVDC RADIAL |
8,735 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F462FN474M1L2ZCAP |
4,477 |
|
- |
Radial | 0.47 µF | ±20% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
R75QR4150AA00JCAP FILM AUTO POLYPROP RAD |
2,180 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4AQNLW4380M34JCAP FILM 3.8UF 5% 1KVDC RADIAL |
3,469 |
|
Datasheet |
Radial - 4 Leads | 3.8 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 19.3 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
MKP1847H53025KK2CAP FILM 3UF 10% 500VDC RADIAL |
8,807 |
|
Datasheet |
Radial | 3 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.130" (28.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | - | 85C/85% Humidity |
|
|
MKP1841510254MCAP FILM 1UF 5% 250VDC RADIAL |
7,626 |
|
Datasheet |
Radial | 1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|

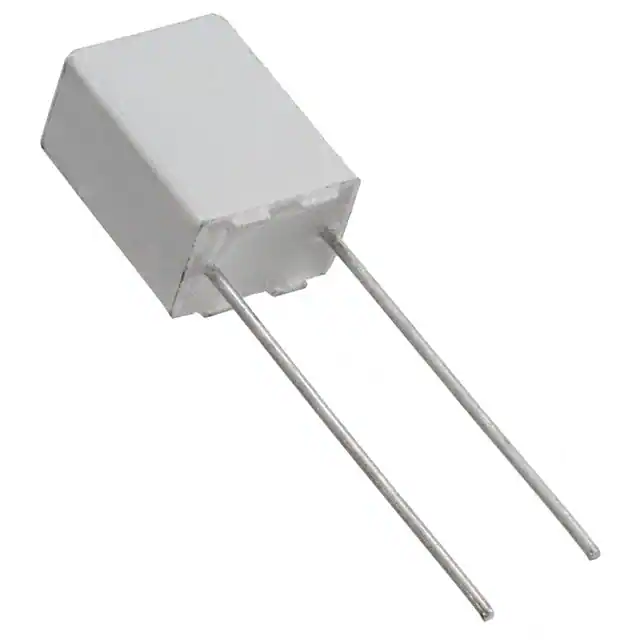

MMK5475K50J06L16.5TR18CAP FILM 4.7UF 10% 50VDC RADIAL |
9,711 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
BFC2373FL105MFCAP FILM 1UF 10% 400VDC RADIAL |
7,679 |
|
Datasheet |
Radial | 1 µF | ±10% | 100V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
|
BFC237895472CAP FILM 4700PF 5% 2KVDC RADIAL |
7,262 |
|
Datasheet |
Radial | 4700 pF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
C4GAMUC3470AA0JCAP FILM 0.47UF 5% 850VDC AXIAL |
3,273 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 0.669" Dia x 1.299" L (17.00mm x 33.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
C4GADUC4400AA0JCAP FILM METAL AXL POLYPROP |
8,578 |
|
Datasheet |
Axial | 4 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 6.4 mOhms | -40°C ~ 85°C | Through Hole | 0.610" Dia x 1.299" L (15.50mm x 33.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
