Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1845433404CAP FILM 0.33UF 5% 400VDC AXIAL |
3,278 |
|
Datasheet |
Axial | 0.33 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.531" Dia x 1.142" L (13.50mm x 29.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
MKT1822547014CAP FILM 4.7UF 5% 100VDC RADIAL |
4,821 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
F462FN474J1L2ZCAP FILM POLYPROP RAD |
4,273 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
BFC238352183CAP FILM 0.018UF 5% 1.6KVDC RAD |
4,901 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238372682CAP FILM 6800PF 5% 2.5KVDC RAD |
9,686 |
|
Datasheet |
Radial | 6800 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F462RF474K1L2ZCAP FILM POLYPROP RAD |
7,728 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKX14W41206I00KSC9MKP-X1 R 1.2 F 440 VAC 17X34.5X3 |
7,583 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC242011104CAP FILM 0.11UF 2% 630VDC RADIAL |
4,732 |
|
Datasheet |
Radial | 0.11 µF | ±2% | 160V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
C4AUIBU4600M11JCAP FILM METAL RAD POLYPROP |
6,913 |
|
Datasheet |
Radial | 6 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 8.3 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 1.169" (29.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
BFC237520433CAP FILM 0.043UF 5% 1KVDC RADIAL |
2,368 |
|
Datasheet |
Radial | 0.043 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.866" (22.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237524433CAP FILM 0.043UF 5% 1KVDC RADIAL |
5,102 |
|
Datasheet |
Radial | 0.043 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.866" (22.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|

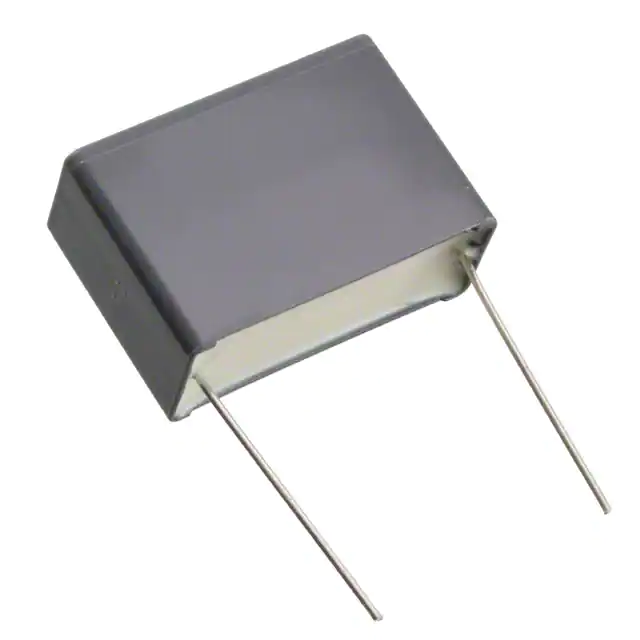

R46KR42205001MCAP FILM 2.2UF 20% 560VDC RAD |
8,405 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP1T034707F00MSSDMKP 10 0.47 F 1600 VDC 19X32X41. |
8,720 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F339MX246831MKI2B0CAP FILM 0.68UF 20% 630VDC RAD |
8,384 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F871RH185M330ZCAP FILM POLYPROP RAD X1 |
5,763 |
|
Datasheet |
Radial | 1.8 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP4F044707C00KSSDMKP 4 4.7 F 250 VDC 13X24X41.5 P |
9,661 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FLCJ6A0106K4CNEW |
5,018 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.673" L x 0.787" W (42.50mm x 20.00mm) | 1.594" (40.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
|
MKS4J042207D00KSSDCAP FILM 2.2UF 10% 630VDC RADIAL |
2,109 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.591" W (41.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP4J042207E00KSSDMKP 4 2.2 F 630 VDC 17X29X41.5 P |
9,488 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 280V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
MKP1839111631CAP FILM 110PF 1% 630VDC AXIAL |
7,117 |
|
Datasheet |
Axial | 110 pF | ±1% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.236" Dia x 0.433" L (6.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
