Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QAP2G105JRPCAP FILM 1UF 5% 400VDC AXIAL |
4,229 |
|
Datasheet |
Axial | 1 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.764" W, 0.441" T x 1.378" L (19.40mm, 11.20mm x 35.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
BFC241715104CAP FILM 0.51UF 2% 160VDC RADIAL |
5,581 |
|
Datasheet |
Radial | 0.51 µF | ±2% | 63V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
FSB16N0104JCAP FILM 0.1UF 5% 2KVDC SCREW |
5,218 |
|
Datasheet |
Rectangular Box | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 14.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.224" L x 0.512" W (31.10mm x 13.00mm) | 1.000" (25.40mm) | Screw Terminals | 1.083" (27.50mm) | Snubber | - | - |
|
171224J630P-FCAP FILM 0.22UF 5% 630VDC RADIAL |
7,351 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383339250JKP2T0CAP FILM 0.039UF 5% 2.5KVDC RAD |
3,098 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238320164CAP FILM 0.16UF 5% 630VDC RADIAL |
7,438 |
|
Datasheet |
Radial | 0.16 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
170474K630XFCAP FILM 0.47UF 10% 630VDC AXIAL |
9,899 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 28 mOhms | -55°C ~ 105°C | Through Hole | 0.709" Dia x 1.299" L (18.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
MKP1847H52035KK2CAP FILM 2UF 10% 700VDC RADIAL |
9,179 |
|
Datasheet |
Radial | 2 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 10.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.130" (28.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | - | 85C/85% Humidity |
|
|
MKP4J042206I00MSSDMKP 4 2.2 F 630 VDC 17X34.5X31.5 |
6,198 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKT1820422104CAP FILM 0.22UF 5% 1KVDC RADIAL |
9,456 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 220V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
MKP385E3822BKKI2B0CAP FILM 0.08UF 10% 2.5KVDC RAD |
2,685 |
|
Datasheet |
Radial | 0.08 µF | ±10% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 58 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E3822BKKP2T0CAP FILM 0.08UF 10% 2.5KVDC RAD |
7,056 |
|
Datasheet |
Radial | 0.08 µF | ±10% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 58 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E3822BKKM2T0CAP FILM 0.08UF 10% 2.5KVDC RAD |
9,228 |
|
Datasheet |
Radial | 0.08 µF | ±10% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 58 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
BFC237328225CAP FILM 2.2UF 5% 100VDC RADIAL |
6,973 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
BFC233911824CAP FILM 0.82UF 10% 630VDC RAD |
5,180 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
BFC233913824CAP FILM 0.82UF 10% 630VDC RAD |
2,981 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
BFC233861154CAP FILM 0.15UF 10% 1KVDC RADIAL |
5,367 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
BFC233865154CAP FILM 0.15UF 10% 1KVDC RADIAL |
7,894 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
BFC233915824CAP FILM 0.82UF 10% 630VDC RAD |
5,368 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
 Series Straight 23x17.jpg)
|

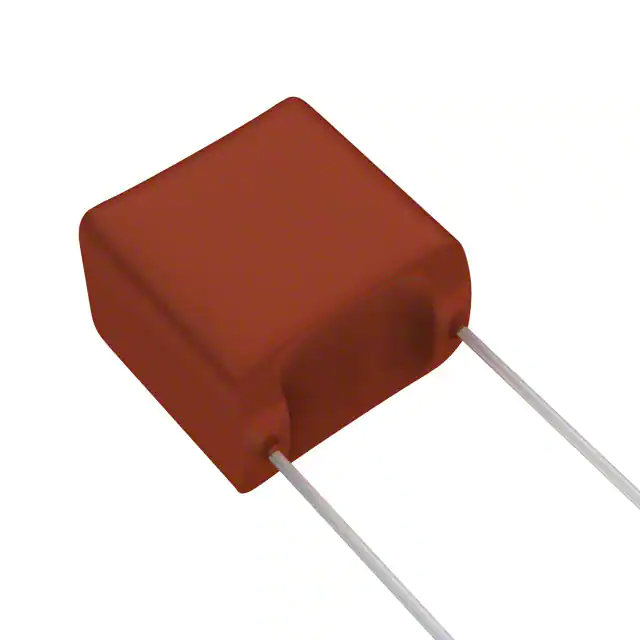

ECW-F2685HACAP FILM 6.8UF 3% 250VDC RADIAL |
9,158 |
|
Datasheet |
Radial | 6.8 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.701" W (23.80mm x 17.80mm) | 0.984" (25.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
