Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32034A4684K000CAP FILM 0.68UF 10% 1KVDC RADIAL |
6,667 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 350V | 1000V (1kV) | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|

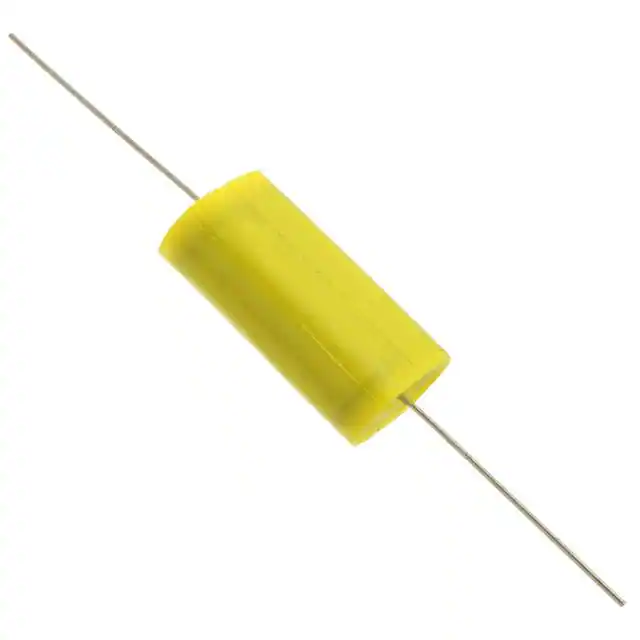

QAP2E335KRPCAP FILM 3.3UF 10% 250VDC AXIAL |
3,384 |
|
Datasheet |
Axial | 3.3 µF | ±10% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.890" W, 0.508" T x 1.378" L (22.60mm, 12.90mm x 35.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
B32524Q1156J189CAP FILM 15UF 5% 100VDC RADIAL |
2,919 |
|
Datasheet |
Radial | 15 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
MKP385524025JII2B0CAP FILM 2.4UF 5% 250VDC RADIAL |
2,445 |
|
Datasheet |
Radial | 2.4 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385524025JIM2T0CAP FILM 2.4UF 5% 250VDC RADIAL |
9,470 |
|
Datasheet |
Radial | 2.4 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385524025JIP2T0CAP FILM 2.4UF 5% 250VDC RADIAL |
6,013 |
|
Datasheet |
Radial | 2.4 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
PVC12139CAP FILM 0.039UF 10% 1.2KVDC RAD |
7,656 |
|
Datasheet |
Radial | 0.039 µF | ±10% | 475V | 1200V (1.2kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.740" Dia x 1.650" L (18.80mm x 41.90mm) | - | PC Pins | 1.343" (34.10mm) | General Purpose | - | - |
|
F340X251530KKP2T0MKP F340X2 1,5F 10% 305VAC |
2,241 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
|
MKP385510063JKM2T0CAP FILM 1UF 5% 630VDC RADIAL |
2,237 |
|
Datasheet |
Radial | 1 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385510063JKP2T0CAP FILM 1UF 5% 630VDC RADIAL |
2,462 |
|
Datasheet |
Radial | 1 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385522025JKM2T0CAP FILM 2.2UF 5% 250VDC RADIAL |
3,602 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385522025JKP2T0CAP FILM 2.2UF 5% 250VDC RADIAL |
8,624 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385510063JKI2B0CAP FILM 1UF 5% 630VDC RADIAL |
6,314 |
|
Datasheet |
Radial | 1 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385522025JKI2B0CAP FILM 2.2UF 5% 250VDC RADIAL |
3,699 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F161ZS824J250VCAP FILM SMD PET |
5,553 |
|
Datasheet |
Nonstandard SMD | 0.82 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
BFC238360153CAP FILM 0.015UF 5% 2KVDC RADIAL |
6,670 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F862FS335K310ZCAP FILM POLYPROP RAD X2 |
6,692 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
MKS4J042206I00MSC9CAP FILM 2.2UF 20% 630VDC RADIAL |
3,448 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.358" (34.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
BFC242061504CAP FILM 0.15UF 5% 630VDC RADIAL |
3,165 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
|
EFDKS1CJ705E114BHCAP EFDKS 1200VDC 7UF J 4LEADS |
3,480 |
|
Datasheet |
Radial - 4 Leads | 7 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 13 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.866" W (42.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
