Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1839468084HQGCAP FILM 0.68UF 5% 850VDC AXIAL |
6,842 |
|
Datasheet |
Axial | 0.68 µF | ±5% | 400V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.650" Dia x 1.240" L (16.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
FKP4G041507G00KSSDFKP 4 1.5 F 400 VDC 20X39.5X41.5 |
8,578 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

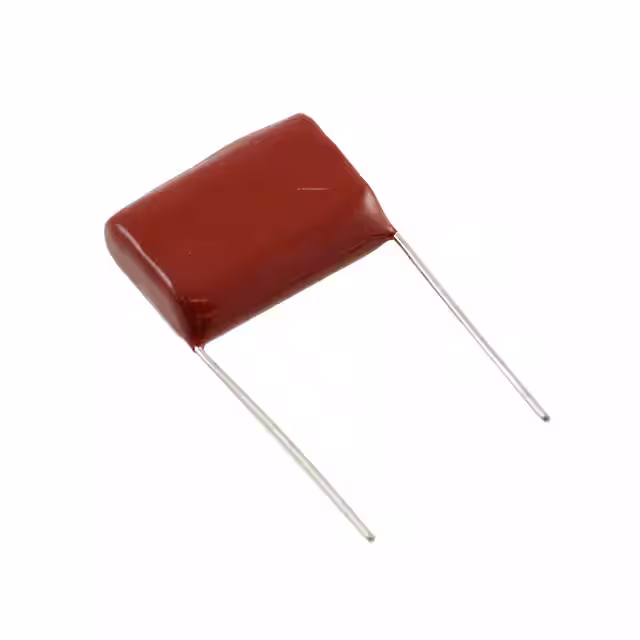

DME1W6P8K-FCAP FILM 6.8UF 10% 100VDC RADIAL |
4,363 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024" L x 0.374" W (26.00mm x 9.50mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
171225K160P-FCAP FILM 2.2UF 10% 160VDC RADIAL |
2,082 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F1778468M3IBT0CAP FILM 0.68UF 20% 630VDC RAD |
3,321 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F1778468M3ICT0CAP FILM 0.68UF 20% 630VDC RAD |
8,359 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC238312334CAP FILM 0.33UF 5% 400VDC RADIAL |
5,832 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238322204CAP FILM 0.2UF 5% 630VDC RADIAL |
2,083 |
|
Datasheet |
Radial | 0.2 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
B32656A8684K000CAP FILM 0.68UF 10% 850VDC RAD |
6,919 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
|
PHE450PR6330JR06L2CAP FILM RAD |
2,348 |
|
- |
Radial | 0.33 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
|
MKP1845468405CAP FILM 0.68UF 10% 400VDC AXIAL |
4,982 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" Dia x 1.339" L (17.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1845468406CAP FILM 0.68UF 20% 400VDC AXIAL |
7,867 |
|
Datasheet |
Axial | 0.68 µF | ±20% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" Dia x 1.339" L (17.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
BFC238300564CAP FILM 0.56UF 5% 250VDC RADIAL |
6,391 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
MKT1813610064CAP FILM 10UF 5% 63VDC AXIAL |
6,356 |
|
Datasheet |
Axial | 10 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.571" Dia x 1.240" L (14.50mm x 31.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
BFC238341393CAP FILM 0.039UF 5% 1.4KVDC RAD |
2,604 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238344393CAP FILM 0.039UF 5% 1.4KVDC RAD |
7,954 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
DCP4P047007FD4MSC9DC-LINK MKP 4 7.0 F 1100 VDC 19X |
5,958 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4P047007FD2MSC9DC-LINK MKP 4 7.0 F 1100 VDC 19X |
3,930 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4P047007FD4KSC9DC-LINK MKP 4 7.0 F 1100 VDC 19X |
7,775 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4P047007FD2KSC9DC-LINK MKP 4 7.0 F 1100 VDC 19X |
9,086 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
