Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKT1813468636GCAP FILM 0.68UF 20% 630VDC AXIAL |
6,380 |
|
Datasheet |
Axial | 0.68 µF | ±20% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.571" Dia x 1.634" L (14.50mm x 41.50mm) | - | PC Pins | - | General Purpose | - | - |
|

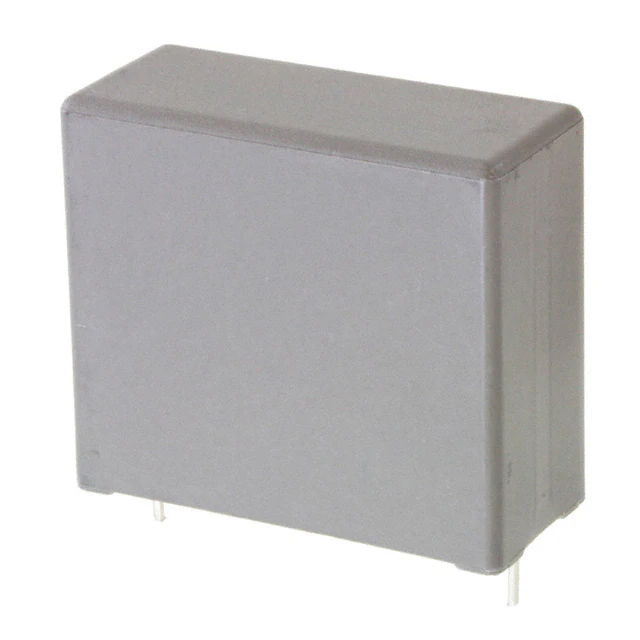

R71QW4220AA20JCAP FILM 2.2UF 5% 1KVDC RADIAL |
5,382 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 275V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
F871FY225J330Z2.20UF 330V |
5,772 |
|
- |
Radial | 2.2 µF | ±5% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
MKP1848S61050JP4BCAP FILM 10UF 5% 500VDC RADIAL |
2,713 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.063" W (42.00mm x 27.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
MKP4D048206F00MSSDMKP 4 8.2 F 100 VDC 15X26X31.5 P |
2,249 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4R245007FD4JSSDDC-LINK MKP 4 5.0 F 1300 VDC 19X |
9,109 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4R245007FD2JSSDDC-LINK MKP 4 5.0 F 1300 VDC 19X |
4,796 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMC5.7223K100J33TR12CAP FILM 0.022UF 10% 100VDC 2220 |
2,653 |
|
- |
2220 (5750 Metric) | 0.022 µF | ±10% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.126" (3.20mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
FCN3931E394K-UCAP FILM 0.39UF 10% 250VDC 3931 |
4,881 |
|
Datasheet |
3931 (9880 Metric) | 0.39 µF | ±10% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.386" L x 0.315" W (9.80mm x 8.00mm) | 0.181" (4.60mm) | Solder Pads | - | General Purpose | - | - |
|
|
BFC238310394CAP FILM 0.39UF 5% 400VDC RADIAL |
6,443 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F461DY825R160Z8.20UF 160V |
7,572 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A50MT4220AA60JCAP FILM AXL |
8,532 |
|
Datasheet |
Axial | 2.2 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.591" Dia x 1.299" L (15.00mm x 33.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
BFC237510104CAP FILM 0.1UF 5% 630VDC RADIAL |
9,944 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.866" (22.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
A50IK34702660JCAP FILM AXL |
6,123 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
A50IK34702660KCAP FILM AXL |
6,785 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
A50IK34702660MCAP FILM AXL |
5,557 |
|
Datasheet |
Axial | 0.47 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
MKP4R036807F00KSSDMKP 4 0.68 F 1250 VDC 19X32X41.5 |
5,431 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4R036806J00KSSDMKP 4 0.68 F 1250 VDC 20X39.5X31 |
8,482 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1839047632CAP FILM 47PF 2% 630VDC AXIAL |
8,120 |
|
Datasheet |
Axial | 47 pF | ±2% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839047632RCAP FILM 47PF 2% 630VDC AXIAL |
5,156 |
|
Datasheet |
Axial | 47 pF | ±2% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
