Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238301624CAP FILM 0.62UF 5% 250VDC RADIAL |
9,499 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238360203CAP FILM 0.02UF 5% 2KVDC RADIAL |
2,819 |
|
Datasheet |
Radial | 0.02 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238361203CAP FILM 0.02UF 5% 2KVDC RADIAL |
7,600 |
|
Datasheet |
Radial | 0.02 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238364203CAP FILM 0.02UF 5% 2KVDC RADIAL |
3,543 |
|
Datasheet |
Radial | 0.02 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP1841415134MCAP FILM 0.15UF 5% 1.6KVDC RAD |
8,913 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.650" W (31.50mm x 16.50mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1841415135MCAP FILM 0.15UF 10% 1.6KVDC RAD |
7,940 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.650" W (31.50mm x 16.50mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
EFDKS70J226E134BHCAP EFDKS 700VDC 22UF J 4LEADS |
2,959 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.614" (41.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS60J226E134BHCAP EFDKS 600VDC 22UF J 4LEADS |
4,977 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.614" (41.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
BFC238334753CAP FILM 0.075UF 5% 1KVDC RADIAL |
6,006 |
|
Datasheet |
Radial | 0.075 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F861FH394K310ZCAP FILM POLYPROP RAD X2 |
5,101 |
|
Datasheet |
Radial | 0.39 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 0.492" (12.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
DCP4L051007ED2JSSDDC-LINK MKP 4 10.0 F 800 VDC 17X |
5,489 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1F043906J00MSSDMKP 10 3.9 F 250 VDC 20X39.5X31. |
2,142 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1F044706J00MSSDMKP 10 4.7 F 250 VDC 20X39.5X31. |
8,243 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

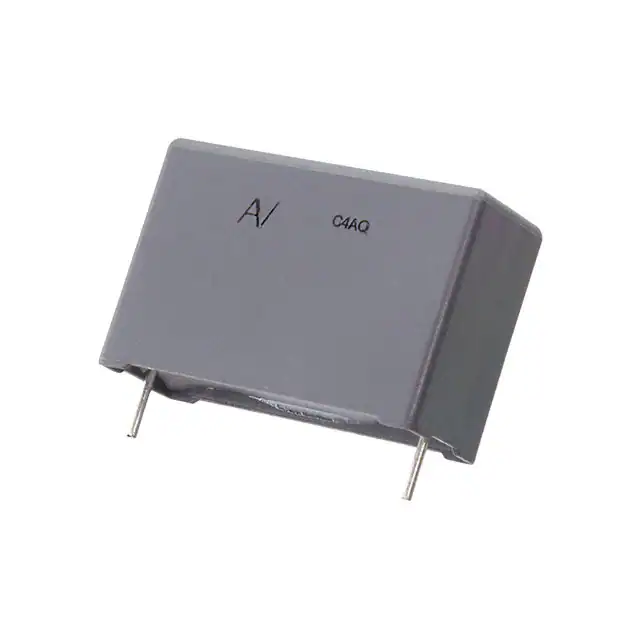

C4AQGLU5150P19KCAP FILM 15UF 10% 450VDC RADIAL |
8,791 |
|
Datasheet |
Radial | 15 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 6.1 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 1.220" W (32.00mm x 31.00mm) | 0.756" (19.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
|
BFC237590362CAP FILM 0.11UF 5% 630VDC RADIAL |
9,226 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.374" W (26.00mm x 9.50mm) | 1.004" (25.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
BFC246858564CAP FILM 0.56UF 5% 630VDC RADIAL |
9,757 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 1.043" (26.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|

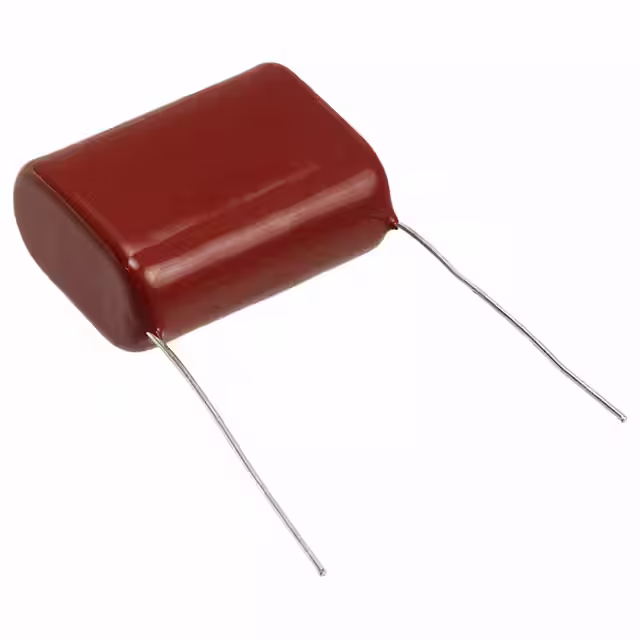

EXH2E905HRPTCAP FILM 9UF -5% +10% 250VAC RAD |
3,109 |
|
Datasheet |
Radial | 9 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.417" L x 0.650" W (36.00mm x 16.50mm) | 1.161" (29.50mm) | PC Pins | 1.280" (32.50mm) | Motor Run | - | - |
|
|
F861FH564J310Z.560UF 310V |
8,274 |
|
- |
Radial | 0.56 µF | ±5% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 0.492" (12.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC237390092CAP FILM 1.5UF 10% 250VDC RADIAL |
6,044 |
|
Datasheet |
Radial | - | - | - | - | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
BFC241903604CAP FILM 0.36UF 5% 400VDC RADIAL |
3,400 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
