Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC233841684CAP FILM 0.68UF 20% 800VDC RAD |
8,854 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC233844684CAP FILM 0.68UF 20% 800VDC RAD |
7,712 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
FKP4J041007G00MSC9FKP 4 1.0 F 630 VDC 20X39.5X41.5 |
9,998 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4U033307G00JSSDCAP FILM 0.33UF 5% 2KVDC RADIAL |
8,856 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 400V | 2000V (2kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
F161ZS225J100VCAP FILM SMD PET |
4,285 |
|
Datasheet |
Nonstandard SMD | 2.2 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|

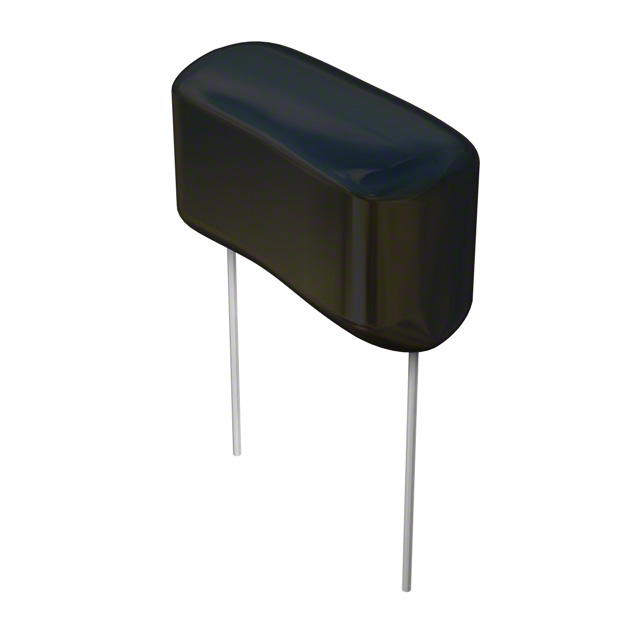

DMT4P22K-FCAP FILM 0.22UF 10% 400VDC RAD |
8,857 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.319" L x 0.417" W (33.50mm x 10.60mm) | 0.905" (22.98mm) | PC Pins | 1.169" (29.70mm) | General Purpose | - | - |
|
BFC233865184CAP FILM 0.18UF 10% 1KVDC RADIAL |
5,433 |
|
Datasheet |
Radial | 0.18 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
F462RC824K1L2ZCAP FILM POLYPROP RAD |
6,592 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.630" W (41.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
C276CCA5125AL0JCAP FILM 12.5UF 5% 470VAC RADIAL |
6,664 |
|
Datasheet |
Radial, Can | 12.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.815" (71.50mm) | Wire Leads | - | Motor Run | - | - |
|
|
DCP4N048006ID4JSC9DC-LINK MKP 4 8.0 F 900 VDC 17X3 |
3,545 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKX2AW44707G00JSSDMKP-X2 4.7 F 305 VAC 20X39.5X41. |
3,731 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC237865913CAP FILM 0.091UF 5% 630VDC RAD |
6,021 |
|
Datasheet |
Radial | 0.091 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
DCP4H151507DD2MSSDDC-LINK MKP 4 15.0 F 500 VDC 15X |
8,914 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4O141507G00MSC9MKP 4 1.5 F 1000 VDC 20X39.5X41. |
8,506 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4R041007G00MSC9MKP 4 1.0 F 1250 VDC 20X39.5X41. |
5,787 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1G043307G00MSC9MKP 10 3.3 F 400 VDC 20X39.5X41. |
9,418 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BFC237344225CAP FILM 2.2UF 5% 250VDC RADIAL |
3,731 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
A50EK4220AA60JCAP FILM AXL |
4,401 |
|
Datasheet |
Axial | 2.2 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.374" Dia x 0.807" L (9.50mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
F872FY125M480ZCAP FILM POLYPROP RAD X1 |
8,813 |
|
Datasheet |
Radial | 1.2 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
MKP1848H55090KK2CAP FILM 5UF 10% 920VDC RADIAL |
4,860 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 920V | Polypropylene (PP), Metallized | 7.2 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
