Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC236823565CAP FILM 5.6UF 10% 100VDC RADIAL |
4,689 |
|
Datasheet |
Radial | 5.6 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.433" W (30.00mm x 11.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
BFC236825565CAP FILM 5.6UF 10% 100VDC RADIAL |
2,158 |
|
Datasheet |
Radial | 5.6 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.433" W (30.00mm x 11.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
F871RV105J330Z1.00UF 330V |
2,727 |
|
- |
Radial | 1 µF | ±5% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
MKP1847560254K2CAP FILM 6UF 5% 250VAC RADIAL |
5,162 |
|
Datasheet |
Radial | 6 µF | ±5% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
|
|
EFDKA1BJ126E154BHCAP EFDKA 1100VDC 12UF J 4LEADS |
7,629 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 10.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP4G046807G00JSSDMKP 4 6.8 F 400 VDC 20X39.5X41.5 |
4,657 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
MKP1839510633CAP FILM 1UF 2.5% 630VDC AXIAL |
6,402 |
|
Datasheet |
Axial | 1 µF | ±2.5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" Dia x 1.634" L (18.00mm x 41.50mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
BFC238340473CAP FILM 0.047UF 5% 1.4KVDC RAD |
8,038 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
MKP1848H58070KK2CAP FILM 8UF 10% 700VDC RADIAL |
2,986 |
|
Datasheet |
Radial | 8 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
R745W4150AA00KCAP FILM METAL RAD POLYPROP |
4,814 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKT1813510634CAP FILM 1UF 5% 630VDC AXIAL |
5,113 |
|
Datasheet |
Axial | 1 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.650" Dia x 1.634" L (16.50mm x 41.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
R71VW5100AA30KCAP FILM METAL RAD POLYPROP |
9,122 |
|
Datasheet |
Radial | 10 µF | ±10% | 250V | 520V | Polypropylene (PP), Metallized | 43 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
C276CC25180AA0JCAP FILM 18UF 5% 470VAC RADIAL |
4,273 |
|
Datasheet |
Radial, Can | 18 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 2.972" (75.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
|
C274AC34630AA0JCAP FILM 6.3UF 5% 470VAC RADIAL |
7,999 |
|
Datasheet |
Radial, Can | 6.3 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|

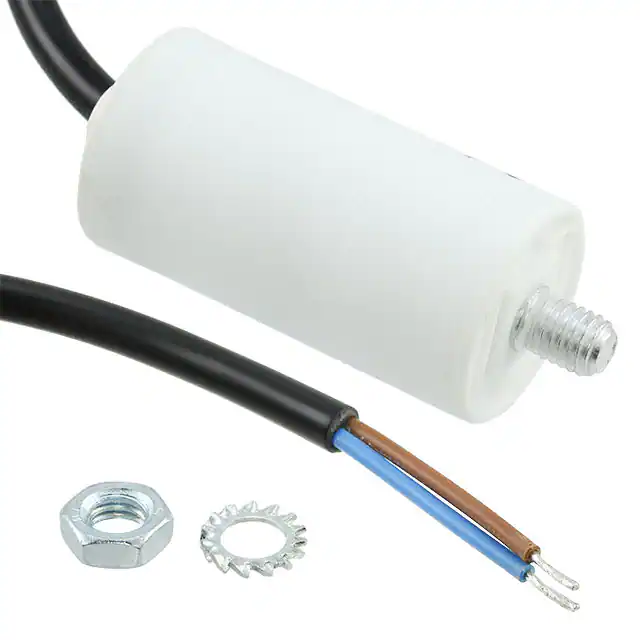

C274ACF4100LG0JCAP FILM 1UF 5% 470VAC RADIAL |
9,177 |
|
Datasheet |
Radial, Can | 1 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.323" (59.00mm) | Wire Leads | - | Motor Run | - | - |
|
|
QAP2G225JRPCAP FILM 2.2UF 5% 400VDC AXIAL |
3,887 |
|
Datasheet |
Axial | 2.2 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.953" W, 0.583" T x 1.575" L (24.20mm, 14.80mm x 40.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
MKP1G043907G00MSC9MKP 10 3.9 F 400 VDC 20X39.5X41. |
5,905 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1W033307L00KSC9MKP 10 0.33 F 3000 VDC 28X38X41. |
7,863 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1U031007G00JSC9FKP 1 0.1 F 2000 VDC 20X39.5X41. |
3,602 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1W032707H00KSC9MKP 10 0.27 F 3000 VDC 24X45.5X4 |
8,420 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
