Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F339MX254731KPI2T0CAP FILM 4.7UF 10% 630VDC RADIAL |
9,359 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC238360363CAP FILM 0.036UF 5% 2KVDC RADIAL |
3,923 |
|
Datasheet |
Radial | 0.036 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238361363CAP FILM 0.036UF 5% 2KVDC RADIAL |
5,537 |
|
Datasheet |
Radial | 0.036 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP1U036807L00KSC9MKP 10 0.68 F 2000 VDC 28X38X41. |
5,918 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F872RP185K480ZCAP FILM POLYPROP RAD X1 |
2,978 |
|
Datasheet |
Radial | 1.8 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
R60GR5330AA00MCAP FILM AUTOMOTIVE |
3,138 |
|
Datasheet |
Radial | 33 µF | ±20% | 90V | 160V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
930C4P68K-FCAP FILM 0.68UF 10% 400VDC AXIAL |
4,755 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 30 mOhms | -55°C ~ 105°C | Through Hole | 0.551" Dia x 1.260" L (14.00mm x 32.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
FKP1J034707G00JSC9FKP 1 0.47 F 630 VDC 20X39.5X41. |
4,361 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKPF3Y51507G00JSC9MKP 4F 15.0 F 230 VAC 20X39.5X41 |
5,541 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
100ST683MB13225CAP FILM 0.068UF 20% 100VDC 1210 |
4,623 |
|
- |
1210 (3225 Metric) | 0.068 µF | ±20% | - | 100V | Acrylic, Metallized | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.055" (1.40mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
63MU334KB13225CAP FILM 0.33UF 10% 63VDC 1210 |
4,494 |
|
Datasheet |
1210 (3225 Metric) | 0.33 µF | ±10% | - | 63V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
MKP1847C550275P2MKP 5F 10% 275VAC PITCH 37,5 |
6,600 |
|
Datasheet |
Radial | 5 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.437" (36.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
|
C870CF34800AA0JCAP FILM MOTOR START RUN |
9,518 |
|
Datasheet |
Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.528" (13.40mm) | Motor Run | - | - |
|
|
MKP1845515405CAP FILM 1.5UF 10% 400VDC AXIAL |
9,790 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.846" Dia x 1.732" L (21.50mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1845515406CAP FILM 1.5UF 20% 400VDC AXIAL |
2,397 |
|
Datasheet |
Axial | 1.5 µF | ±20% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.846" Dia x 1.732" L (21.50mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
F872RW125M480ZCAP FILM POLYPROP RAD X1 |
4,616 |
|
Datasheet |
Radial | 1.2 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|

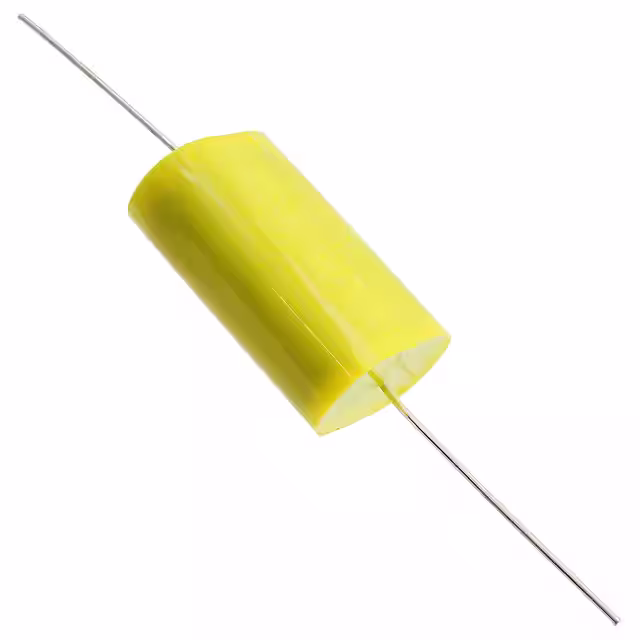

QAK2G475KTPCAP FILM 4.7UF 10% 400VDC AXIAL |
5,887 |
|
Datasheet |
Axial | 4.7 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.102" W, 0.669" T x 1.535" L (28.00mm, 17.00mm x 39.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
BFC247952564CAP FILM 0.56UF 5% 400VDC RADIAL |
5,591 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247954564CAP FILM 0.56UF 5% 400VDC RADIAL |
8,292 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237865154CAP FILM 0.15UF 5% 630VDC RADIAL |
6,687 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
