Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP385E51210KPP2T0CAP FILM 1.2UF 10% 1KVDC RAD |
4,096 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
BFC247990193CAP FILM 0.68UF 5% 400VDC RADIAL |
6,675 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.394" W (30.00mm x 10.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKS4S041007H00MSSDCAP FILM 1UF 20% 1.5KVDC RADIAL |
3,089 |
|
Datasheet |
Radial | 1 µF | ±20% | 400V | 1500V (1.5kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4B053306D00MSC9CAP FILM 33UF 20% 50VDC RADIAL |
9,420 |
|
Datasheet |
Radial | 33 µF | ±20% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
MKP1839439134HQGCAP FILM 0.39UF 5% 1.6KVDC AXIAL |
3,834 |
|
Datasheet |
Axial | 0.39 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.768" Dia x 1.240" L (19.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP1T038207H00JSC9MKP 10 0.82 F 1600 VDC 24X45.5X4 |
4,910 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC237590371CAP FILM 0.24UF 5% 630VDC RADIAL |
3,048 |
|
Datasheet |
Radial | 0.24 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.512" W (30.00mm x 13.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|

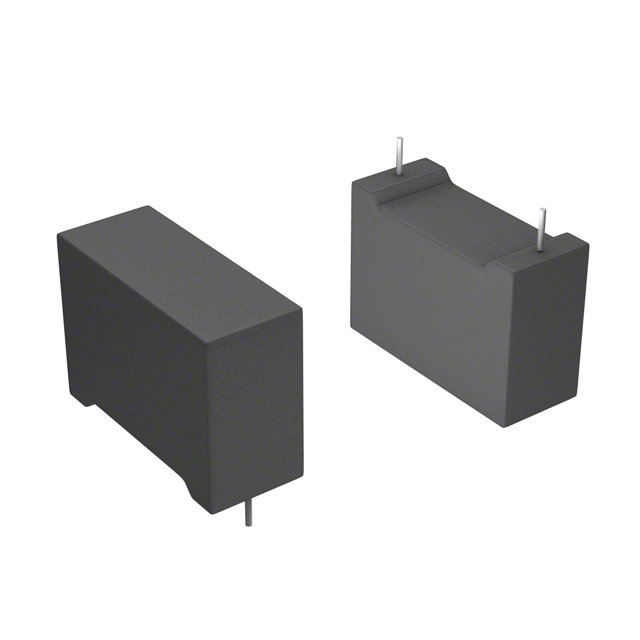

160685J100Q-FCAP FILM 6.8UF 5% 100VDC RADIAL |
6,510 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
BFC236861474CAP FILM 0.47UF 10% 630VDC RAD |
5,408 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.551" W (30.00mm x 14.00mm) | 1.063" (27.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
|
BFC236863474CAP FILM 0.47UF 10% 630VDC RAD |
5,510 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.551" W (30.00mm x 14.00mm) | 1.063" (27.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
|
BFC236865474CAP FILM 0.47UF 10% 630VDC RAD |
9,328 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.551" W (30.00mm x 14.00mm) | 1.063" (27.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
|
DCP4G052206GD2KSSDDC-LINK MKP 4 22.0 F 400 VDC 17X |
4,108 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F871RV125M330ZCAP FILM POLYPROP RAD X1 |
6,558 |
|
Datasheet |
Radial | 1.2 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
B32526R6156K000CAP FILM 15UF 10% 400VDC RADIAL |
2,464 |
|
Datasheet |
Radial | 15 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
F462RP125K1L2ZCAP FILM POLYPROP RAD |
6,649 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKS4B053306D00KSSDCAP FILM 33UF 10% 50VDC RADIAL |
7,853 |
|
Datasheet |
Radial | 33 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4ASNBU3150A3AJCAP FILM METAL RAD POLYPROP |
9,317 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 12.7 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.394" W (32.00mm x 10.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT; Snubber | - | - |
|
|
EFPLS1AJ684E102LHCAP FILM 0.68UF 5% 1000VDC RAD |
5,026 |
|
Datasheet |
Radial | 0.68 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS2AJ224E102LHCAP FILM 0.22UF 5% 2000VDC RAD |
3,181 |
|
Datasheet |
Radial | 0.22 µF | ±5% | - | 2000V (2kV) | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS1GJ474E102LHCAP FILM 0.47UF 5% 1600VDC RAD |
6,826 |
|
Datasheet |
Radial | 0.47 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
