Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
940C8W1P5KCAP FILM 1.5UF 10% 850VDC AXIAL |
2,007 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 1.063" Dia x 1.811" L (27.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP1841422204MCAP FILM 0.22UF 5% 2KVDC RADIAL |
6,605 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1841422205MCAP FILM 0.22UF 10% 2KVDC RADIAL |
9,006 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|

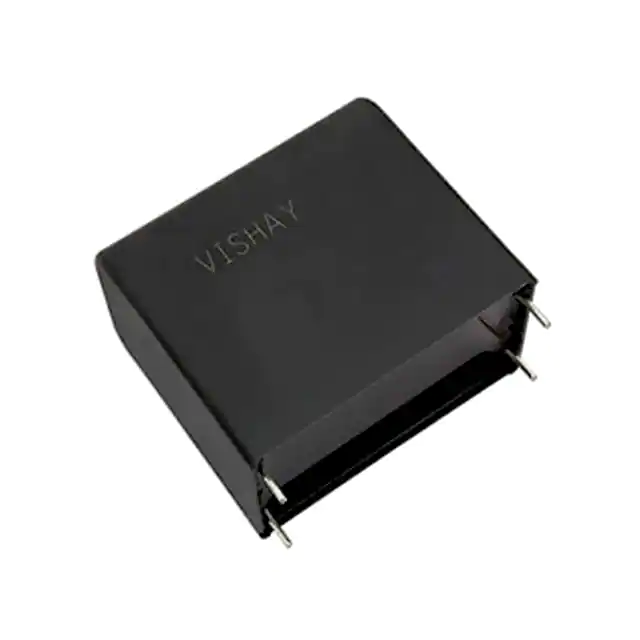

MKT1820615064CAP FILM 15UF 5% 63VDC RADIAL |
7,215 |
|
Datasheet |
Radial | 15 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering | - | - |
|
MKP1848C58010JP4CAP FILM 8UF 5% 1KVDC RADIAL |
7,059 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
BFC238320514CAP FILM 0.51UF 5% 630VDC RADIAL |
3,650 |
|
Datasheet |
Radial | 0.51 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
SNMPO132206BB8KS00SNUBBER MKP 0.22 F 1000 VDC 11X2 |
3,075 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPO132206BFSKS00SNUBBER MKP 0.22 F 1000 VDC 11X2 |
2,425 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPO132206BD2KSSDSNUBBER MKP 0.22 F 1000 VDC 11X2 |
8,898 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP385E51212JPP4T0CAP FILM 1.2UF 5% 1.25KVDC RAD |
3,217 |
|
Datasheet |
Radial - 4 Leads | 1.2 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E51212JPM2T0CAP FILM 1.2UF 5% 1.25KVDC RAD |
3,392 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E51212JPP2T0CAP FILM 1.2UF 5% 1.25KVDC RAD |
5,311 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E51212JPM4T0CAP FILM 1.2UF 5% 1.25KVDC RAD |
6,377 |
|
Datasheet |
Radial - 4 Leads | 1.2 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
160685K63O-FCAP FILM 6.8UF 10% 63VDC RADIAL |
5,952 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
MKP385E4122BJPM2T0CAP FILM 0.12UF 5% 2.5KVDC RAD |
8,631 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E4122BJPP2T0CAP FILM 0.12UF 5% 2.5KVDC RAD |
7,300 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP1W033907I00MSC9MKP 10 0.39 F 3000 VDC 31X46X41. |
8,605 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R75PW4820AA30KCAP FILM AUTO POLYPROP RAD |
3,126 |
|
Datasheet |
Radial | 8.2 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 5.8 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
BFC247990039CAP FILM 1.8UF 5% 160VDC RADIAL |
3,818 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 1.024" (26.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
R76QW41804030JCAP FILM AUTO POLYPROP RAD |
7,709 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
