Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP385E51810JPM2T0CAP FILM 1.8UF 5% 1KVDC RAD |
9,611 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
EFDKA90J256F014BHCAP EFDKA 900VDC 25UF J 4LEADS |
5,796 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 11.5 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
SNMPW026807BB8MS00SNUBBER MKP 0.068 F 3000 VDC 11X |
6,145 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW026807BFSMS00SNUBBER MKP 0.068 F 3000 VDC 11X |
3,338 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW026807BD4MSSDSNUBBER MKP 0.068 F 3000 VDC 11X |
4,254 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW026807BD2MSSDSNUBBER MKP 0.068 F 3000 VDC 11X |
9,259 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1847H55031KP4CAP FILM 5UF 10% 630VDC RADIAL |
7,532 |
|
Datasheet |
Radial - 4 Leads | 5 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | 85C/85% Humidity |
|
|
SNMPT032206FB8MS00SNUBBER MKP 0.22 F 1600 VDC 15X2 |
7,882 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPTA32206FD2MSSDSNUBBER MKP 0.22 F 1700 VDC 15X2 |
6,817 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPT032206FD2MSSDSNUBBER MKP 0.22 F 1600 VDC 15X2 |
8,439 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPT032206FFSMS00SNUBBER MKP 0.22 F 1600 VDC 15X2 |
3,745 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPTA32206FFSMS00SNUBBER MKP 0.22 F 1700 VDC 15X2 |
7,410 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPTA32206FB8MS00SNUBBER MKP 0.22 F 1700 VDC 15X2 |
7,815 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKPF4W44707H00MSSDMKP 4F 4.7 F 440 VAC 24X45.5X41. |
6,844 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP385E4152BKPP2T0CAP FILM 0.15UF 10% 2.5KVDC RAD |
8,775 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
MKP1848H61280JP2CAP FILM 12UF 5% 800VDC RADIAL |
5,346 |
|
Datasheet |
Radial | 12 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7.1 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|

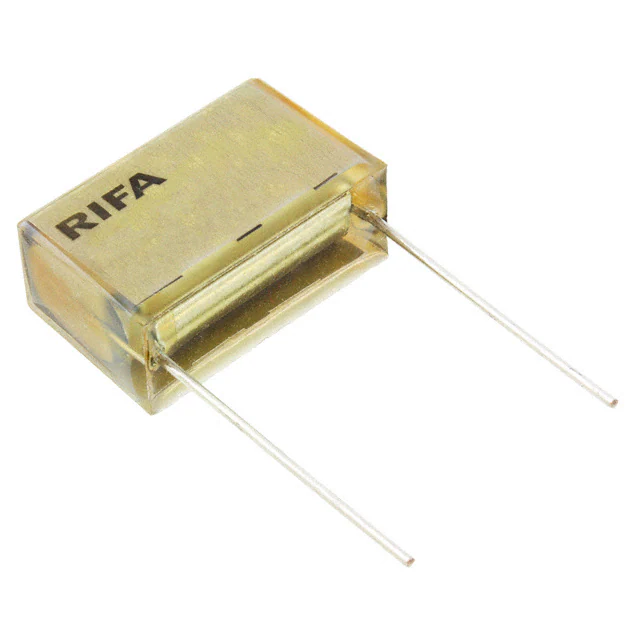

PME271E622KR30CAP FILM 0.22UF 10% 300VAC RAD |
6,403 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 300V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.476" W (30.50mm x 12.10mm) | 0.748" (19.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X1 | - |
|
|
EFDKS90J306F024DHCAP EFDKS 900VDC 30UF J 4LEADS |
5,978 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
R76TW356050H3JCAP FILM 0.56UF 5% 1.6KVDC RAD |
8,684 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
MKP385512085JKI2B0CAP FILM 1.2UF 5% 850VDC RADIAL |
7,485 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 300V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
