Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1848570914P2CAP FILM 7UF 5% 1.1KVDC RADIAL |
4,337 |
|
Datasheet |
Radial | 7 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 13 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.516" (38.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
MKP1848570924P2CAP FILM 7UF 5% 1.2KVDC RADIAL |
8,653 |
|
Datasheet |
Radial | 7 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.516" (38.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
MKP1848610094P2CAP FILM 10UF 5% 900VDC RADIAL |
4,252 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.516" (38.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
F861RW475J310Z4.70UF 310V |
9,302 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKS4D053907D00KSC9CAP FILM 39UF 10% 100VDC RADIAL |
7,756 |
|
Datasheet |
Radial | 39 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.591" W (41.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
FLCN6M0126K4CNEW |
8,874 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±10% | 450V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.791" (45.50mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
|
DCP4G053007ED4MSSDDC-LINK MKP 4 30.0 F 400 VDC 17X |
3,102 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4G053007ED4MSC9DC-LINK MKP 4 30.0 F 400 VDC 17X |
2,888 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFDKA60J406E164DHCAP EFDKA 600VDC 40UF J 4LEADS |
3,136 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKA70J406E164DHCAP EFDKA 700VDC 40UF J 4LEADS |
5,016 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4O143307H00MSC9CAP FILM 3.3UF 20% 1KVDC RADIAL |
5,671 |
|
Datasheet |
Radial | 3.3 µF | ±20% | 400V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

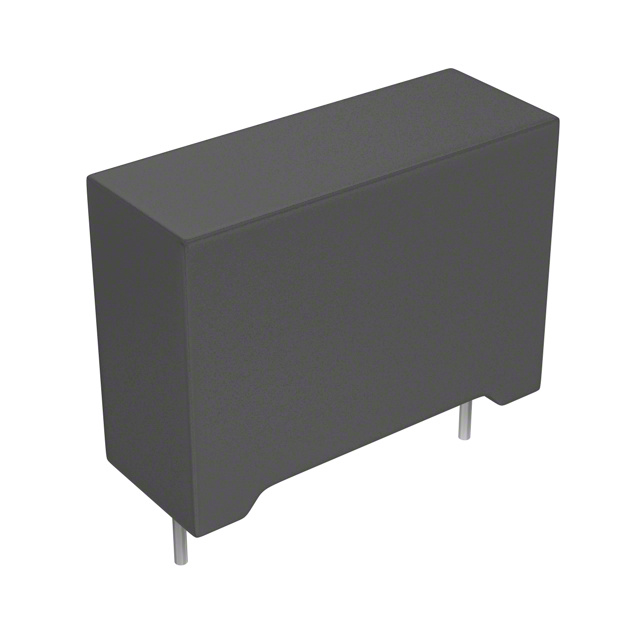

160685J63O-FCAP FILM 6.8UF 5% 63VDC RADIAL |
3,310 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
SNFPO131507DD2KSSDSNUBBER FKP 0.15 F 1000 VDC 15X2 |
5,534 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPO131507DFSKS00SNUBBER FKP 0.15 F 1000 VDC 15X2 |
7,744 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPW023307CFSKS00SNUBBER FKP 0.033 F 3000 VDC 13X |
4,118 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPW023307CB8KS00SNUBBER FKP 0.033 F 3000 VDC 13X |
3,357 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPW023307CD2KSSDSNUBBER FKP 0.033 F 3000 VDC 13X |
2,432 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPO131507DB8KS00SNUBBER FKP 0.15 F 1000 VDC 15X2 |
8,091 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPO131507DD4KSSDSNUBBER FKP 0.15 F 1000 VDC 15X2 |
7,160 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPW023307CD4KSSDSNUBBER FKP 0.033 F 3000 VDC 13X |
9,527 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
