Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

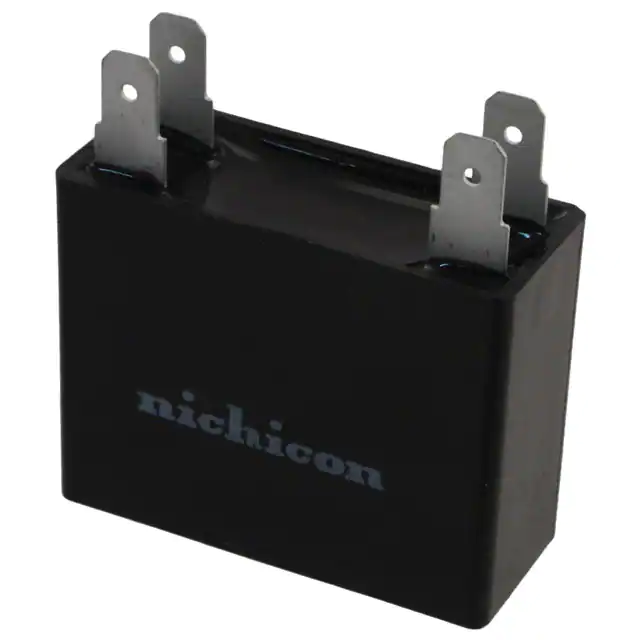

EEC2E705HQA403CAP FILM 7UF 250VAC QC TERM |
6,301 |
|
Datasheet |
Rectangular Box | 7 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.457" L x 0.610" W (37.00mm x 15.50mm) | 1.181" (30.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
DCP4H152506JD2KSC9DC-LINK MKP 4 25.0 F 500 VDC 20X |
6,702 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BFC237342335CAP FILM 3.3UF 5% 250VDC RADIAL |
4,607 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
BFC237344335CAP FILM 3.3UF 5% 250VDC RADIAL |
8,931 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
MKT1822615015VCAP FILM 15UF 10% 100VDC RADIAL |
4,832 |
|
Datasheet |
Radial | 15 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.650" W (31.50mm x 16.50mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
SNMPW026807BB8KS00SNUBBER MKP 0.068 F 3000 VDC 11X |
3,369 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW026807BD2KSSDSNUBBER MKP 0.068 F 3000 VDC 11X |
8,350 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW026807BD4KSSDSNUBBER MKP 0.068 F 3000 VDC 11X |
5,644 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW026807BFSKS00SNUBBER MKP 0.068 F 3000 VDC 11X |
9,170 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP383416160JPM2T0CAP FILM 0.16UF 5% 1.6KVDC RAD |
2,919 |
|
Datasheet |
Radial | 0.16 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383416160JPP2T0CAP FILM 0.16UF 5% 1.6KVDC RAD |
9,084 |
|
Datasheet |
Radial | 0.16 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383418160JPI2T0CAP FILM 0.18UF 5% 1.6KVDC RAD |
2,666 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383418160JPM2T0CAP FILM 0.18UF 5% 1.6KVDC RAD |
8,075 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383418160JPP2T0CAP FILM 0.18UF 5% 1.6KVDC RAD |
6,380 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383462100JPI2T0CAP FILM 0.62UF 5% 1KVDC RADIAL |
5,675 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.709" W (41.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383462100JPM2T0CAP FILM 0.62UF 5% 1KVDC RADIAL |
7,236 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.709" W (41.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
940C20P56KCAP FILM 0.56UF 10% 2KVDC AXIAL |
9,156 |
|
Datasheet |
Axial | 0.56 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 1.220" Dia x 2.126" L (31.00mm x 54.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP383416160JPI2T0CAP FILM 0.16UF 5% 1.6KVDC RAD |
6,070 |
|
Datasheet |
Radial | 0.16 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
FKP4T033307H00JSSDFKP 4 0.33 F 1600 VDC 24X45.5X41 |
8,885 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP4T034707H00JSSDFKP 4 0.47 F 1600 VDC 24X45.5X41 |
8,217 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
