Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP385E4681AKPM4T0CAP FILM 0.68UF 1.6KVDC RAD |
9,871 |
|
Datasheet |
Radial - 4 Leads | 0.68 µF | ±10% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E4681AKPP4T0CAP FILM 0.68UF 1.6KVDC RAD |
7,430 |
|
Datasheet |
Radial - 4 Leads | 0.68 µF | ±10% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
DCP4G053007ED4KSC9DC-LINK MKP 4 30.0 F 400 VDC 17X |
5,537 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4G053007ED4KSSDDC-LINK MKP 4 30.0 F 400 VDC 17X |
3,395 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1G045607H00JSC9MKP 10 5.6 F 400 VDC 24X45.5X41. |
6,363 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4F051507G00KSSDMKP 4 15.0 F 250 VDC 20X39.5X41. |
3,633 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

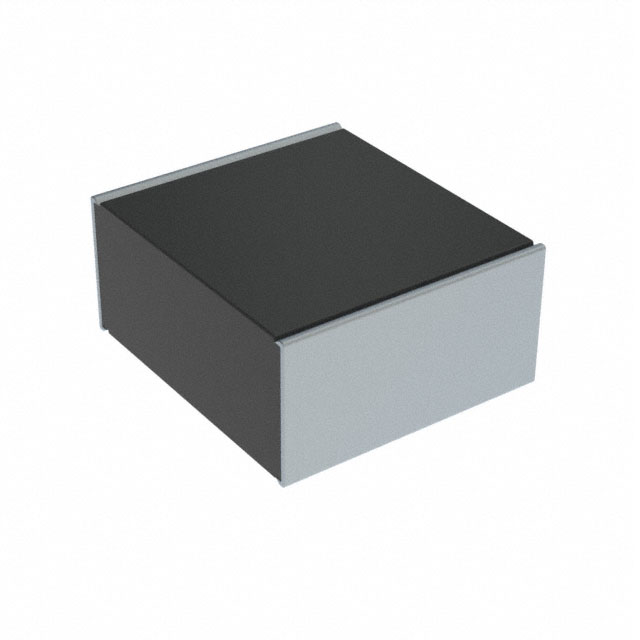

SMDID04220YA00KT00CAP FILM 2.2UF 10% 100VDC 6054 |
5,077 |
|
Datasheet |
6054 (153137 Metric) | 2.2 µF | ±10% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.602" L x 0.539" W (15.30mm x 13.70mm) | 0.287" (7.30mm) | Solder Pads | - | General Purpose | - | - |
|
930C4W1P5K-FCAP FILM 1.5UF 10% 400VDC AXIAL |
4,485 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 25 mOhms | -55°C ~ 105°C | Through Hole | 0.709" Dia x 1.748" L (18.00mm x 44.40mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKP385E56840JPP4T0CAP FILM 6.8UF 5% 400VDC RAD |
5,196 |
|
Datasheet |
Radial - 4 Leads | 6.8 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E56840JPM4T0CAP FILM 6.8UF 5% 400VDC RAD |
2,524 |
|
Datasheet |
Radial - 4 Leads | 6.8 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
BFC237326475CAP FILM 4.7UF 5% 100VDC RADIAL |
3,031 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
BFC247990146CAP FILM 1.8UF 5% 250VDC RADIAL |
5,585 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.453" W (30.00mm x 11.50mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247990245CAP FILM 0.51UF 5% 630VDC RADIAL |
8,832 |
|
Datasheet |
Radial | 0.51 µF | ±5% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.472" W (30.00mm x 12.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247952914CAP FILM 0.91UF 5% 400VDC RADIAL |
9,407 |
|
Datasheet |
Radial | 0.91 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.453" W (30.00mm x 11.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247954914CAP FILM 0.91UF 5% 400VDC RADIAL |
2,541 |
|
Datasheet |
Radial | 0.91 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.453" W (30.00mm x 11.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKP385E4392AJPM4T0CAP FILM 0.39UF 5% 2KVDC RAD |
6,481 |
|
Datasheet |
Radial - 4 Leads | 0.39 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E4392AJPP4T0CAP FILM 0.39UF 5% 2KVDC RAD |
6,785 |
|
Datasheet |
Radial - 4 Leads | 0.39 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385439160JKM2T0CAP FILM 0.39UF 5% 1.6KVDC RAD |
4,480 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385439160JKP2T0CAP FILM 0.39UF 5% 1.6KVDC RAD |
8,048 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
SNFPO131007B3IKS00SNUBBER FKP 0.1 F 1000 VDC 11X22 |
8,798 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
