Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC233844105CAP FILM 1UF 20% 800VDC RADIAL |
6,157 |
|
Datasheet |
Radial | 1 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC238331224CAP FILM 0.22UF 5% 1KVDC RADIAL |
4,805 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|

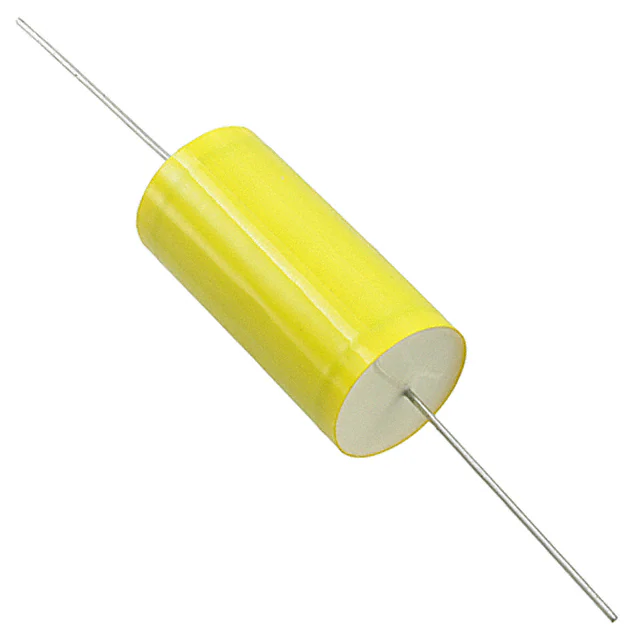

C4GAFUC4500ZA1JCAP FILM 5UF 5% 250VAC AXIAL |
3,554 |
|
Datasheet |
Axial | 5 µF | ±5% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
R60ER53305040KCAP FILM AUTOMOTIVE |
9,356 |
|
Datasheet |
Radial | 33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
F461RP475R630Z4.70UF 630V |
2,117 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B32776E8206J000CAP FILM 20UF 5% 800VDC RADIAL |
4,516 |
|
Datasheet |
Radial | 20 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
DCP4H152507FD4KSSDDC-LINK MKP 4 25.0 F 500 VDC 19X |
6,233 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4H152507FD4KSC9DC-LINK MKP 4 25.0 F 500 VDC 19X |
7,614 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPO131007B3AJS00SNUBBER FKP 0.1 F 1000 VDC 11X22 |
9,374 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPO131007B3IJS00SNUBBER FKP 0.1 F 1000 VDC 11X22 |
6,029 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPO131007B3GJS00SNUBBER FKP 0.1 F 1000 VDC 11X22 |
8,023 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPU022207B3AJS00SNUBBER FKP 0.022 F 2000 VDC 11X |
4,028 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPU022207B3GJS00SNUBBER FKP 0.022 F 2000 VDC 11X |
2,074 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPU022207B3IJS00SNUBBER FKP 0.022 F 2000 VDC 11X |
4,284 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPX021507B3AJS00SNUBBER FKP 0.015 F 4000 VDC 11X |
5,200 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPT024707B3GJS00SNUBBER FKP 0.047 F 1600 VDC 11X |
3,147 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPX021507B3IJS00SNUBBER FKP 0.015 F 4000 VDC 11X |
6,136 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPX021507B3GJS00SNUBBER FKP 0.015 F 4000 VDC 11X |
3,240 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPT024707B3IJS00SNUBBER FKP 0.047 F 1600 VDC 11X |
3,793 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPT024707B3AJS00SNUBBER FKP 0.047 F 1600 VDC 11X |
7,246 |
|
Datasheet |
Rectangular Box | 0.047 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Chassis Mount | 1.634" L x 0.433" W (41.50mm x 11.00mm) | 0.866" (22.00mm) | Screw Terminals | - | High Pulse, DV/DT; Snubber | - | - |
