Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP385E4182BKPM4T0CAP FILM 0.18UF 2.5KVDC RAD |
6,358 |
|
Datasheet |
Radial - 4 Leads | 0.18 µF | ±10% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E4182BKPP4T0CAP FILM 0.18UF 2.5KVDC RAD |
2,892 |
|
Datasheet |
Radial - 4 Leads | 0.18 µF | ±10% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385543040JKM2T0CAP FILM 4.3UF 5% 400VDC RADIAL |
9,388 |
|
Datasheet |
Radial | 4.3 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385543040JKP2T0CAP FILM 4.3UF 5% 400VDC RADIAL |
4,263 |
|
Datasheet |
Radial | 4.3 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385543040JKI2B0CAP FILM 4.3UF 5% 400VDC RADIAL |
7,152 |
|
Datasheet |
Radial | 4.3 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP4J045607L00JSC9MKP 4 5.6 F 630 VDC 28X38X41.5 P |
4,973 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4J045607H00JSC9MKP 4 5.6 F 630 VDC 24X45.5X41.5 |
9,409 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B32526R0476K000CAP FILM 47UF 10% 63VDC RADIAL |
6,126 |
|
Datasheet |
Radial | 47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.472" W (41.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
EFDKA70J456F014BHCAP EFDKA 700VDC 45UF J 4LEADS |
8,405 |
|
Datasheet |
Radial - 4 Leads | 45 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 7.5 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKA60J456F014BHCAP EFDKA 600VDC 45UF J 4LEADS |
5,647 |
|
Datasheet |
Radial - 4 Leads | 45 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 7.5 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
SNMPR032206BD2KS00SNUBBER MKP 0.22 F 1250 VDC 11X2 |
9,021 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4C053906F00JSSDCAP FILM 39UF 5% 63VDC RADIAL |
2,162 |
|
Datasheet |
Radial | 39 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

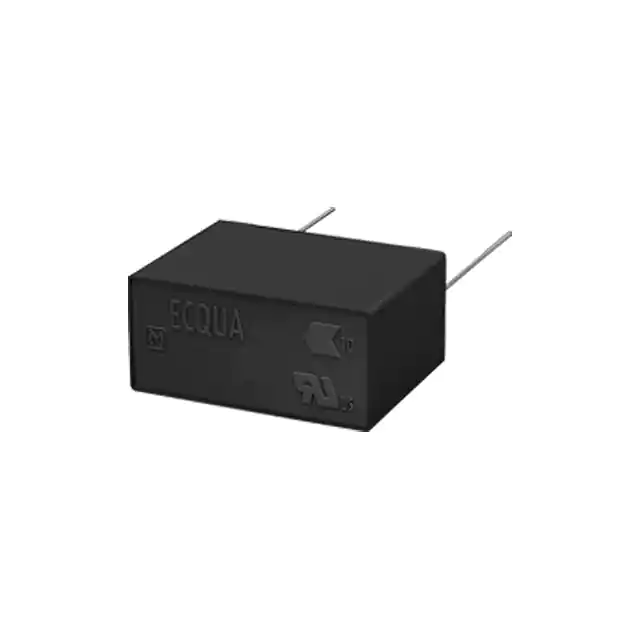

ECQ-UAAF106TACAP FILM 10UF 10% 275VAC RADIAL |
5,750 |
|
Datasheet |
Radial | 10 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 1.102" W (41.00mm x 28.00mm) | 1.654" (42.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
C878AF35125AA0JCAP FILM MOTOR START RUN |
4,263 |
|
Datasheet |
Radial, Can | 12.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
MKP1848S63070JY6BCAP FILM 30UF 5% 700VDC RADIAL |
2,064 |
|
Datasheet |
Radial - 6 Leads | 30 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.535" W (57.50mm x 39.00mm) | 0.945" (24.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
BFC246817565CAP FILM 5.6UF 5% 250VDC RADIAL |
3,532 |
|
Datasheet |
Radial | 5.6 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.591" W (30.00mm x 15.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
MKP1840522634CAP FILM 2.2UF 5% RADIAL |
9,471 |
|
Datasheet |
Radial | 2.2 µF | ±5% | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.693" L x 0.630" W (43.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
BLH226K801B094DC LINK, THB, 85/85, AEC-Q200 |
2,757 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.945" W (42.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
SNMPU031506F4LJS00SNUBBER MKP 0.15 F 2000 VDC 15X2 |
7,375 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031506F4MJS00SNUBBER MKP 0.15 F 2000 VDC 15X2 |
2,604 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
