Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

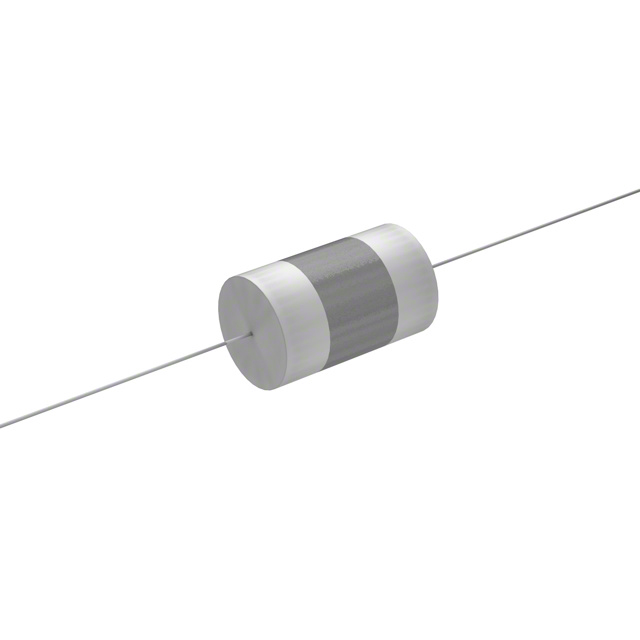

150105J630YFCAP FILM 1UF 5% 630VDC AXIAL |
5,156 |
|
Datasheet |
Axial | 1 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.807" Dia x 1.299" L (20.50mm x 33.00mm) | - | PC Pins | - | General Purpose | - | - |
|
EEC2E106HWNM11CAP FILM 10UF 250VAC RADIAL |
2,645 |
|
Datasheet |
Radial | 10 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.457" L x 0.689" W (37.00mm x 17.50mm) | 1.260" (32.00mm) | PC Pins | 1.346" (34.20mm) | Motor Run | - | - |
|

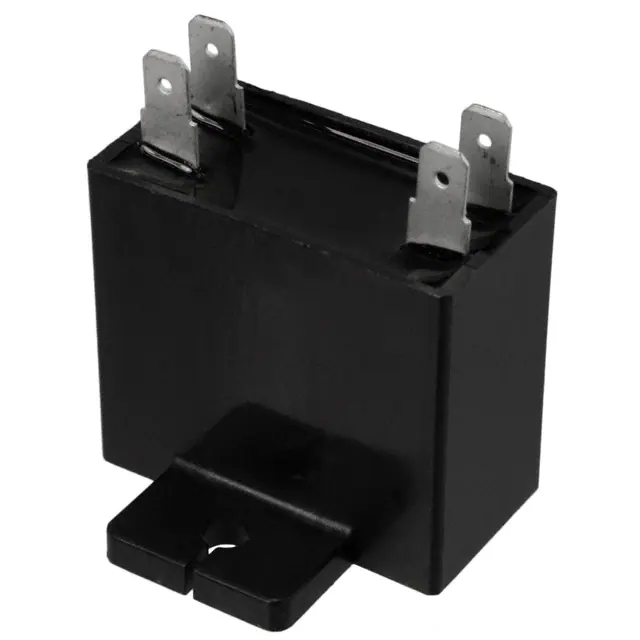

EEC2E106HQA405CAP FILM 10UF 250VAC QC TERM |
3,758 |
|
Datasheet |
Rectangular Box | 10 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.457" L x 0.768" W (37.00mm x 19.50mm) | 1.339" (34.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
|
FLCI6M0166K2CNEW |
8,854 |
|
Datasheet |
Radial | 16 µF | ±10% | 450V | - | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.988" (50.50mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
|
25ST475MC24532CAP FILM 4.7UF 20% 25VDC 1812 |
6,999 |
|
- |
1812 (4532 Metric) | 4.7 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.071" (1.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
35ST335MC24532CAP FILM 3.3UF 20% 35VDC 1812 |
6,432 |
|
- |
1812 (4532 Metric) | 3.3 µF | ±20% | - | 35V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.071" (1.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
B32526R6226K000CAP FILM 22UF 10% 400VDC RADIAL |
9,163 |
|
Datasheet |
Radial | 22 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
MKP18454471041CAP FILM 0.47UF 5% 1KVDC AXIAL |
8,521 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKS4C055607D00JSC9CAP FILM 56UF 5% 63VDC RADIAL |
5,116 |
|
Datasheet |
Radial | 56 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.591" W (41.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
FKP4G043307I00KSSDFKP 4 3.3 F 400 VDC 31X46X41.5 P |
6,018 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4O143907J00KSC9MKP 4 3.9 F 1000 VDC 35X50X41.5 |
4,744 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
21FD3703-FCAP FILM 3UF 10% 370VAC RADIAL |
3,665 |
|
Datasheet |
Radial, Can | 3 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.875" Dia (47.63mm), Lip | 2.880" (73.15mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
|
MKP1841547255CAP FILM 4.7UF 10% 250VDC RADIAL |
2,096 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
BFC238320754CAP FILM 0.75UF 5% 630VDC RADIAL |
5,483 |
|
Datasheet |
Radial | 0.75 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238370433CAP FILM 0.043UF 5% 2.5KVDC RAD |
3,127 |
|
Datasheet |
Radial | 0.043 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
DCP4R251507ID2MSC9DC-LINK MKP 4 15.0 F 1300 VDC 31 |
5,187 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4R251507ID2KSC9DC-LINK MKP 4 15.0 F 1300 VDC 31 |
6,555 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4R251507ID4KSC9DC-LINK MKP 4 15.0 F 1300 VDC 31 |
7,214 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4R251507ID4MSC9DC-LINK MKP 4 15.0 F 1300 VDC 31 |
6,406 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1T033307I00JSC9FKP 1 0.33 F 1600 VDC 31X46X41.5 |
8,389 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
