Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNMPTA31007B1HMS00SNUBBER MKP 0.1 F 1700 VDC 11X22 |
7,711 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F461RO226J250ZCAP FILM POLYPROP RAD |
6,625 |
|
Datasheet |
Radial | 22 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC233840225CAP FILM 2.2UF 20% 800VDC RADIAL |
7,992 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC233844225CAP FILM 2.2UF 20% 800VDC RADIAL |
2,085 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.709" W (31.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
FKP1T033307I00MSC9FKP 1 0.33 F 1600 VDC 31X46X41.5 |
8,452 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
C4ATDBW5100A30JCAP FILM 10UF 5% 250VDC RADIAL |
2,005 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
DCP4N045006G4LMS00DC-LINK MKP 4 5.0 F 900 VDC 17X2 |
6,667 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4N045006G4LKS00DC-LINK MKP 4 5.0 F 900 VDC 17X2 |
9,321 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4N045006G4MKS00DC-LINK MKP 4 5.0 F 900 VDC 17X2 |
8,606 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4N045006G4MMS00DC-LINK MKP 4 5.0 F 900 VDC 17X2 |
5,066 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
935C1W5KCAP FILM 5UF 10% 100VDC AXIAL |
5,512 |
|
Datasheet |
Axial | 5 µF | ±10% | 70V | 100V | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 0.642" Dia x 1.248" L (16.30mm x 31.70mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
SNMPR034706GD2MS00SNUBBER MKP 0.47 F 1250 VDC 17X2 |
2,364 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPM034706GD2MS00SNUBBER MKP 0.47 F 850 VDC 17X29 |
9,284 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4S042006G4LJS00DC-LINK MKP 4 2.0 F 1500 VDC 17X |
5,328 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4S042006G4MJS00DC-LINK MKP 4 2.0 F 1500 VDC 17X |
4,790 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPV031507DB8KS00SNUBBER MKP 0.15 F 2500 VDC 15X2 |
5,966 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

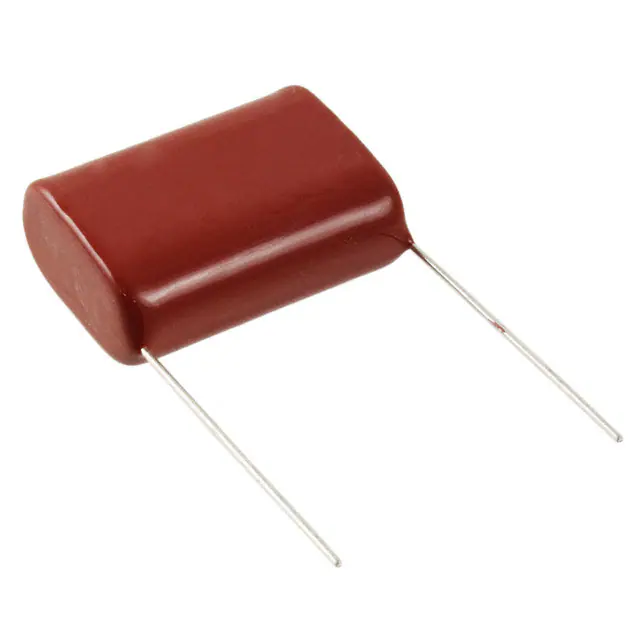

EXH2E106HRPTCAP FILM 10UF 250VAC RADIAL |
13 |
|
Datasheet |
Radial | 10 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.417" L x 0.689" W (36.00mm x 17.50mm) | 1.201" (30.50mm) | PC Pins | 1.280" (32.50mm) | Motor Run | - | - |
|
|
SNMPR034707DB8KS00SNUBBER MKP 0.47 F 1250 VDC 15X2 |
5,462 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPM034707DB8KS00SNUBBER MKP 0.47 F 850 VDC 15X26 |
7,412 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B32656G5505K000CAP FILM 5UF 10% 750VDC RADIAL |
2,673 |
|
Datasheet |
Radial - 4 Leads | 5 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
