Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1847C612355P2MKP 12F 10% 350VAC PITCH 37,5 |
5,685 |
|
Datasheet |
Radial | 12 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
MKP383522063JPM2T0CAP FILM 2.2UF 5% 630VDC RADIAL |
5,753 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383522063JPP2T0CAP FILM 2.2UF 5% 630VDC RADIAL |
9,711 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
SNFPU032207H4AKS00SNUBBER FKP 0.22 F 2000 VDC 24X4 |
5,297 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4L048006GB8MS00DC-LINK MKP 4 8.0 F 800 VDC 17X2 |
3,353 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4L048006GB8KS00DC-LINK MKP 4 8.0 F 800 VDC 17X2 |
6,875 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1847590354P2CAP FILM 9UF 5% 350VAC RADIAL |
6,316 |
|
Datasheet |
Radial | 9 µF | ±5% | 350V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
|
BLH406K601B104DC LINK, THB, 85/85, AEC-Q200 |
8,954 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
DCP4S044007G3AKS00DC-LINK MKP 4 4.0 F 1500 VDC 20X |
7,823 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4S044007G3GKS00DC-LINK MKP 4 4.0 F 1500 VDC 20X |
2,255 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4S044007G1AKS00DC-LINK MKP 4 4.0 F 1500 VDC 20X |
9,806 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

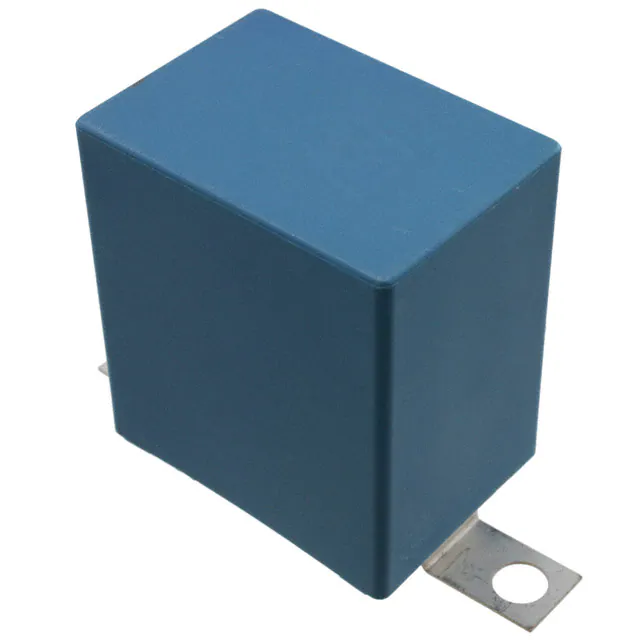

B32656S0155K563CAP FILM 1.5UF 10% 1KVDC SCREW |
8,264 |
|
Datasheet |
Rectangular Box | 1.5 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 2.244" (57.00mm) | Snubber | - | Low ESL |
|
BFC237321825CAP FILM 8.2UF 10% 100VDC RADIAL |
9,905 |
|
Datasheet |
Radial | 8.2 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
B32758G2456K000CAP FILM 45UF 10% 500VDC RADIAL |
6,734 |
|
Datasheet |
Radial - 4 Leads | 45 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 2.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
MKP1848C62250JP2CAP FILM 22UF 5% 500VDC RADIAL |
9,954 |
|
Datasheet |
Radial | 22 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.516" (38.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
BFC238304205CAP FILM 2UF 5% 250VDC RADIAL |
3,569 |
|
Datasheet |
Radial | 2 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC247962474CAP FILM 0.47UF 5% 630VDC RADIAL |
9,984 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.453" W (30.00mm x 11.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247990151CAP FILM 2.7UF 5% 250VDC RADIAL |
5,214 |
|
Datasheet |
Radial | 2.7 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.551" W (30.00mm x 14.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
F462RU395J1K0ZCAP FILM POLYPROP RAD |
2,116 |
|
Datasheet |
Radial | 3.9 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
DCP4H153507GD4JSSDDC-LINK MKP 4 35.0 F 500 VDC 20X |
8,941 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
