Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCP4P047007F2JKS00DC-LINK MKP 4 7.0 F 1100 VDC 19X |
2,571 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4P047007F4AKS00DC-LINK MKP 4 7.0 F 1100 VDC 19X |
9,346 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4P047007F4AMS00DC-LINK MKP 4 7.0 F 1100 VDC 19X |
5,017 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4P047007F4CKS00DC-LINK MKP 4 7.0 F 1100 VDC 19X |
3,050 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4P047007F4CMS00DC-LINK MKP 4 7.0 F 1100 VDC 19X |
6,197 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW033307HD2MSSDSNUBBER MKP 0.33 F 3000 VDC 24X4 |
3,837 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW033307HB8MS00SNUBBER MKP 0.33 F 3000 VDC 24X4 |
6,594 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW033307HFSMS00SNUBBER MKP 0.33 F 3000 VDC 24X4 |
3,460 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW033307HD4MSSDSNUBBER MKP 0.33 F 3000 VDC 24X4 |
3,517 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1848S61550JP2BCAP FILM 15UF 5% 500VDC RADIAL |
5,207 |
|
Datasheet |
Radial | 15 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
B32928A4106M000CAP FILM 10UF 20% 650VDC RADIAL |
5,486 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±20% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
MKP1848H62280KP5CAP FILM 22UF 10% 800VDC RADIAL |
9,807 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
SFP37S6K238BCAP FILM 6UF 10% 370VAC RADIAL |
6,580 |
|
Datasheet |
Radial, Can | 6 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.870" Dia (47.50mm), Lip | 2.500" (63.50mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|

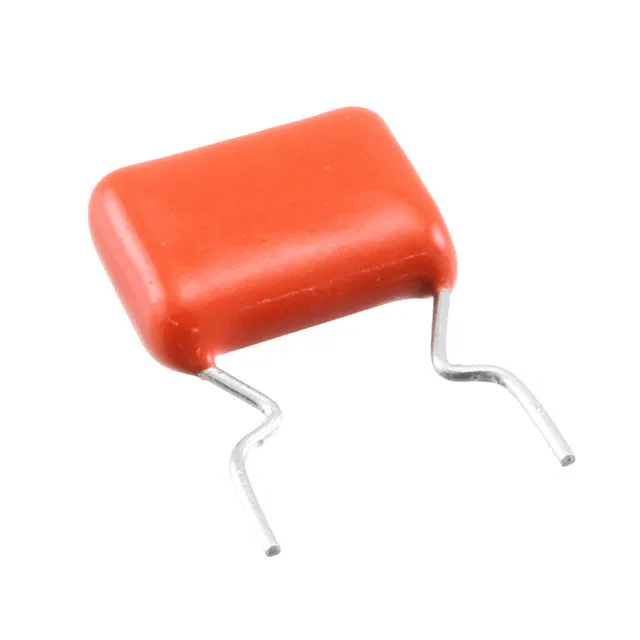

BFC236821685CAP FILM 6.8UF 10% 100VDC RADIAL |
9,479 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.472" W (30.00mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
EFDKA90J406E184DHCAP EFDKA 900VDC 40UF J 4LEADS |
9,653 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 3.9 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.575" W (42.00mm x 40.00mm) | 2.205" (56.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKS70J606E184DHCAP EFDKS 700VDC 60UF J 4LEADS |
9,830 |
|
Datasheet |
Radial - 4 Leads | 60 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.575" W (42.00mm x 40.00mm) | 2.205" (56.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS1CJ256E194DHCAP EFDKS 1200VDC 25UF J 4LEADS |
2,193 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.772" W (42.00mm x 45.00mm) | 2.402" (61.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS1BJ306E194DHCAP EFDKS 1100VDC 30UF J 4LEADS |
3,473 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.772" W (42.00mm x 45.00mm) | 2.402" (61.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS60J606E184DHCAP EFDKS 600VDC 60UF J 4LEADS |
8,787 |
|
Datasheet |
Radial - 4 Leads | 60 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.575" W (42.00mm x 40.00mm) | 2.205" (56.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
FKP4O141007I00KSC9FKP 4 1.0 F 1000 VDC 31X46X41.5 |
7,518 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
