Pressure Sensors, Transducers - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

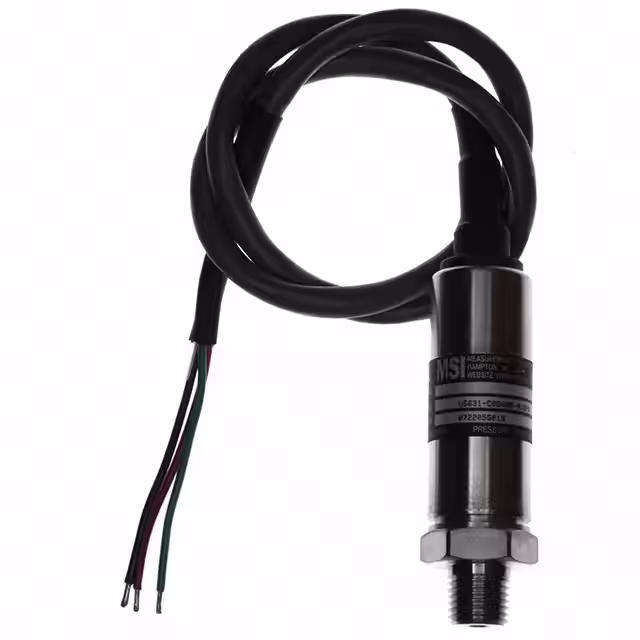

US631-C00005-015PASENSOR 15PSIA 1/4NPT .5-4.5V 2' |
0 |
|
Datasheet |
US600 | Cylinder | - | Obsolete | Industrial Automation | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.1% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output | Cable | 45PSI (310.26kPa) | -50°C ~ 125°C | - |
|

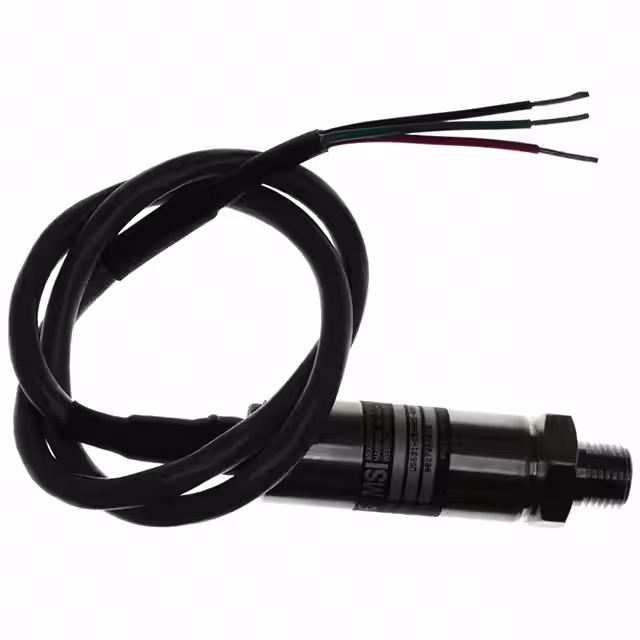

US631-C00005-030PASENSOR 30PSIA 1/4NPT .5-4.5V 2' |
0 |
|
Datasheet |
US600 | Cylinder | - | Obsolete | Industrial Automation | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.1% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output | Cable | 90PSI (620.53kPa) | -50°C ~ 125°C | - |
|
US631-C00005-100PASENSOR 100PSIA 1/4NPT .5-4.5V 2' |
0 |
|
Datasheet |
US600 | Cylinder | - | Obsolete | Industrial Automation | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.1% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output | Cable | 300PSI (2068.43kPa) | -50°C ~ 125°C | - |
|
MLH001MSB02AMLH ALL METAL PRESS SENSE ABS |
0 |
|
Datasheet |
MLH | Cylinder, Metal | Bulk | Obsolete | Industrial Automation | Sealed Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - M12 x 1.5 | Threaded | Amplified Output, Temperature Compensated | - | 435.11PSI (3000kPa) | -40°C ~ 125°C | - |
|
|
MLH001MGB02AMLH ALL METAL PRESS SENSE ABS |
0 |
|
Datasheet |
MLH | Cylinder, Metal | Bulk | Obsolete | Industrial Automation | Vented Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V ~ 6V | Male - M12 x 1.5 | Threaded | Amplified Output, Temperature Compensated | - | 435.11PSI (3000kPa) | -40°C ~ 125°C | - |
|
|
MLH05KPSB06ASENSOR SEALED GAUGE 0-5000 PSI |
0 |
|
Datasheet |
MLH | Cylinder, Metal | Bulk | Obsolete | Industrial Automation | Sealed Gauge | 5000PSI (34473.79kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V ~ 6V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Packard Metripak 150 | 7500PSI (51710.68kPa) | -40°C ~ 125°C | - |
|

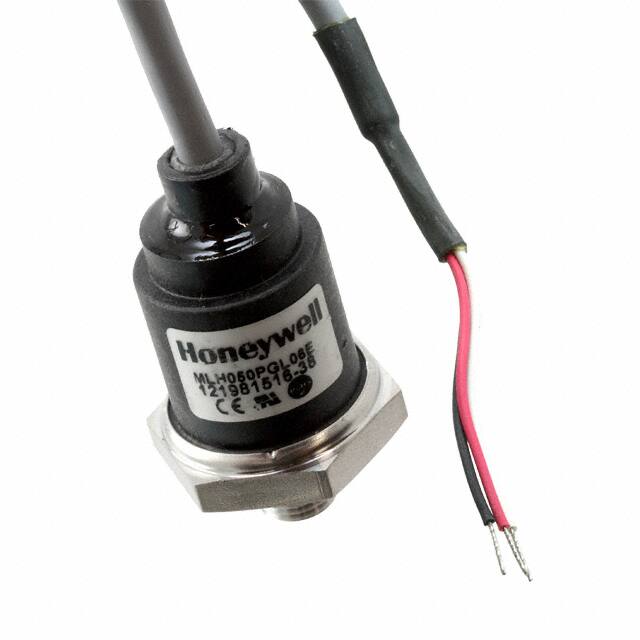

MLH050PGL06EPRESSURE SENSOR |
0 |
|
Datasheet |
MLH | Cylinder, Metal | Bulk | Obsolete | Industrial Automation | Vented Gauge | 50PSI (344.74kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 7V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 1m | 150PSI (1034.21kPa) | -40°C ~ 125°C | - |
|
|
9013FRG22J22Q8PRESSURE SWITCH 230VAC 1HP F +OP |
0 |
|
Datasheet |
9013FR | Module | Bulk | Active | - | Differential | 4PSI ~ 25PSI (27.6kPa ~ 172.4kPa) | DPST-NO | - | ±3% | - | Female - 1/4" (6.35mm) NPS | Threaded | - | Screw Terminal | 219.99PSI (1516.8kPa) | -30°C ~ 70°C | - |
|
|
9013FRG22J19Q8PRESSURE SWITCH 230VAC 1HP F +OP |
0 |
|
Datasheet |
9013FR | Module | Bulk | Active | - | Differential | 4PSI ~ 25PSI (27.6kPa ~ 172.4kPa) | DPST-NO | - | ±3% | - | Female - 1/4" (6.35mm) NPS | Threaded | - | Screw Terminal | 219.99PSI (1516.8kPa) | -30°C ~ 70°C | - |
|
|
SDE5-D10-FP-T14E-P-M8PRESSURE SENSOR |
0 |
|
Datasheet |
SDE5 | Module | Bulk | Active | - | Relative | 145.04PSI (1000kPa) | PNP | - | ±0.3% | 15V ~ 30V | Female - 1/4" (6.35mm) Tube | Threaded | - | Connector | - | 0°C ~ 50°C | - |
|
|
SDE5-D10-NF-Q6E-V-M8PRESSURE SENSOR |
0 |
|
Datasheet |
SDE5 | Module | Bulk | Active | - | Relative | 145.04PSI (1000kPa) | Analog Voltage | 0 V ~ 10 V | ±0.3% | 15V ~ 30V | Female - 0.24" (6mm) Tube | Threaded | - | Connector | - | 0°C ~ 50°C | - |
|
|
SDE5-V1-NF-Q6E-V-M8PRESSURE SENSOR |
0 |
|
Datasheet |
SDE5 | Module | Bulk | Active | - | Relative | -14.5PSI (-100kPa) | Analog Voltage | 0 V ~ 10 V | ±0.3% | 15V ~ 30V | Female - 0.24" (6mm) Tube | Threaded | - | Connector | - | 0°C ~ 50°C | - |
|
|
HPF16770PGDSNFAC01HP PRESSURE SWITCH |
0 |
|
Datasheet |
HP | Cylinder, Threaded | Bulk | Active | Industrial Automation | Sealed Gauge | 1677PSI (11562.5kPa) | SPDT | - | ±2% | - | Male - 9/16" (14.29mm) UNF | Threaded | - | Deutsch, 3 Pin | 10000PSI (68947.57kPa) | -40°C ~ 120°C | - |
|
P51-15-S-UB-I36-4.5OVP-000-000SENSOR 15PSIS 1/8NPT 4.5V OVP |
0 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

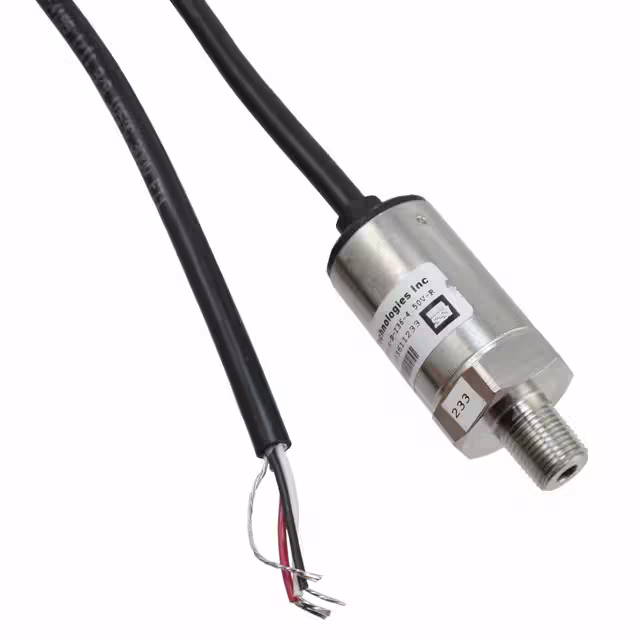

P51-100-S-B-I36-4.5OVP-000-000SENSOR 100PSIS 1/8NPT 4.5V OVP |
0 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-500-S-B-I36-4.5OVP-000-000SENSOR 500PSIS 1/8NPT 4.5V OVP |
0 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

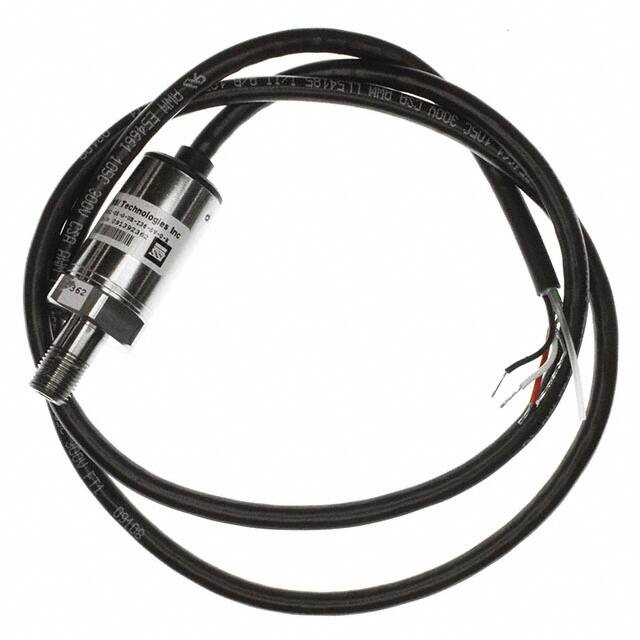

P51-5-G-UB-I36-5V-000-000SENSOR 5 PSIG 1-5 V 1/8-27 NPT |
0 |
|
Datasheet |
MediaSensor™ | Cylinder | Bulk | Active | Industrial Automation | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 1 V ~ 5 V | ±2% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
XMLP100PP730PRESSURE TRANSMITTER - XMLP - 10 |
1 |
|
Datasheet |
XM | Cylinder, Threaded | Box | Active | Industrial Automation | - | 100PSI (689.48kPa) | Analog Voltage | 0 V ~ 10 V | ±0.5% | 12V ~ 33V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 300PSI (2068.43kPa) | -30°C ~ 85°C (TA) | - |
|
XMLP200PD230PRESSURE SENSORS XM, TRANSMITTER |
0 |
|
Datasheet |
XM | Cylinder, Threaded | Box | Active | - | - | 100PSI (689.48kPa) | Analog Current | 4 ~ 20 mA | ±0.5% | 12V ~ 24V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 600PSI (4136.85kPa) | -30°C ~ 85°C | - |
|
XMLP040BD290ELECTRONIC PRESSURE SENSORS, PRE |
0 |
|
Datasheet |
XM | Cylinder, Threaded | Box | Active | Industrial Automation | - | 580.15PSI (4000kPa) | Analog Current | 4 ~ 20 mA | ±0.5% | 7V ~ 33V | Female - 7/16" (11.11mm) UNF-2B | Threaded | - | Connector | 1740.45PSI (12000kPa) | -30°C ~ 85°C (TA) | - |
