Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
602.3000.049SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
M49 | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 3A (AC), 2A (DC) | 240 V | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
602.3000.048SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
M49 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 240 V | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

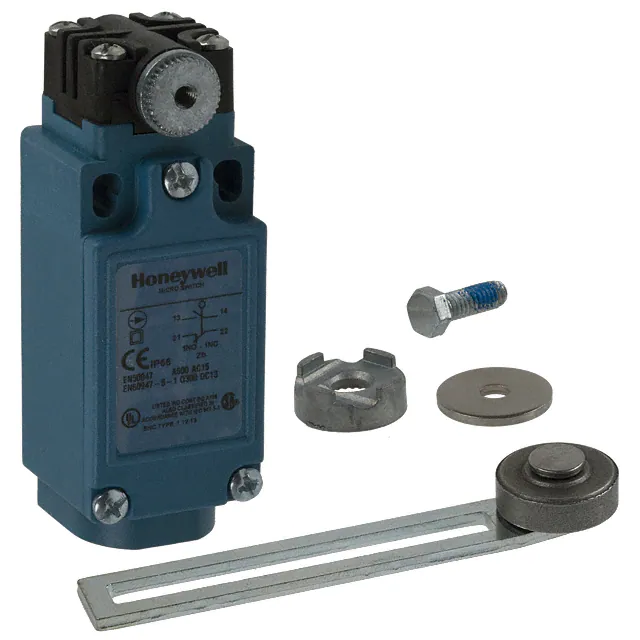

GLCA01A2BSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
|
D4NS-4AFK1SWITCH SNAP ACTION 1NC/1NO |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4N-4D2HRSWITCH SNAP ACT 3PST-NC 10A 120V |
0 |
|
Datasheet |
D4N-R | Bulk | Obsolete | 3PST-NC | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 551gf | - | - | 18° | - | - | -30°C ~ 70°C |
|
|
D4N-4D80SWITCH SNAP ACT 3PST-NC 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | 3PST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 153gf | - | - | 15° | - | - | -30°C ~ 70°C |
|
|
D4N-6C2GSWITCH SNAP ACTION 3PST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 459gf | 41gf | - | 18° | - | 40° | -30°C ~ 70°C |
|
|
D4N-6D2GSWITCH SNAP ACT 3PST-NC 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | 3PST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 459gf | 41gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
|
D4N-8C2GSWITCH SNAP ACTION 3PST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 459gf | 41gf | - | 18° | - | 40° | -30°C ~ 70°C |
|
|
D4N-9162SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
|
D4N-9172SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.063" (27.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
|
D4N-9262SWITCH SNAP ACT DPST-NC 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
|
D4B-1A71NSWITCH SNAP ACT DPST-NC 10A 120V |
0 |
|
Datasheet |
D4B-N | Bulk | Obsolete | DPST-NC | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1900gf | 200gf | 1.890" (48.0mm) | 0.080" (2.0mm) | - | 0.197" (5.0mm) | -40°C ~ 80°C |
|
|
608.8171.043SWITCH LIMIT DPST 3A 240V |
0 |
|
- |
TI2 | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -30°C ~ 80°C |
|
|
608.8171.016SWITCH LIMIT PLASTIC BODY |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCMD2171L1SWITCH LIMIT 1.5A 240V METAL |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Off, Off-On | - | - | - | Side Rotary, Fork Lever Lock (Yoke) | - | - | - | - | - | - | - | - | - | - | - |
|

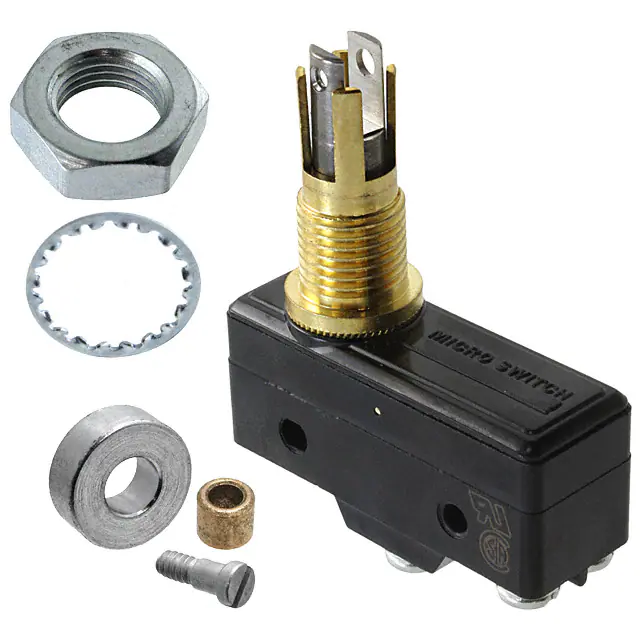

BZ-3YQ69TSWITCH SNAP ACTION SPDT 5A 250V |
1 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 250 V | - | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 454 ~ 737gf | 113gf | 1.703" (43.3mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
|
MCH2711A3SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLCA03A1BSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT (BBM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
|
601.6869.091SWITCH SAFETY INTERLOCK |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
