Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XD6239H331PR-QIC REG LINEAR 3.3V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.39V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239H281PR-QIC REG LINEAR 2.8V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.43V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239D121PR-QIC REG LINEAR 1.2V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.87V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239H291PR-QIC REG LINEAR 2.9V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.9V | - | 0.43V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239D151PR-QIC REG LINEAR 1.5V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | 0.65V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239D271PR-QIC REG LINEAR 2.7V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.7V | - | 0.43V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239H151PR-QIC REG LINEAR 1.5V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | 0.65V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239D281PR-QIC REG LINEAR 2.8V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.43V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239D291PR-QIC REG LINEAR 2.9V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.9V | - | 0.43V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239D331PR-QIC REG LINEAR 3.3V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.39V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239H181PR-QIC REG LINEAR 1.8V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.49V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239H121PR-QIC REG LINEAR 1.2V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.87V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239H131PR-QIC REG LINEAR 1.3V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.3V | - | 0.87V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239D301PR-QIC REG LINEAR 3.0V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.39V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239D131PR-QIC REG LINEAR 1.3V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.3V | - | 0.87V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239H251PR-QIC REG LINEAR 2.5V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.43V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239H301PR-QIC REG LINEAR 3.0V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.39V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
XD6239D251PR-QIC REG LINEAR 2.5V 300MA |
0 |
|
Datasheet |
XD6239 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.43V @ 300mA | 300mA | 355 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|

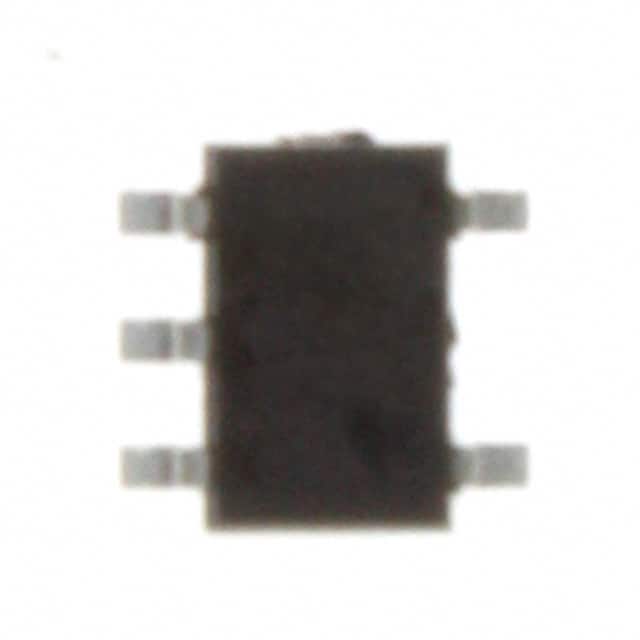

NJM2860F3-25-TE1IC REG LINEAR 2.5V 100MA SC88A |
0 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 2.5V | - | 0.18V @ 60mA | 100mA | 180 µA | - | 70dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SC-88A |
|
NJM2860F3-47-TE1IC REG LINEAR 4.7V 100MA SC88A |
0 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 4.7V | - | 0.18V @ 60mA | 100mA | 180 µA | - | 70dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SC-88A |
