Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

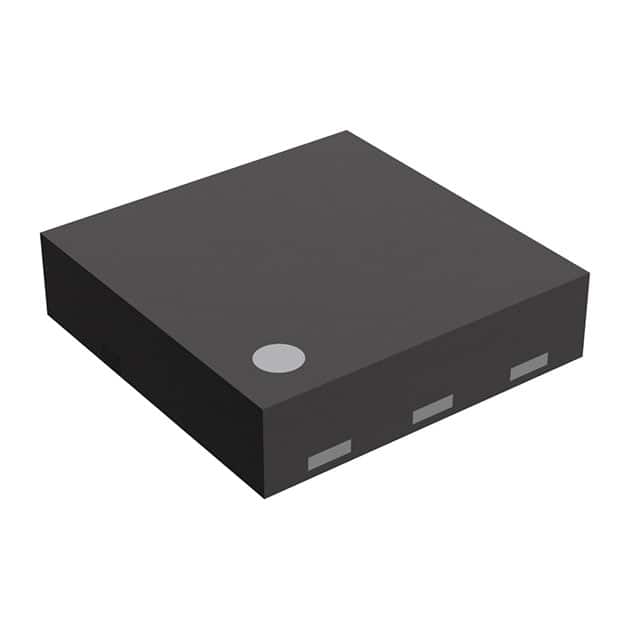

R1191L090B-TRIC REG LINEAR 9V 300MA DFN1616-6 |
0 |
|
Datasheet |
R1191x | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 9V | - | 1V @ 300mA | 300mA | 100 µA | - | 60dB (1kHz) | Enable | Over Temperature, Reverse Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | DFN1616-6 |
|
|
R1191L090D-TRIC REG LINEAR 9V 300MA DFN1616-6 |
0 |
|
Datasheet |
R1191x | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 9V | - | 1V @ 300mA | 300mA | 100 µA | - | 60dB (1kHz) | Enable | Over Temperature, Reverse Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | DFN1616-6 |
|
|
R1191L120B-TRIC REG LIN 12V 300MA DFN1616-6 |
0 |
|
Datasheet |
R1191x | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 12V | - | 0.6V @ 300mA | 300mA | 100 µA | - | 60dB (1kHz) | Enable | Over Temperature, Reverse Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | DFN1616-6 |
|
|
R1191L120D-TRIC REG LIN 12V 300MA DFN1616-6 |
0 |
|
Datasheet |
R1191x | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 12V | - | 0.6V @ 300mA | 300mA | 100 µA | - | 60dB (1kHz) | Enable | Over Temperature, Reverse Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | DFN1616-6 |
|
|
R1191L150B-TRIC REG LIN 15V 300MA DFN1616-6 |
0 |
|
Datasheet |
R1191x | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 15V | - | 0.6V @ 300mA | 300mA | 100 µA | - | 60dB (1kHz) | Enable | Over Temperature, Reverse Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | DFN1616-6 |
|
|
R1191L150D-TRIC REG LIN 15V 300MA DFN1616-6 |
0 |
|
Datasheet |
R1191x | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 15V | - | 0.6V @ 300mA | 300mA | 100 µA | - | 60dB (1kHz) | Enable | Over Temperature, Reverse Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | DFN1616-6 |
|
S-1206B12-M3T1GIC REG LINEAR 1.2V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 6.5V | 1.2V | - | 0.81V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B12-M3T2UIC REG LINEAR 1.2V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.2V | - | 0.81V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B13-M3T1GIC REG LINEAR 1.3V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 6.5V | 1.3V | - | 0.73V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B14-M3T1GIC REG LINEAR 1.4V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 6.5V | 1.4V | - | 0.66V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B14-M3T1UIC REG LINEAR 1.4V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.4V | - | 0.66V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B15-M3T1GIC REG LINEAR 1.5V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 6.5V | 1.5V | - | 0.53V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B16-M3T1GIC REG LINEAR 1.6V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 6.5V | 1.6V | - | 0.53V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B16-M3T1UIC REG LINEAR 1.6V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.6V | - | 0.53V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B17-M3T1GIC REG LINEAR 1.7V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 6.5V | 1.7V | - | 0.5V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B17-M3T1UIC REG LINEAR 1.7V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.7V | - | 0.5V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B18-M3T1GIC REG LINEAR 1.8V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.5V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B19-M3T1GIC REG LINEAR 1.9V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 6.5V | 1.9V | - | 0.43V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B1J-M3T1GIC REG LIN 1.85V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 6.5V | 1.85V | - | 0.5V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-1206B1J-M3T1UIC REG LIN 1.85V 250MA SOT23-3 |
0 |
|
Datasheet |
S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.85V | - | 0.5V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
