Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NR1641GY130AE4S1A EQUIPPED WITH LOW POWER MODEU |
0 |
|
- |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.3V | - | 0.635V @ 1A | 1A | 2.5 mA | - | 75dB ~ 85dB (1kHz ~ 100kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN1616-6-GY |
|
S-1313B24-N4T1U3IC REG LINEAR 2.4V 200MA SC82AB |
0 |
|
Datasheet |
S-1313 | SC-82A, SOT-343 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.4V | - | 0.49V @ 100mA | 200mA | 1.35 µA | - | - | Enable | Overcurrent, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82AB |
|
S-1313C14-M5T1U3IC REG LINEAR 1.4V 200MA SOT23-5 |
0 |
|
Datasheet |
S-1313 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.4V | - | 0.99V @ 100mA | 200mA | 1.35 µA | - | - | Enable | Overcurrent, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1313C31-N4T1U3IC REG LINEAR 3.1V 200MA SC82AB |
0 |
|
Datasheet |
S-1313 | SC-82A, SOT-343 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.1V | - | 0.32V @ 100mA | 200mA | 1.35 µA | - | - | Enable | Overcurrent, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82AB |
|
|
S-1313D16-M5T1U3IC REG LINEAR 1.6V 200MA SOT23-5 |
0 |
|
Datasheet |
S-1313 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.6V | - | 0.85V @ 100mA | 200mA | 1.35 µA | - | - | Enable | Overcurrent, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-13R1A16-N4T1U3IC REG LINEAR 1.6V 150MA SC82AB |
0 |
|
Datasheet |
S-13R1 | SC-82A, SOT-343 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.6V | - | 0.48V @ 100mA | 150mA | 1 µA | 9 µA | 70dB (1kHz) | Enable | Overcurrent, Reverse Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82AB |
|
|
S-13R1B40-M5T1U3IC REG LINEAR 4V 150MA SOT23-5 |
0 |
|
Datasheet |
S-13R1 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4V | - | 0.23V @ 100mA | 150mA | 1 µA | 9 µA | 70dB (1kHz) | Enable | Overcurrent, Reverse Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-13R1D21-N4T1U3IC REG LINEAR 2.1V 150MA SC82AB |
0 |
|
Datasheet |
S-13R1 | SC-82A, SOT-343 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.1V | - | 0.28V @ 100mA | 150mA | 1 µA | 9 µA | 70dB (1kHz) | Enable | Overcurrent, Reverse Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82AB |
|
LM337D2TIC REG LIN NEG ADJ 1.5A D2PAK-3 |
0 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | 6 mA | 10 mA | 77dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|

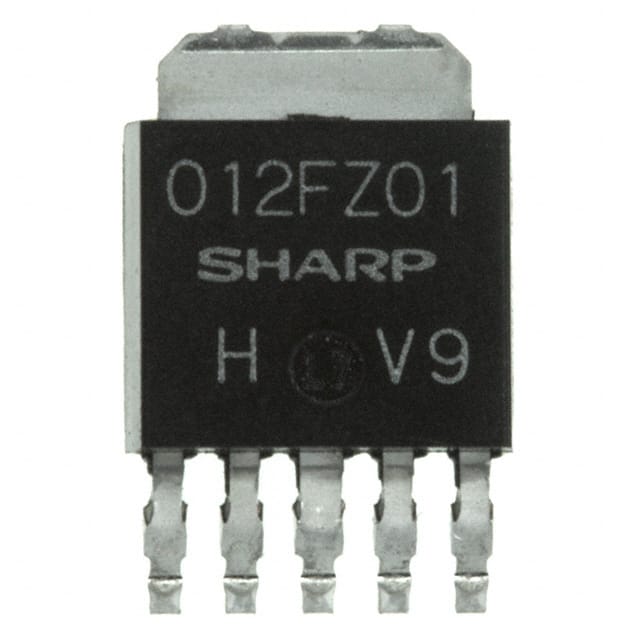

PQ012FZ01ZZHIC REG LINEAR 1.2V 1A SC63 |
0 |
|
Datasheet |
- | TO-252-6, DPAK (5 Leads + Tab) | Tube | Obsolete | Positive | Fixed | 1 | 3.7V | 1.2V | - | - | 1A | - | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SC-63 |
|
MIC5238-1.0BM5-TRIC REG LINEAR 1V 150MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1V | - | 0.5V @ 150mA | 150mA | 20 µA | 2.5 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
MIC5238-1.1BD5-TRIC REG LIN 1.1V 150MA TSOT23-5 |
0 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.1V | - | 0.5V @ 150mA | 150mA | 20 µA | 2.5 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
MIC5238-1.1BM5-TRIC REG LINEAR 1.1V 150MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.1V | - | 0.5V @ 150mA | 150mA | 20 µA | 2.5 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
MIC5238-1.3BD5-TRIC REG LIN 1.3V 150MA TSOT23-5 |
0 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.3V | - | 0.5V @ 150mA | 150mA | 20 µA | 2.5 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
MIC5238-1.3BM5-TRIC REG LINEAR 1.3V 150MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.3V | - | 0.5V @ 150mA | 150mA | 20 µA | 2.5 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
,TO-226_straightlead.jpg)
|
LP2950-02BZIC REG LINEAR 5V 100MA TO92-3 |
0 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.6V @ 100mA | 100mA | 150 µA | 14 mA | - | - | - | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
LP2950-02YZIC REG LINEAR 5V 100MA TO92-3 |
0 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.6V @ 100mA | 100mA | 150 µA | 14 mA | - | - | - | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
S-1740A10-A6T2U4IC REG LINEAR 1V 100MA HSNT6-B |
0 |
|
Datasheet |
S-1740 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | - | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6-B |
|
|
S-1740A17-A6T2U4IC REG LINEAR 1.7V 100MA HSNT6-B |
0 |
|
Datasheet |
S-1740 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.7V | - | 0.06V @ 10mA | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6-B |
|
|
S-1740A18-A6T2U4IC REG LINEAR 1.8V 100MA HSNT6-B |
0 |
|
Datasheet |
S-1740 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.05V @ 10mA | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6-B |
