DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT5503ADC DC CONVERTER 2V 3A |
0 |
|
Datasheet |
Excalibur™ PT5500 | 5-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 5.5V | 2V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
|
URE2415LP-10WR3ISOLATED MODULE DC DC CONVERTER |
23 |
|
Datasheet |
URE_LP-10WR3 (10W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CB, CE, UL | 60950-1; 62368-1 | |
|
|
PT78NR252HDC DC CONVERTER -5.2V 2A |
0 |
|
Datasheet |
PT78NR200 (12W) | 3-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 9V | 15V | -5.2V | - | - | - | 2A | - | - | ITE (Commercial) | OTP, SCP | 0°C ~ 85°C | 78% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
|
PT78NR252VDC DC CONVERTER -5.2V 2A |
0 |
|
Datasheet |
PT78NR200 (12W) | 3-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 9V | 15V | -5.2V | - | - | - | 2A | - | - | ITE (Commercial) | OTP, SCP | 0°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
R2D12-0515/HDC DC CONVERTER +/-15V 2W |
66 |
|
Datasheet |
ECONOLINE R2D (2W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | - | - | - | - | |
|
NRT1000P010T05DC DC CONVERTER 1.2-6V |
47 |
|
Datasheet |
NRT | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 7V | 14V | 1.2 ~ 6V | - | - | - | 10A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 95% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
RW2-0512S/H3/BDC DC CONVERTER 12V 2W |
22 |
|
Datasheet |
ECONOLINE RW2 (2W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 166mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|
|
3DAW_1215D1.5DC-DC INDUSTRIAL |
75 |
|
Datasheet |
3DAW_S&3DAW_D (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
VRB2415LD-30WR3ISOLATED MODULE DC DC CONVERTER |
64 |
|
Datasheet |
VRB_LD-30WR3 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 | |
|
|
VRB2412LD-30WR3ISOLATED MODULE DC DC CONVERTER |
35 |
|
Datasheet |
VRB_LD-30WR3 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 | |
|
|
VRB2409LD-30WR3ISOLATED MODULE DC DC CONVERTER |
34 |
|
Datasheet |
VRB_LD-30WR3 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 3.33A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 86% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 | |
|
|
VRB2405LD-30WR3ISOLATED MODULE DC DC CONVERTER |
28 |
|
Datasheet |
VRB_LD-30WR3 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 | |
|
|
VRB2403LD-30WR3ISOLATED MODULE DC DC CONVERTER |
17 |
|
Datasheet |
VRB_LD-30WR3 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 6A | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 85% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 | |
|
|
VRB2424LD-30WR3ISOLATED MODULE DC DC CONVERTER |
9 |
|
Datasheet |
VRB_LD-30WR3 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 | |
|
RS3-4809S/H3DC DC CONVERTER 9V 3W |
22 |
|
Datasheet |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 9V | - | - | - | 333mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 82% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|

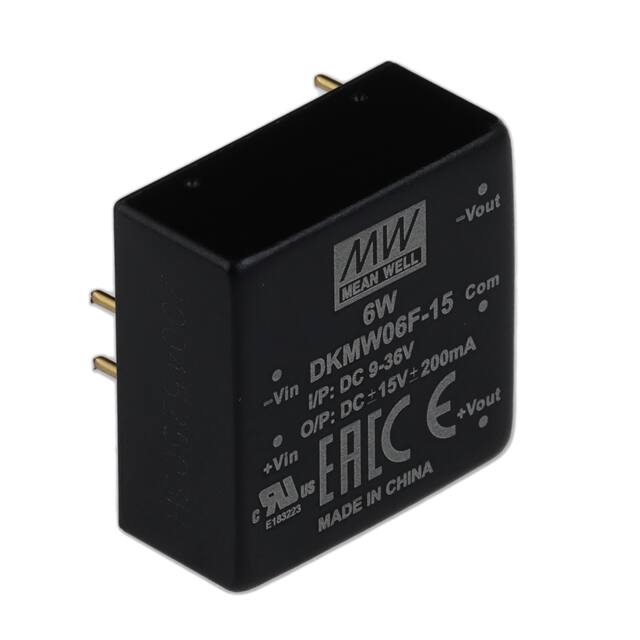

DKMW06F-15DC DC CONVERTER +/-15V 6W |
62 |
|
Datasheet |
DKMW06 (6W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | CE, cURus, EAC | - | |
|
PVB3-D12-S12-DDC DC CONVERTER 12V 3W |
12 |
|
Datasheet |
PVB3-D (3W) | 24-DIP Module, 10 Leads | Bulk | Not For New Designs | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | - | - | |
|
|
PVB3-D12-S5-DDC DC CONVERTER 5V 3W |
58 |
|
Datasheet |
PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
PVB3-D5-S12-DDC DC CONVERTER 12V 3W |
35 |
|
Datasheet |
PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 76% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
PVB3-D5-S15-DDC DC CONVERTER 15V 3W |
34 |
|
Datasheet |
PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 76% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
