DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2567DC DC CONVERTER 9V 36W |
100 |
|
Datasheet |
U3V50 | 8-DIP Module | - | Active | Non-Isolated PoL Module | 1 | 2.9V | 9V | 9V | - | - | - | 3A | 36 W | - | - | - | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
2566DC DC CONVERTER 6V 24W |
95 |
|
Datasheet |
U3V50 | 8-DIP Module | - | Active | Non-Isolated PoL Module | 1 | 2.9V | 6V | 6V | - | - | - | 3A | 24 W | - | - | - | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
2565DC DC CONVERTER 5V 20W |
94 |
|
Datasheet |
U3V50 | 8-DIP Module | - | Active | Non-Isolated PoL Module | 1 | 2.9V | 5V | 5V | - | - | - | 2.5A | 20 W | - | - | - | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|

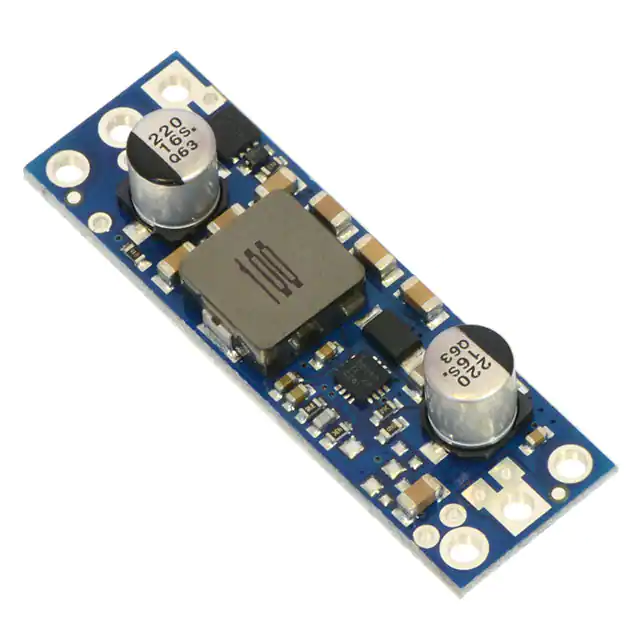

2568DC DC CONVERTER 12V 48W |
49 |
|
Datasheet |
U3V50 | 8-DIP Module | - | Active | Non-Isolated PoL Module | 1 | 2.9V | 12V | 12V | - | - | - | 3A | 48 W | - | - | - | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
PUZ3-D12-S12-DDC DC CONVERTER 12V 3W |
0 |
|
Datasheet |
PUZ3-D (3W) | 24-DIP Module, 8 Leads | Bulk | Not For New Designs | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | - | - | |
|
URA2412LD-20WR3ISOLATED MODULE DC DC CONVERTER |
71 |
|
Datasheet |
URA_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 834mA, 834mA | 20 W | 1.5 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 | |
|
|
URA4812LD-20WR3ISOLATED MODULE DC DC CONVERTER |
64 |
|
Datasheet |
URA_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 834mA, 834mA | 20 W | 1.5 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 | |
|
|
URA2409LD-20WR3ISOLATED MODULE DC DC CONVERTER |
23 |
|
Datasheet |
URA_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 9V | -9V | - | - | 1.111A, 1.111A | 20 W | 1.5 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 | |
|
|
URA4805LD-20WR3ISOLATED MODULE DC DC CONVERTER |
19 |
|
Datasheet |
URA_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 2A, 2A | 20 W | 1.5 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 | |
|
|
URA2415LD-20WR3ISOLATED MODULE DC DC CONVERTER |
15 |
|
Datasheet |
URA_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 1.5 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 | |
|
|
URA2405LD-20WR3ISOLATED MODULE DC DC CONVERTER |
12 |
|
Datasheet |
URA_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 2A, 2A | 20 W | 1.5 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 | |
|
|
URA4815LD-20WR3ISOLATED MODULE DC DC CONVERTER |
9 |
|
Datasheet |
URA_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 1.5 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 | |
|
JCA0312D01DC DC CONVERTER +/-5V 3W |
63 |
|
Datasheet |
JCA (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 75% | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
JCA0305D01DC DC CONVERTER +/-5V 3W |
36 |
|
Datasheet |
JCA (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 74% | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
20DAW4_2412S3DC-DC INDUSTRIAL |
43 |
|
Datasheet |
20DAW4_3 (20W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | cURus | 60950-1 | |
|
ISC0324D15DC DC CONVERTER +/-15V 3W |
28 |
|
Datasheet |
ISC03 (3W) | 16-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 100°C | 80% | - | - | Surface Mount | - | Enable, Active High | - | 62368-1 | |
|
|
URH2424LP-20WR3ISOLATED MODULE DC DC CONVERTER |
28 |
|
Datasheet |
URH_LP-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 833mA | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | CE, EN, UKCA | 60601-1; 62368-1 | |
|
|
URH2415LP-20WR3ISOLATED MODULE DC DC CONVERTER |
24 |
|
Datasheet |
URH_LP-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.333A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CE, EN, UKCA | 60601-1; 62368-1 | |
|
|
URH2405LP-20WR3ISOLATED MODULE DC DC CONVERTER |
20 |
|
Datasheet |
URH_LP-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | CE, EN, UKCA | 60601-1; 62368-1 | |
|
|
URH2412LP-20WR3ISOLATED MODULE DC DC CONVERTER |
16 |
|
Datasheet |
URH_LP-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.666A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | CE, EN, UKCA | 60601-1; 62368-1 |
