DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MGFS402412DC DC CONVERTER 12V 41W |
0 |
|
Datasheet |
MGFS (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 3.4A | 41 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | Enable, Active Low | CE, cURus, DEMKO | - | |
|
PXG-M15-24WD15DC DC CONVERTER +/-15V 15W |
0 |
|
Datasheet |
PXG-M (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | - | - | CE | - | |
|
REM3-2405SW/ADC DC CONVERTER 5V 3W |
1 |
|
Datasheet |
MEDLINE REM3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 84.5% | - | - | Through Hole | - | - | - | - | |
|
THL 25-4811WIDC DC CONVERTER 5V 25W |
0 |
|
Datasheet |
THL 25WI (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 5A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|
RGC4W300W012A-001DC DC CONVERTER 9.6-48V 300W |
0 |
|
Datasheet |
RGC (300W) | 34-DIP Module, 7 Leads | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 5 ~ 28V | - | - | - | 12.5A | 350 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 96% | - | - | Through Hole | - | Enable, Active Low | CE, UKCA | - | |
|
RDF2572S24DC DC CONVERTER 24V 25W |
0 |
|
Datasheet |
RDF25 (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 16V | 160V | 24V | - | - | - | 1.04A | 25 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 85% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
RP10-2415DEDC DC CONVERTER +/-15V 10W |
0 |
|
Datasheet |
POWERLINE RP10-E (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -25°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
40IMX4-1212-8GDC DC CONVERTER +/-12V 4W |
0 |
|
Datasheet |
Melcher IMX4 (4W) | 24-DIP Module | Bulk | Active | Isolated Module, Conformal Coated | 2 | 16.8V | 75V | 12V | -12V | - | - | 170mA, 170mA | 4 W | 1.5 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
JWL4024D12DC DC CONVERTER +/-12V 40W |
0 |
|
Datasheet |
JWL (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.67A, 1.67A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 88% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
PRM48BH480T200B00DC DC CONVERTER 48V 200W |
0 |
|
Datasheet |
VI Chip® PRM® (200W) | Module | Tray | Active | Pre-Regulator Module | 1 | 38V | 55V | 48V | - | - | - | 4.17A | 200 W | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 96.9% | - | - | Surface Mount | - | - | - | - | |
|

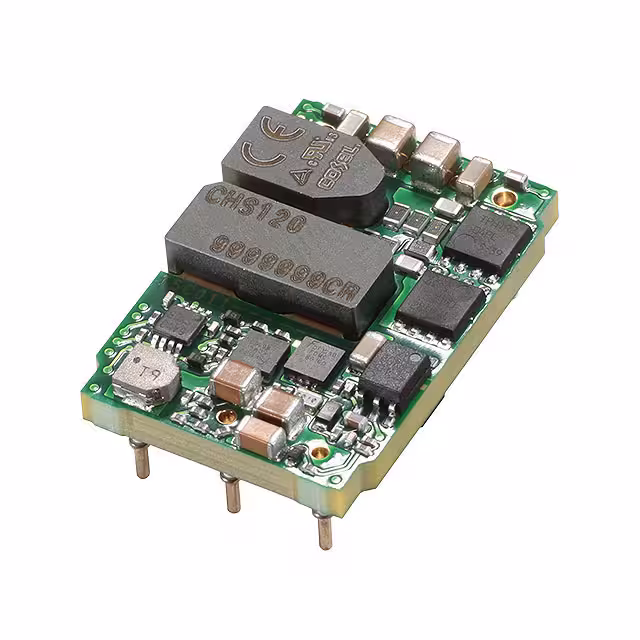

CHS1202412DC DC CONVERTER 12V 120W |
0 |
|
Datasheet |
CHS (120W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91.5% | - | - | Through Hole | Sixteenth Brick | - | CE, cURus, TUV | - | |
|
ECLB60W-48S12DC DC CONVERTER 12V 60W |
0 |
|
Datasheet |
ECLB60W (60W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
BYH05-200S01DC DC CONVERTER 200V 200MW |
0 |
|
Datasheet |
BYH | 24-DIP Module, 5 Leads | Bulk | Active | High Voltage - Isolated Module | 1 | 4.75V | 5.25V | 200V | - | - | - | 1mA | 200 mW | 250 V | ITE (Commercial) | Adjustable Output | -10°C ~ 60°C (With Derating) | - | - | - | Through Hole | - | - | - | - | |
|
Q48SC12042NRDHDC DC CONVERTER 12V 500W |
0 |
|
Datasheet |
Delphi Q48SC (500W) | 16-DIP Module, 1/4 Brick | Tray | Not For New Designs | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 42A | 500 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
CHB100W-24S15DC DC CONVERTER 15V 101W |
0 |
|
Datasheet |
CHB100W (100W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 6.7A | 101 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | Half Brick | Enable, Active High | CE, cURus | 60950-1 | |
|
QSB7548S12DC DC CONVERTER 12V 75W |
0 |
|
Datasheet |
QSB (75W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 86% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
PXF40-24T0512DC DC CONVERTER 5V +/-12V 40W |
0 |
|
Datasheet |
PXF (40W) | 9-DIP Module | Bulk | Active | Isolated Module | 3 | 18V | 36V | 5V | 12V | -12V | - | 6A, 400mA, 400mA | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C | 87% | - | - | Through Hole | - | - | - | - | |
|
Q015-5DC DC CONVERTER 150V 500MW |
0 |
|
Datasheet |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 150V | - | - | - | 3.333mA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
Q02-24DC DC CONVERTER 200V 500MW |
0 |
|
Datasheet |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 24V | 200V | - | - | - | 2.5mA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
Q02-5DC DC CONVERTER 200V 500MW |
0 |
|
Datasheet |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 200V | - | - | - | 2.5mA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | - | - | Through Hole | - | - | - | 62368-1 |
