DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMJ0515SACDC DC CONVERTER 15V 1W |
0 |
|
Datasheet |
NMJ (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 71% | - | - | Through Hole | - | - | - | - | |
|
EC3SAW-24S33HPDC DC CONVERTER 3.3V 2.31W |
3 |
|
Datasheet |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 700mA | 2.31 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | CE, UL | - | |
|
SUS1R51215BDC DC CONVERTER 15V |
5 |
|
Datasheet |
SUS (1.5W) | 5-SMD Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 100mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Surface Mount | - | - | - | - | |
|
SUS1R54805CDC DC CONVERTER 5V |
2 |
|
Datasheet |
SUS (1.5W) | 5-DIP Module | Box | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 300mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | - | - | - | - | |
|
EC3AW11HDC DC CONVERTER 5V 3W |
5 |
|
Datasheet |
EC3AW (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | - | - | Through Hole | - | - | CE | - | |
|

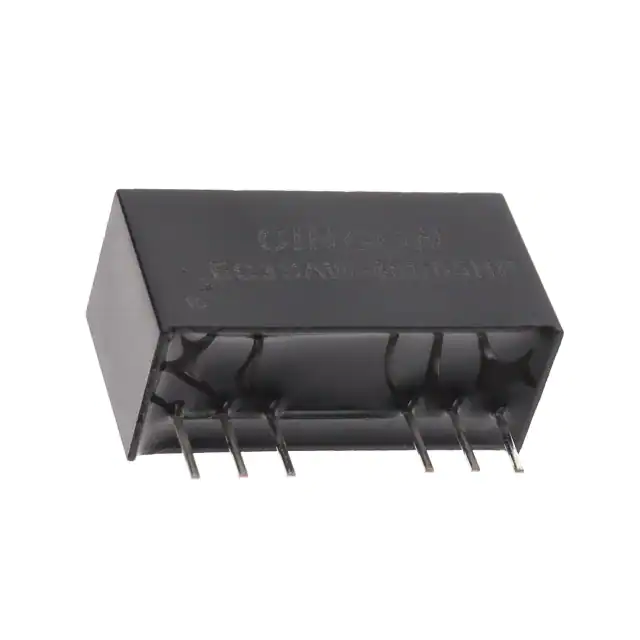

EC3SAW-48D05HPDC DC CONVERTER +/-5V 3W |
4 |
|
Datasheet |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | CE, UL | - | |
|

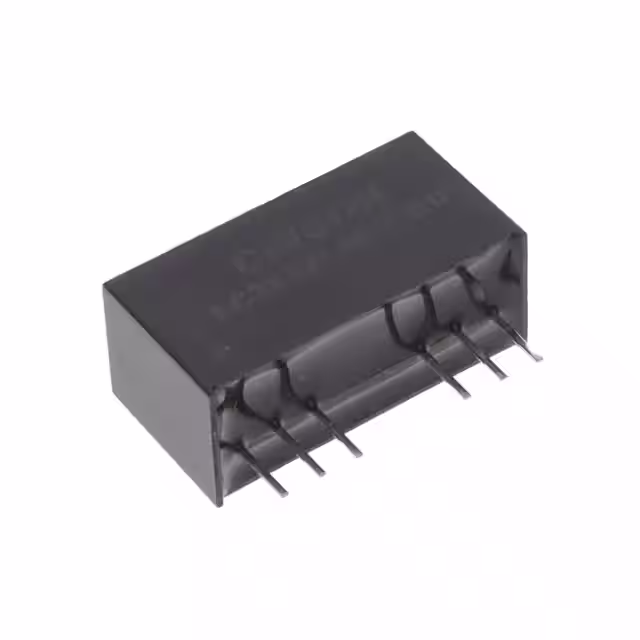

EC3SAW-48D12HPDC DC CONVERTER +/-12V 3W |
0 |
|
Datasheet |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | CE, UL | - | |
|
R-78C15-1.0/X9DC DC CONVERTER 15V 15W |
5 |
|
Datasheet |
INNOLINE R-78C-1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 18V | 42V | 15V | - | - | - | 1A | 15 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | - | - | EAC | - | |
|
CCG1R5-12-05SFDC DC CONVERTER 5V 1.5W |
2 |
|
Datasheet |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 300mA | 1.5 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 79% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 | |
|
|
EC3AW12HDC DC CONVERTER 12V 3W |
4 |
|
Datasheet |
EC3AW (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 77% | - | - | Through Hole | - | - | CE | - | |
|
MGFS1R54815DC DC CONVERTER 15V 1.5W |
2 |
|
Datasheet |
MGFS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 76V | 15V | - | - | - | 100mA | 1.5 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - | |
|
|
MGFS1R52412DC DC CONVERTER 12V 1.6W |
0 |
|
Datasheet |
MGFS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 130mA | 1.6 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - | |
|

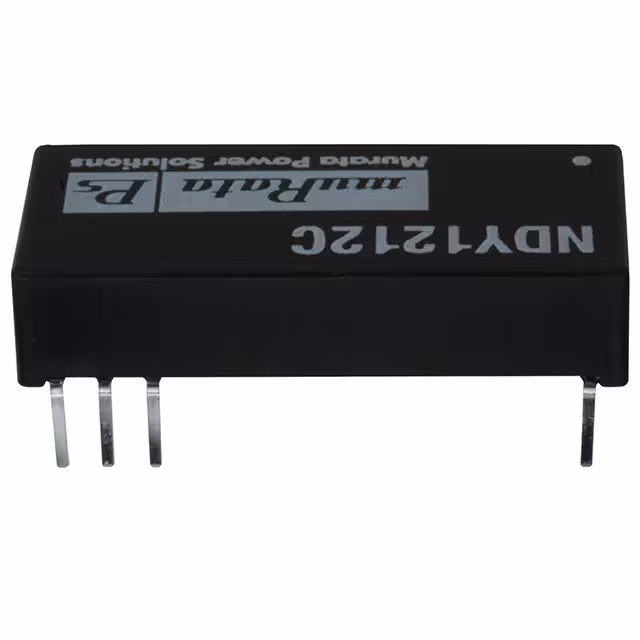

NDY1212CDC DC CONVERTER 12V 3W |
5 |
|
Datasheet |
NDY (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
URB2403YMD-6WR3DC DC CONVERTER 3.3V 5W |
0 |
|
Datasheet |
URA_YMD-6WR3 (6W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.5A | 5 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | CB, CE, cURus | - | |
|
PDQ2-D5-S3-SDC DC CONVERTER 3.3V 2W |
1 |
|
Datasheet |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 500mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 73% | - | - | Through Hole | - | Enable, Active Low | EN | 55032 Class A | |
|
R2D-0509DC DC CONVERTER +/-9V 2W |
0 |
|
Datasheet |
ECONOLINE R2D (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | - | - | - | - | |
|
|
PDQ2-D24-S5-SDC DC CONVERTER 5V 2W |
0 |
|
Datasheet |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | - | Enable, Active Low | EN | 55032 Class A | |
|
IZ2403SADC DC CONVERTER 3.3V 3W |
0 |
|
Datasheet |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 700mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 74% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 | |
|
EC4SAW-24D12HNDC/DC CONVERTER |
0 |
|
Datasheet |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active Floating | CE | - | |
|
|
URA4805YMD-6WR3DC DC CONVERTER +/-5V 6W |
0 |
|
Datasheet |
URA_YMD-6WR3 (6W) | 5-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | CB, CE, cURus | - |
